Advanced Cloud Integration for Odoo | Multi-Cloud Sync Engine | Odoo Cloud Storage
167.38 €
167.38 €
-
Odoo Version
Multi-Cloud Integration
Odoo Multi-Cloud Integration is a centralized, two-way synchronization engine between Odoo attachments and external cloud storage providers such as Google Drive, Dropbox, Nextcloud, and Amazon S3. It coordinates attachments, sync queues, smart folder rules, OAuth2 credentials, and a desktop-style OWL file manager.
CoreCapabilities
A centralized aggregator designed to bundle and connect cloud storage backends
Multi-Provider Cloud Integration
Bundles Google Drive, Dropbox, Nextcloud, and Amazon S3 into a single installation. Each cloud platform connects side-by-side and shares a unified orchestration layer to coordinate attachments.
Transactional Queue Processing
Background jobs handle upload, download, delete, rename, move, and copy operations with retry tracking, row-level locking, and safe savepoints for partial failure recovery.
Cloud Provider Registry
Manage multiple provider records with OAuth2 credentials, root folder metadata, sync state, and connection health fields.
Smart Folder Rules
Map Odoo models to dynamic folder hierarchies using template expressions and parent rules.
OWL-based File Manager
Provide a desktop-style file browsing experience with a folder tree, file grid, action bar, and persistent state across reloads.
Attachment Widget Enhancements
Add drag-and-drop cloud-aware attachment handling to chatter and form views so users can sync files without leaving their record.
Portal Sharing
Generate secure tokenized share links for files and folders with optional upload, folder navigation, and invitation email workflows.
Sync Status Tracking
Track pending, synced, failed, and conflict-style outcomes through logs, queue counters, and provider-level statistics.
Plugin-Friendly Architecture
Provider modules extend the base engine through inherited model hooks and dispatcher methods, keeping API-specific logic separate from the orchestration layer and making new connectors easier to add.
Feature Deep Dive
Explore the engine that powers cloud storage sync workflows
Google Drive Integration Configuration
Configure Google Drive API integration step-by-step to sync Odoo files with your Google Drive space.

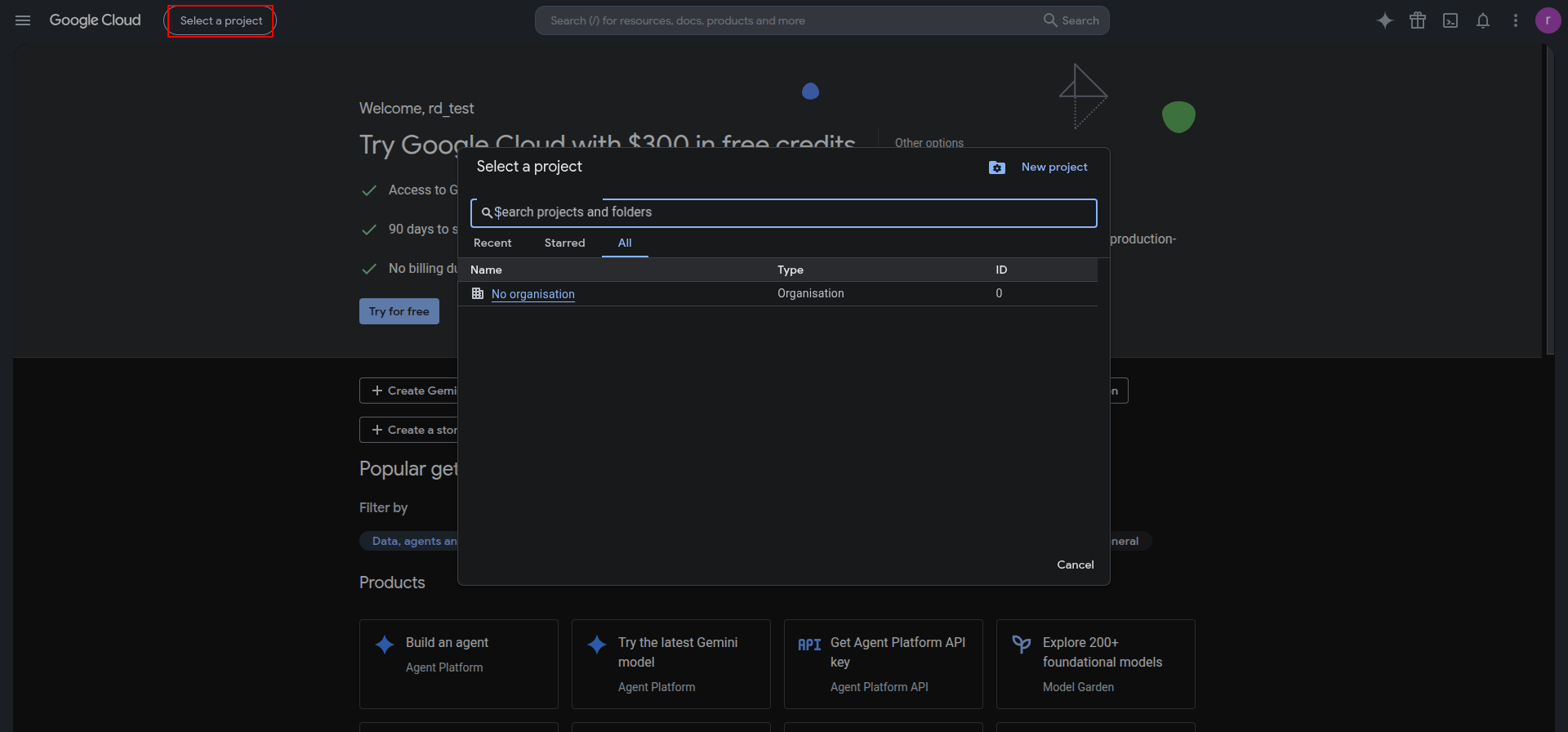

Open the Google Cloud Console and initiate a new project to register Odoo.

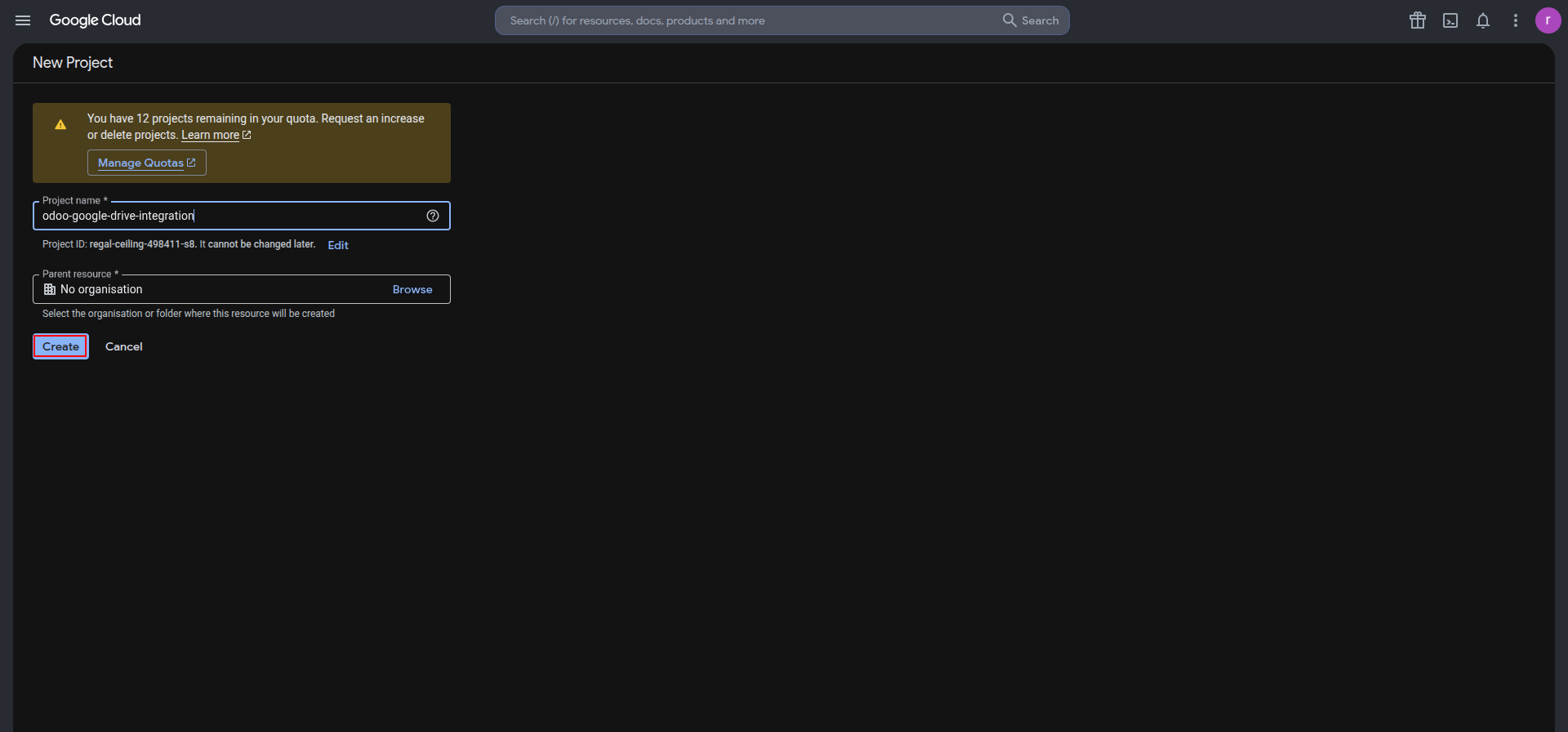

Define your project name and organization settings in the Google Cloud Console.

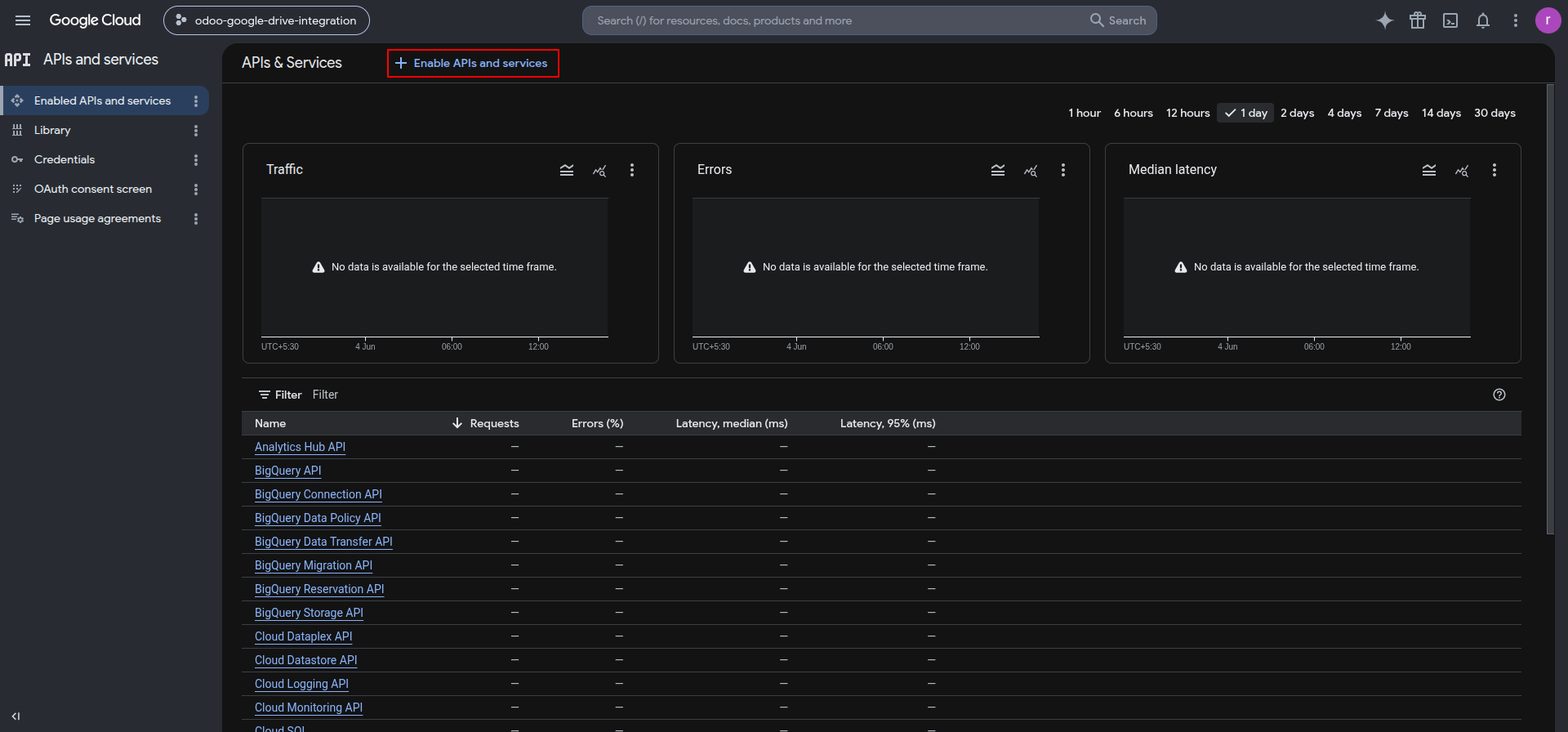

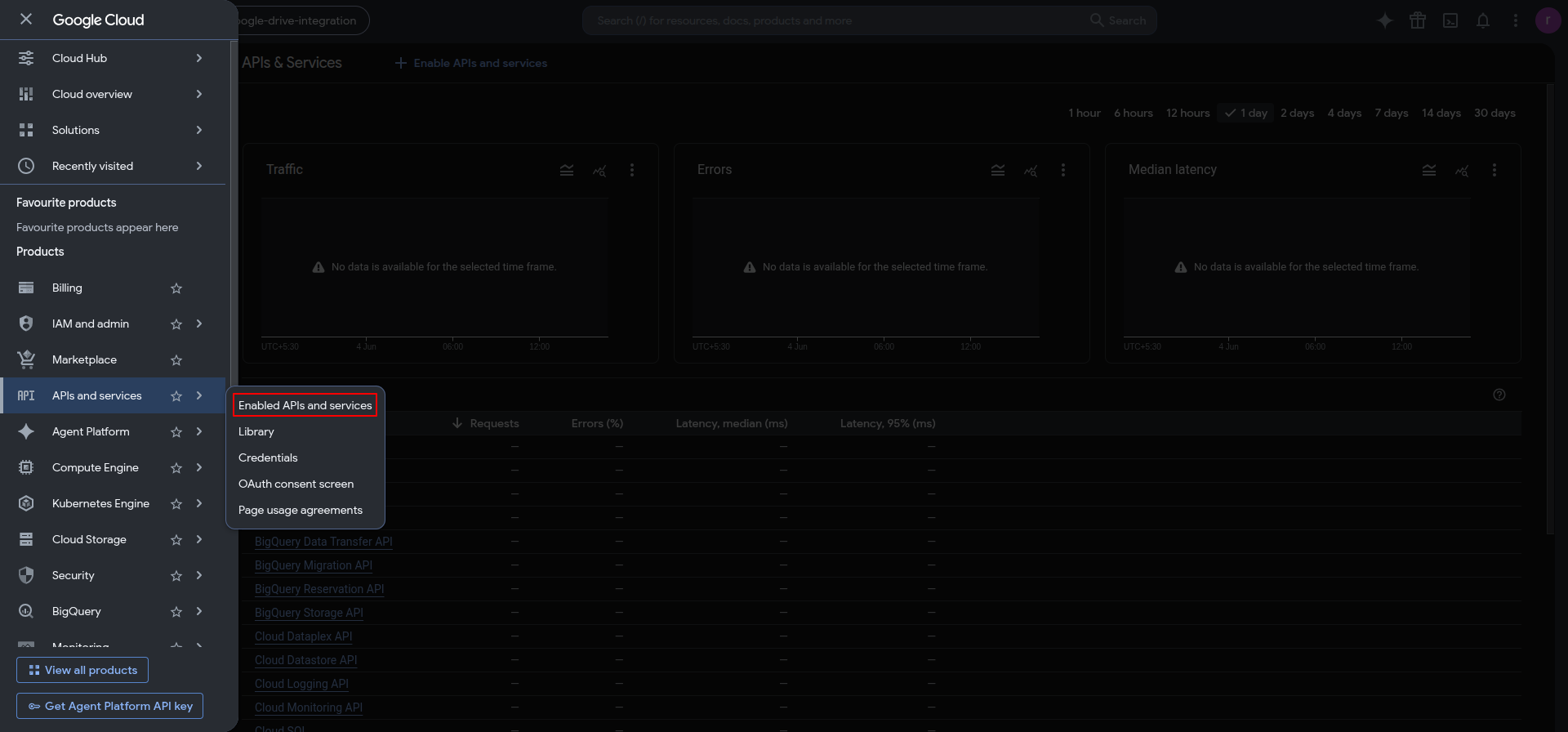

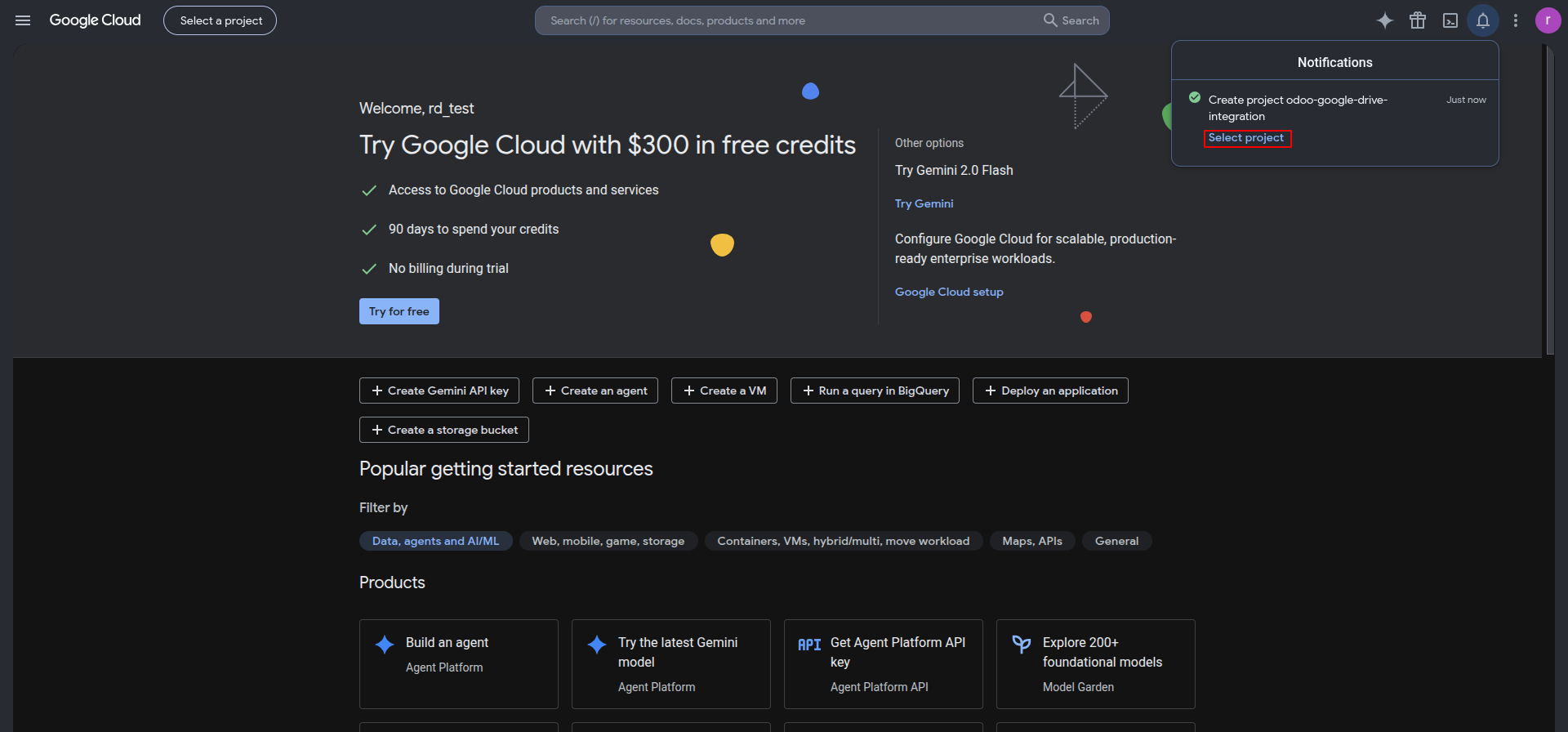

Navigate to the Google Cloud Library page to enable the Google Drive API.

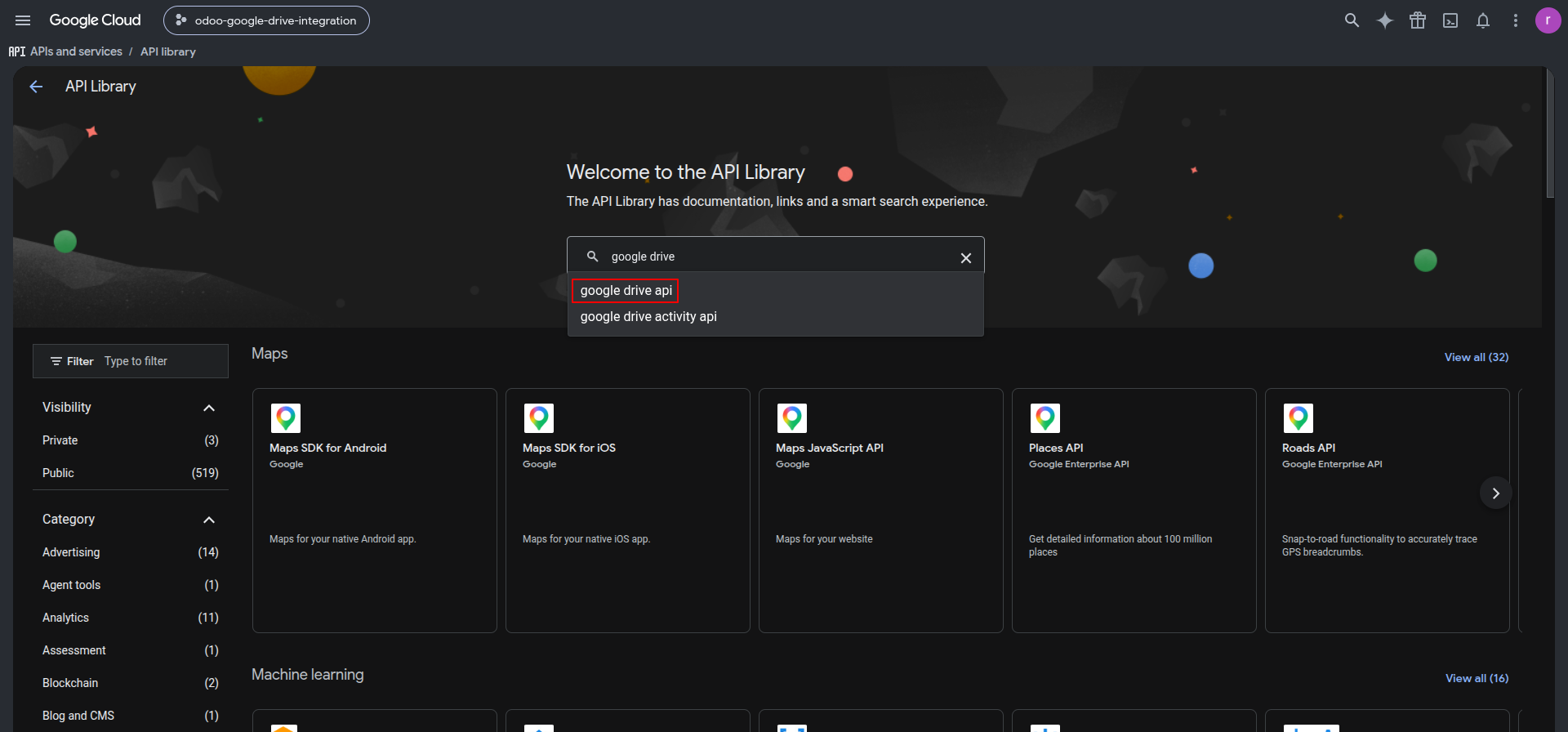

Search for 'Google Drive API' in the API library search bar.

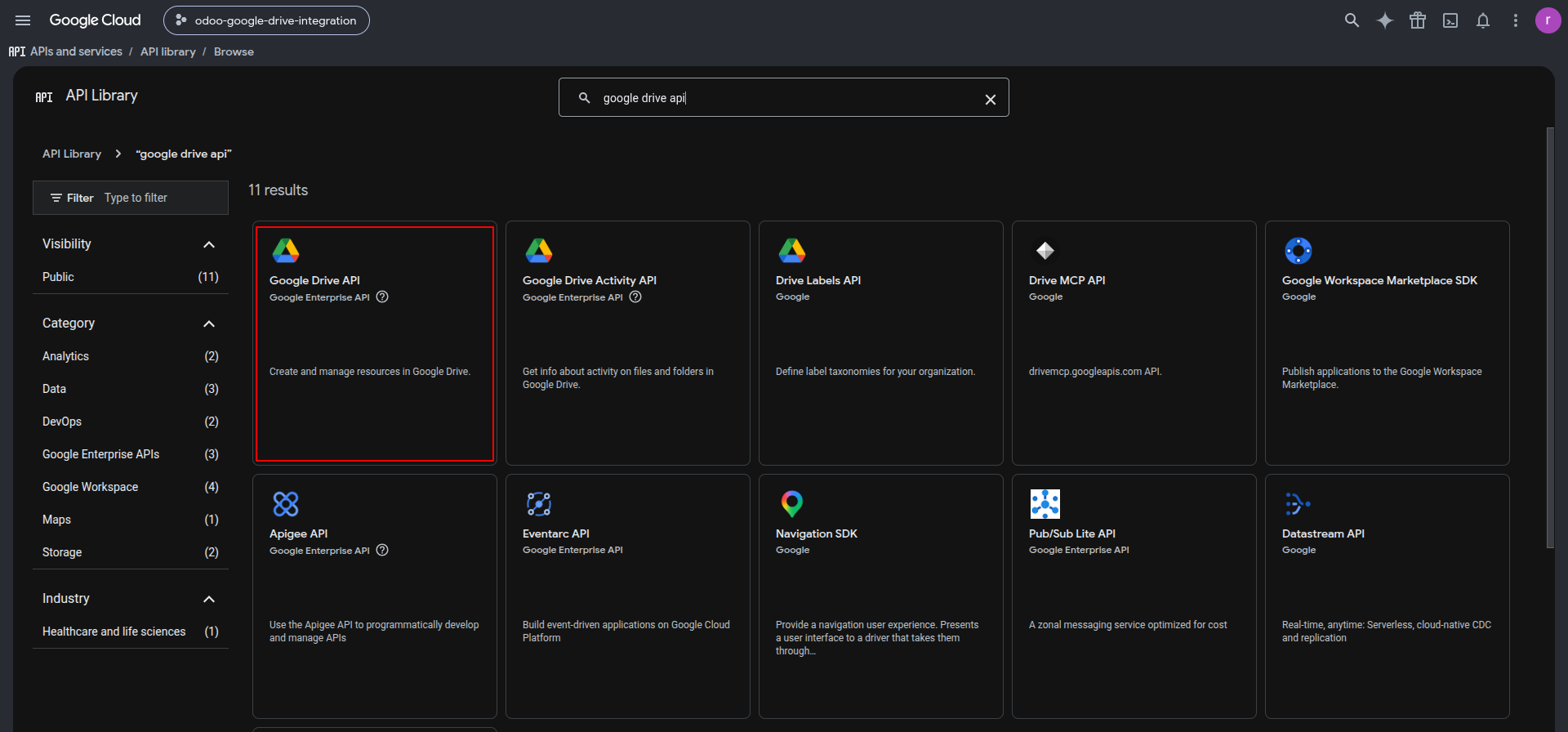

Select the Google Drive API service from the search results.

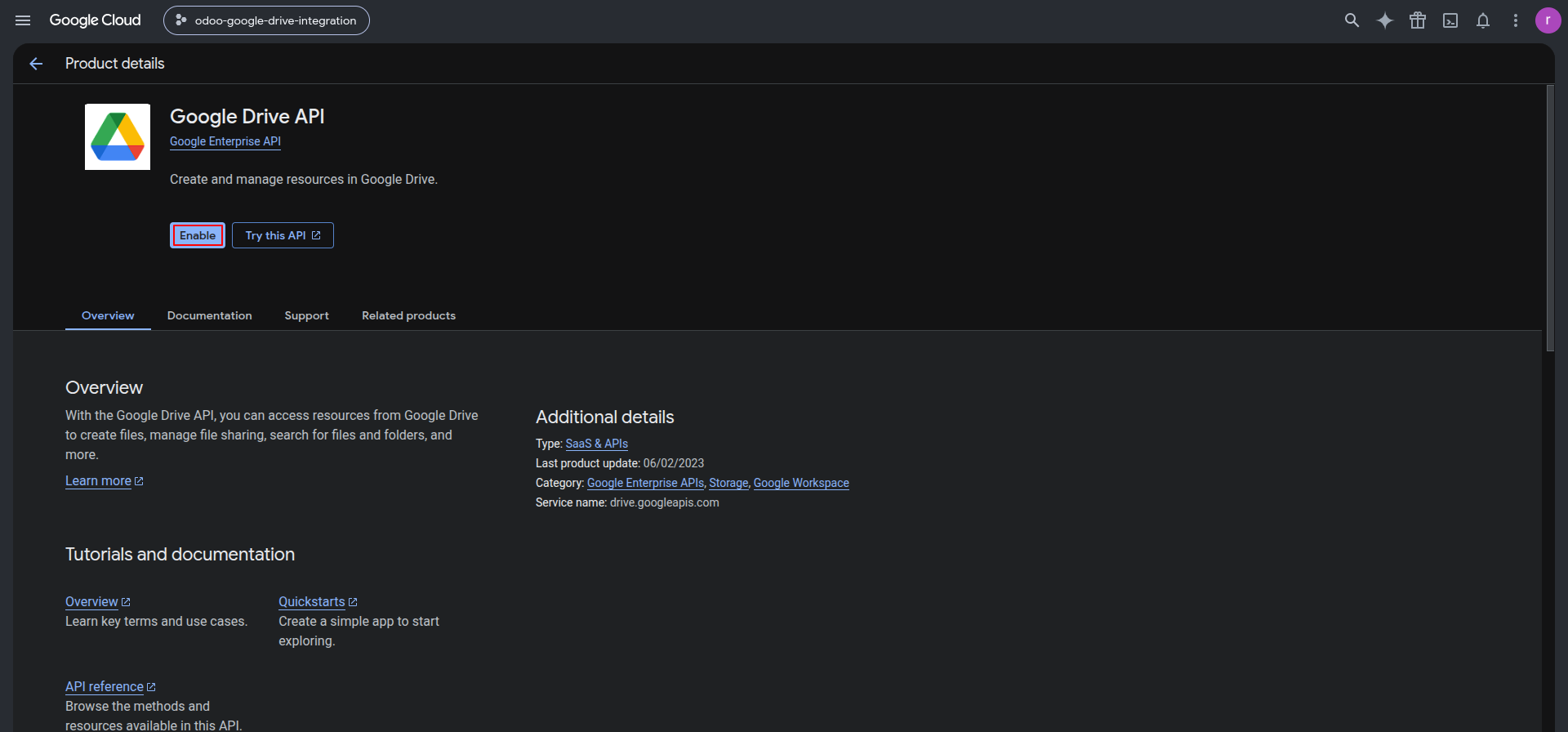

Click 'Enable' to activate Google Drive API for your project.

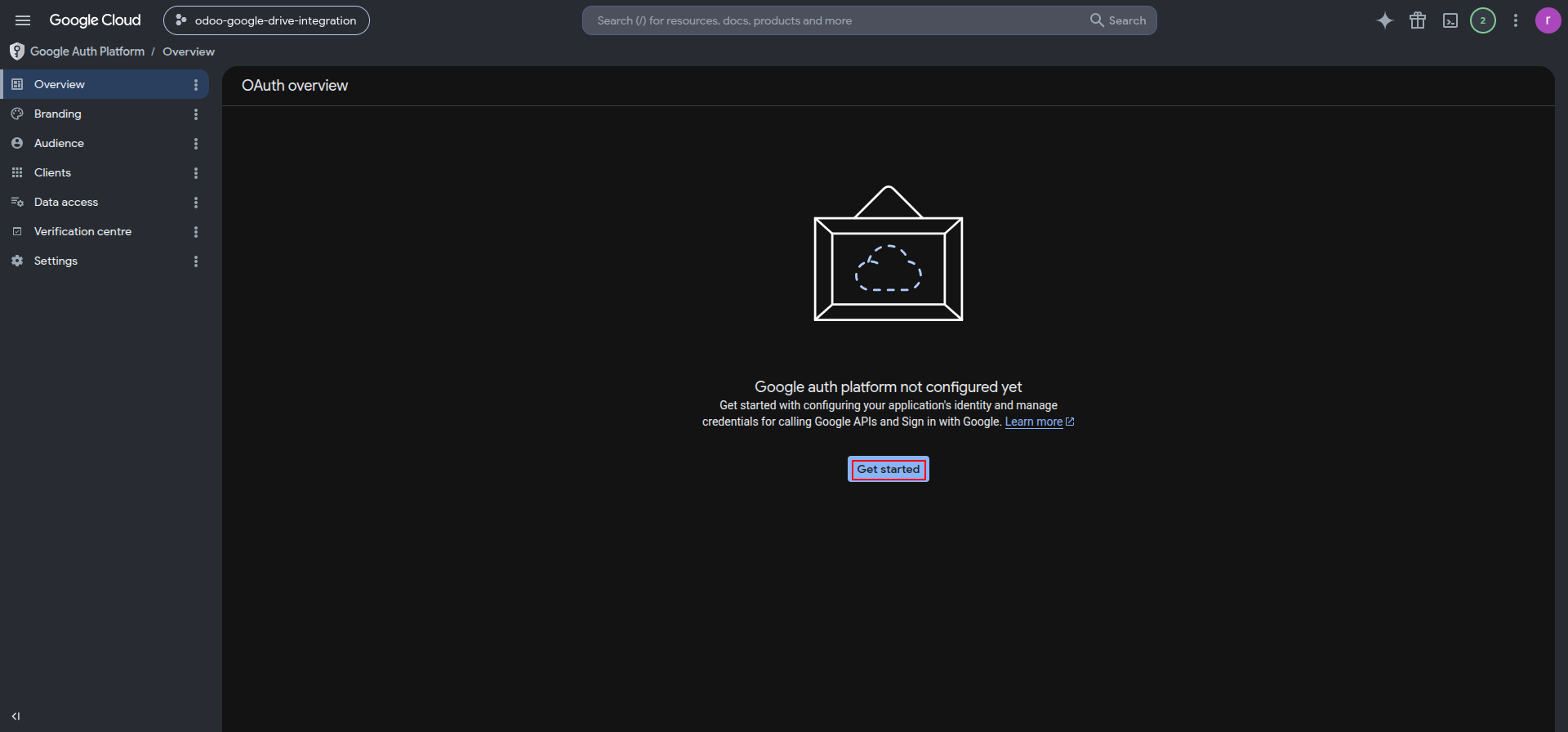

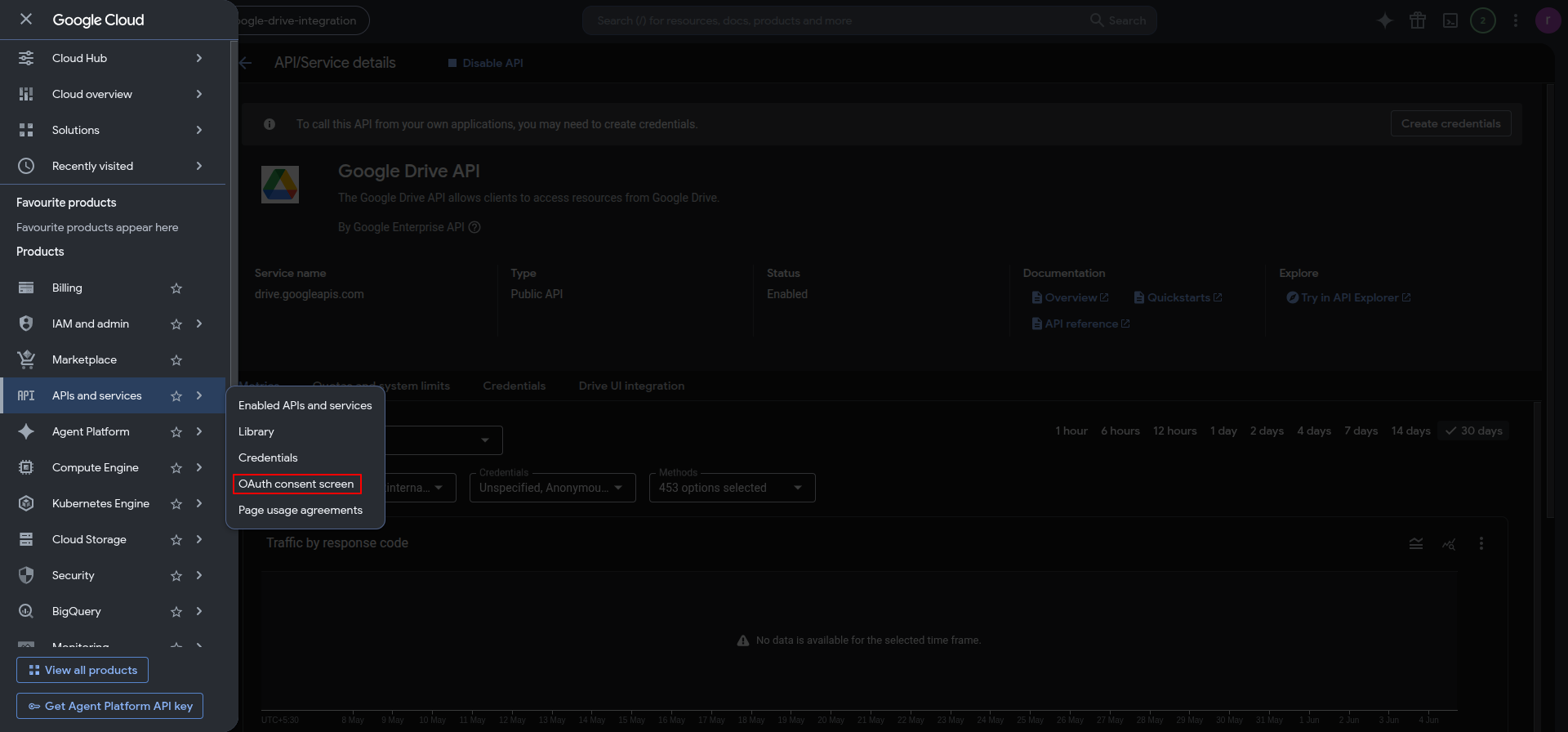

Go to APIs & Services > OAuth consent screen to begin configuration.

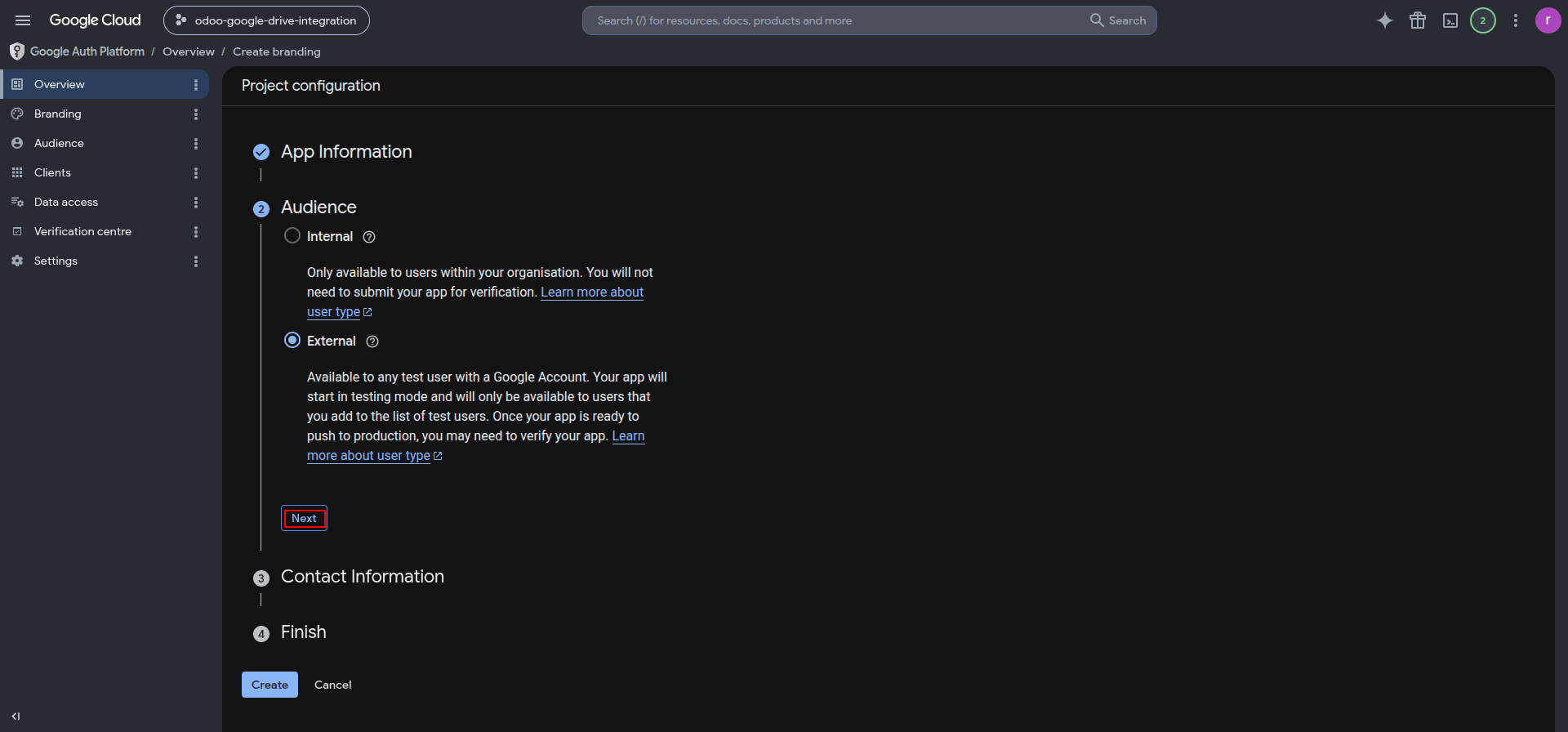

Select 'External' user type to allow connection from your Odoo server.

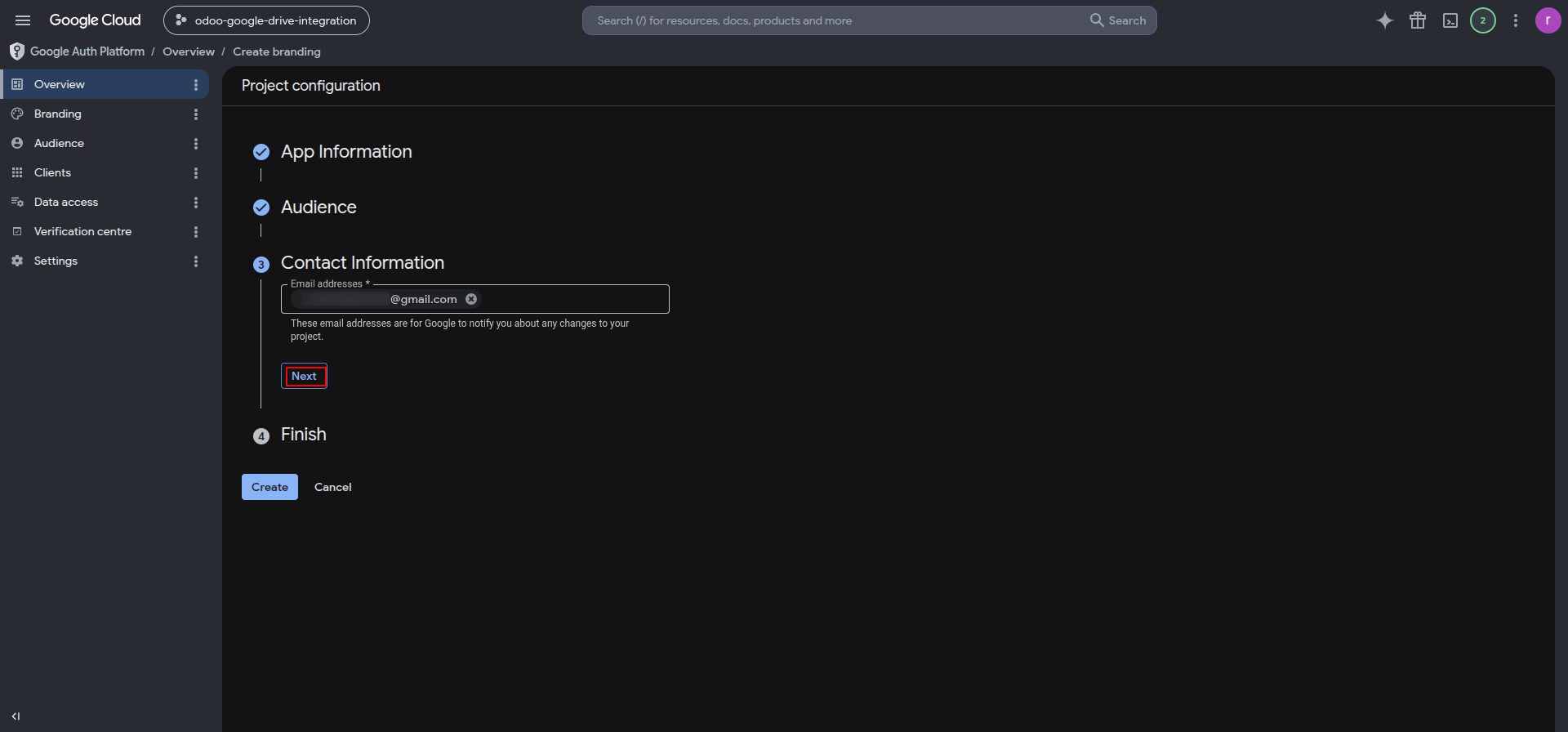

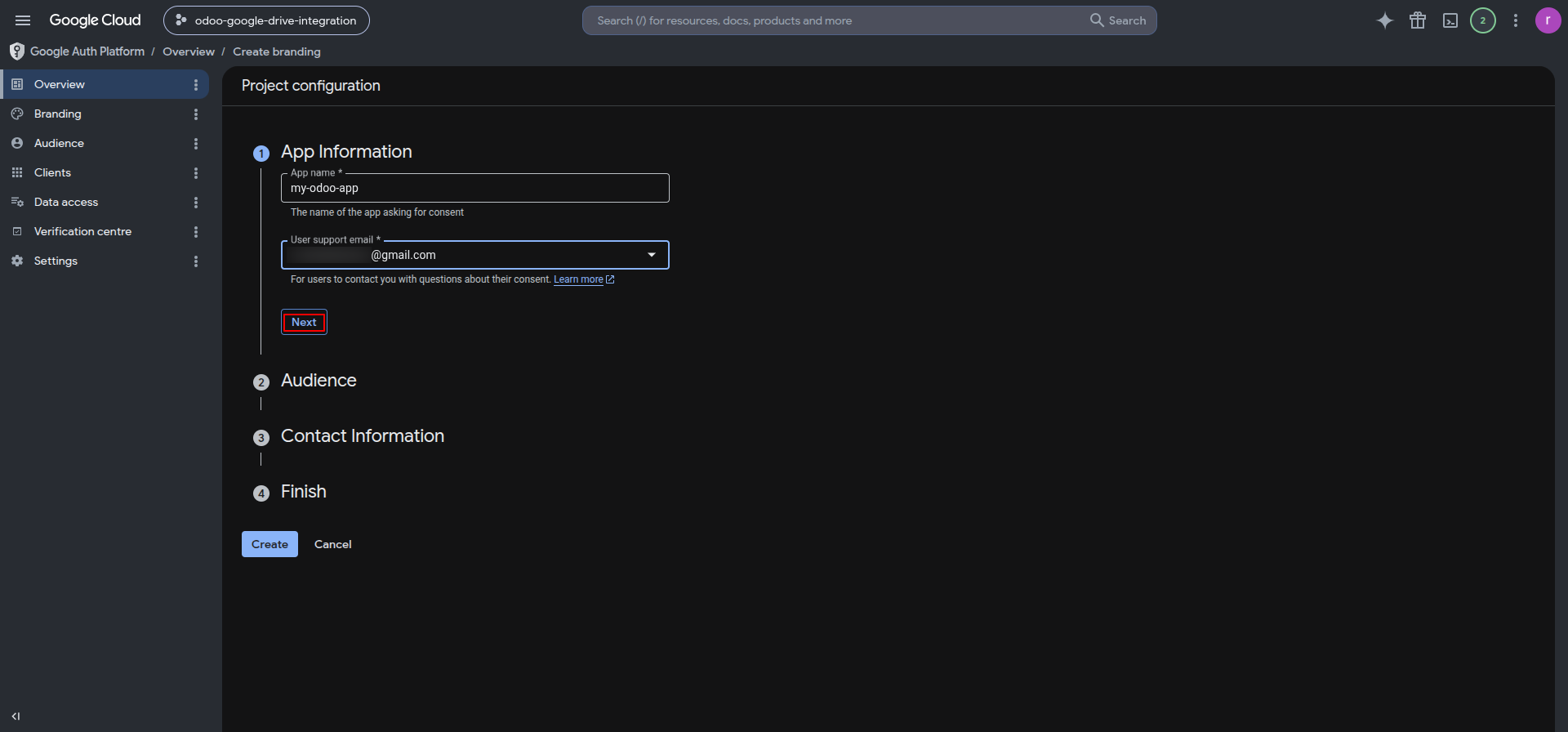

Enter app details including name, support email, and developer contact info.
Configure scopes to grant read, write, and delete permissions for files.

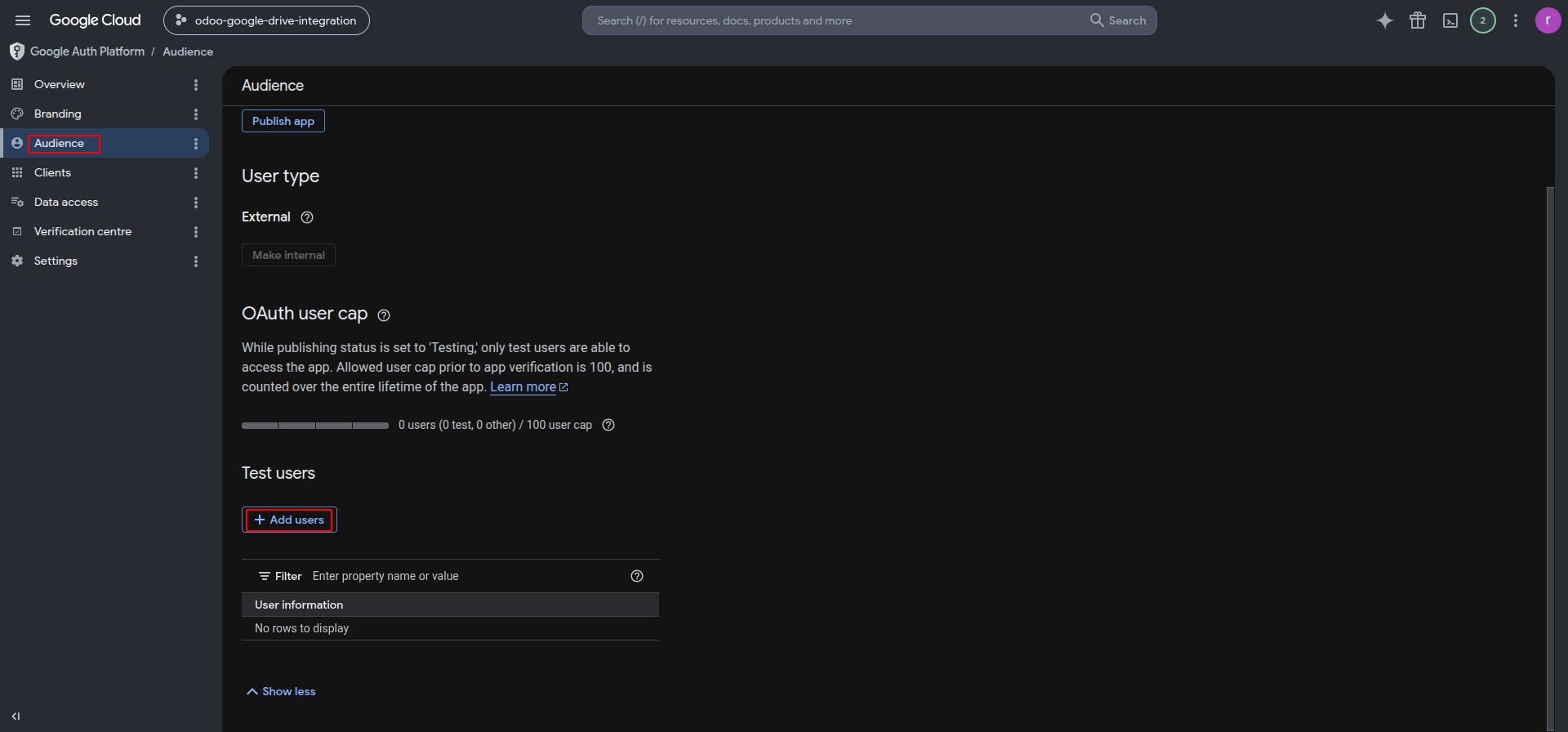

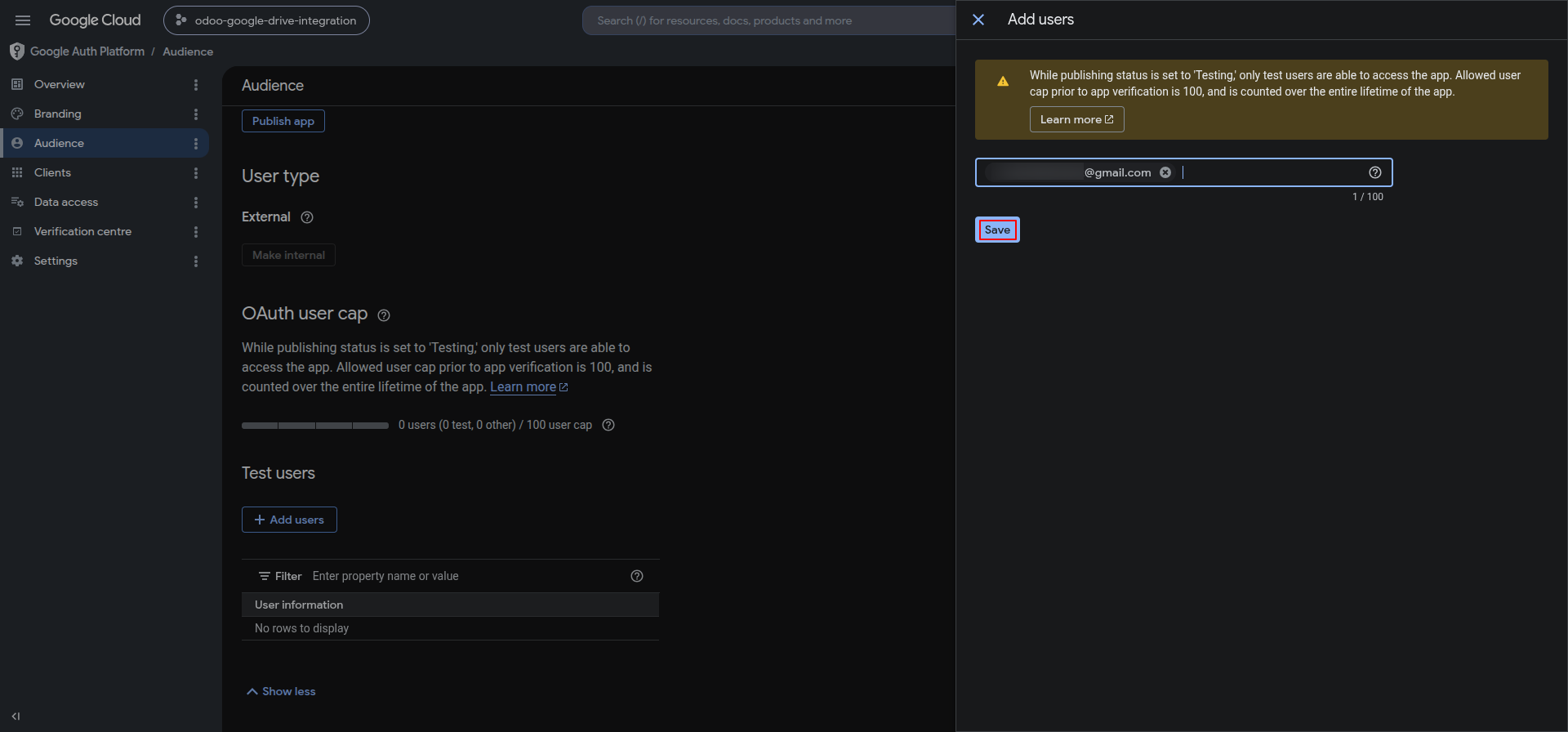

Add test user email addresses if the application is in testing state.

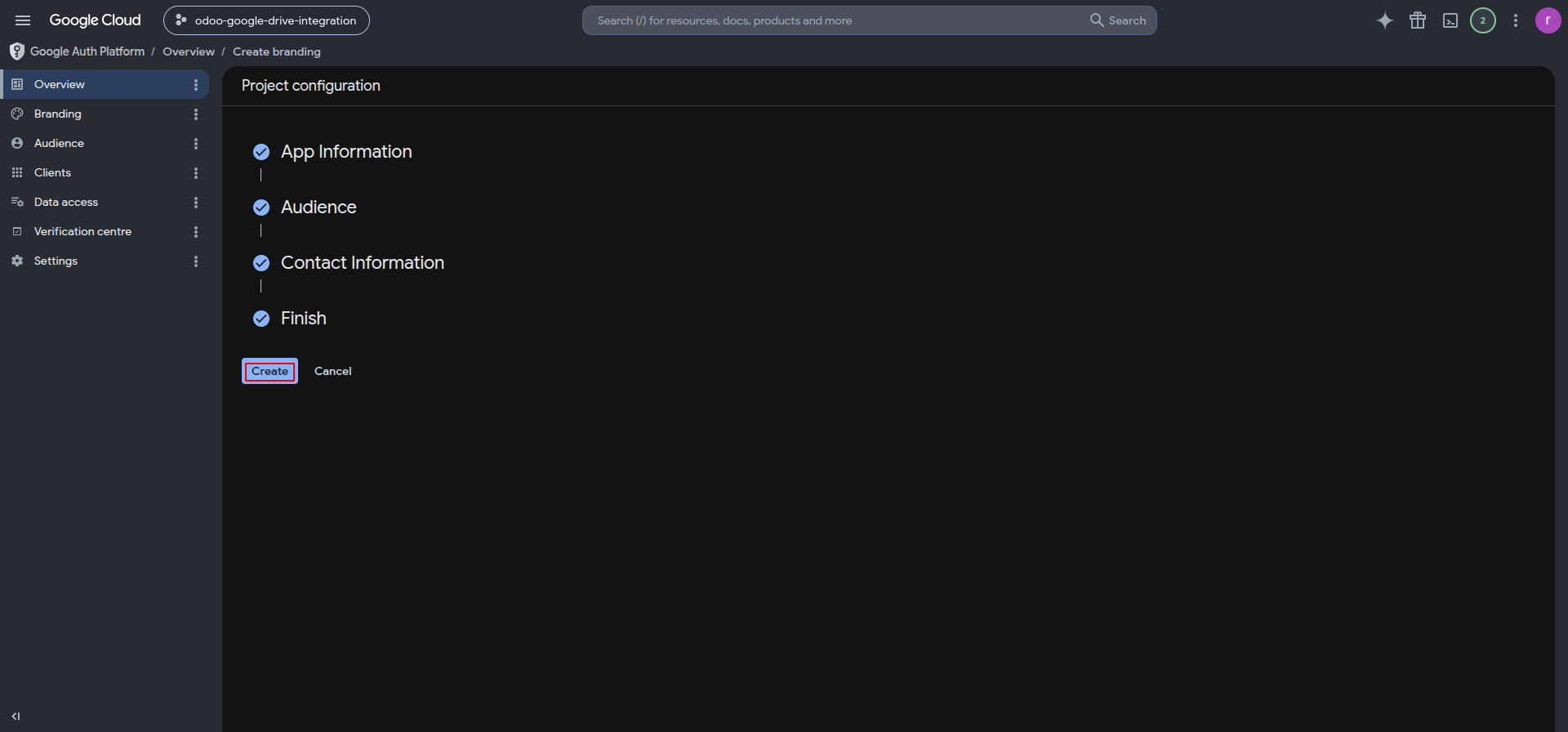

Verify your configuration details on the OAuth consent screen summary page.

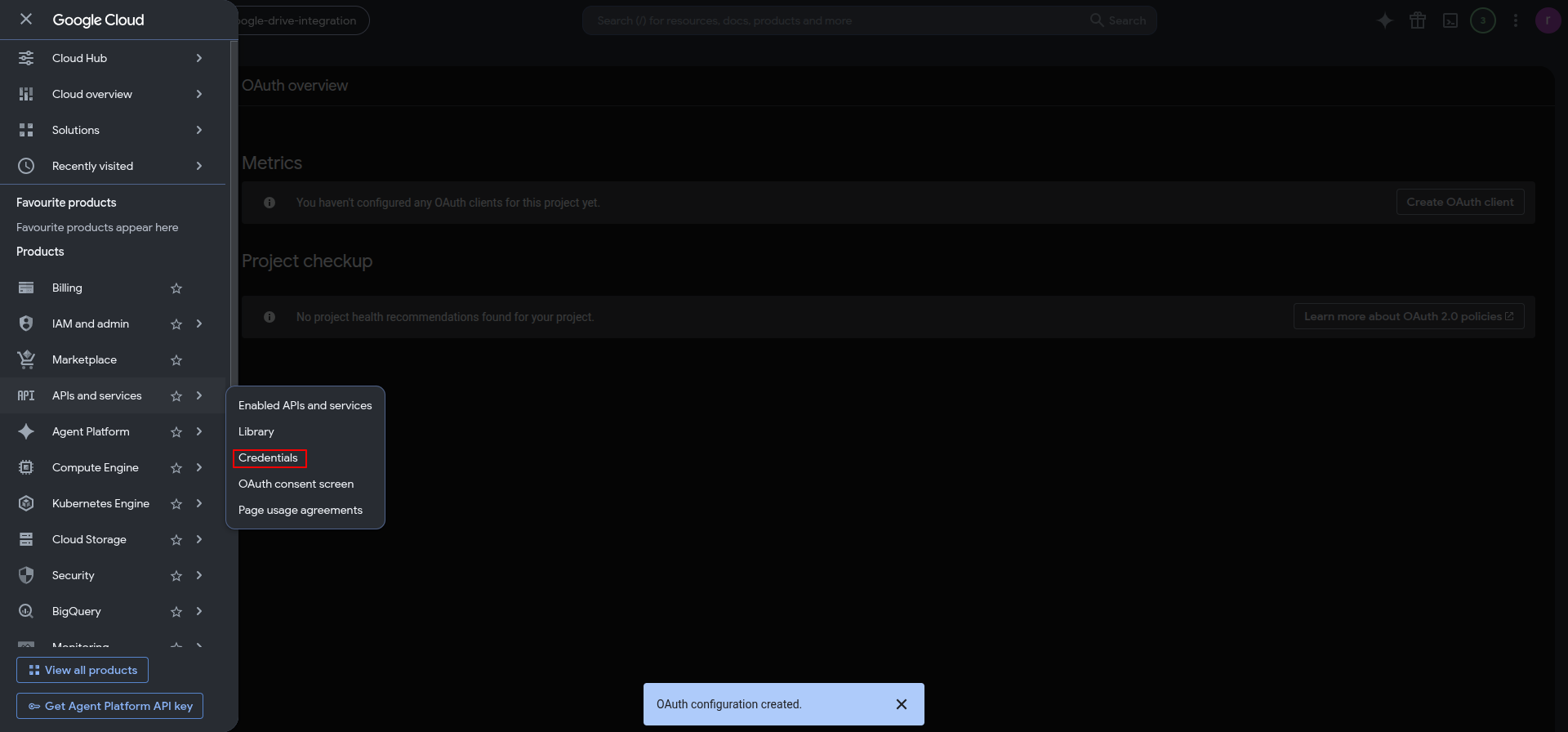

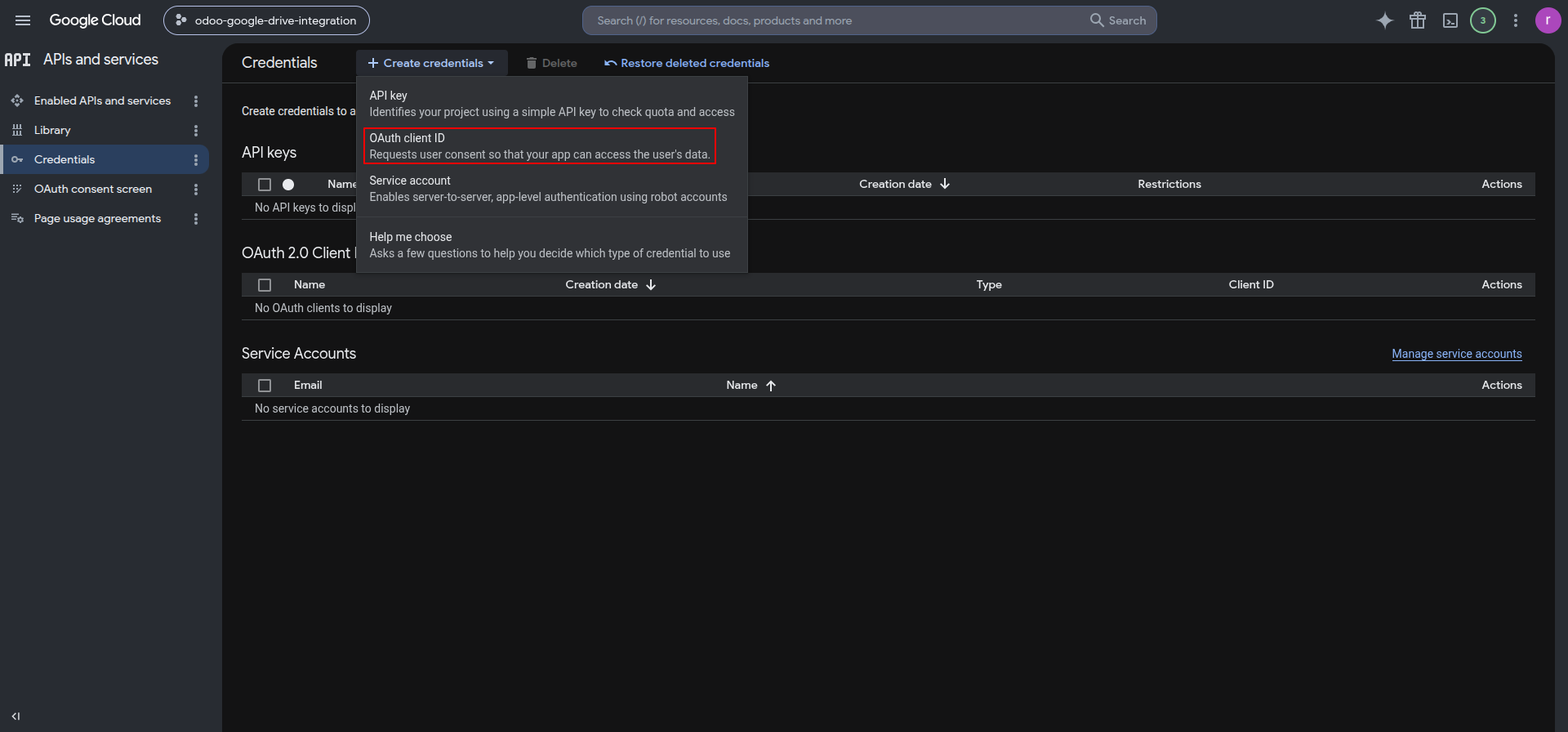

Navigate to Credentials > Create Credentials > OAuth client ID.
Select Application type as 'Web application' and name your client.

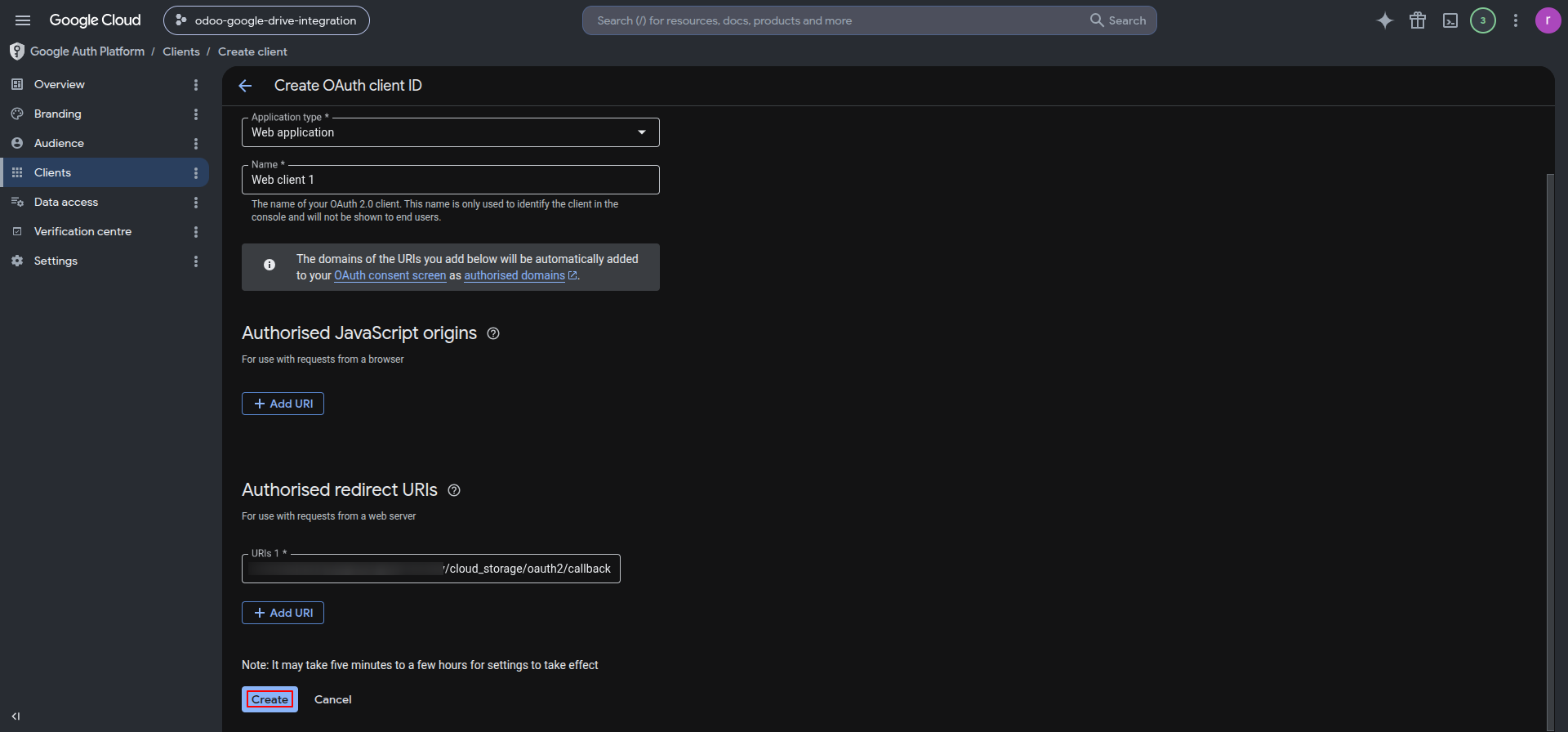

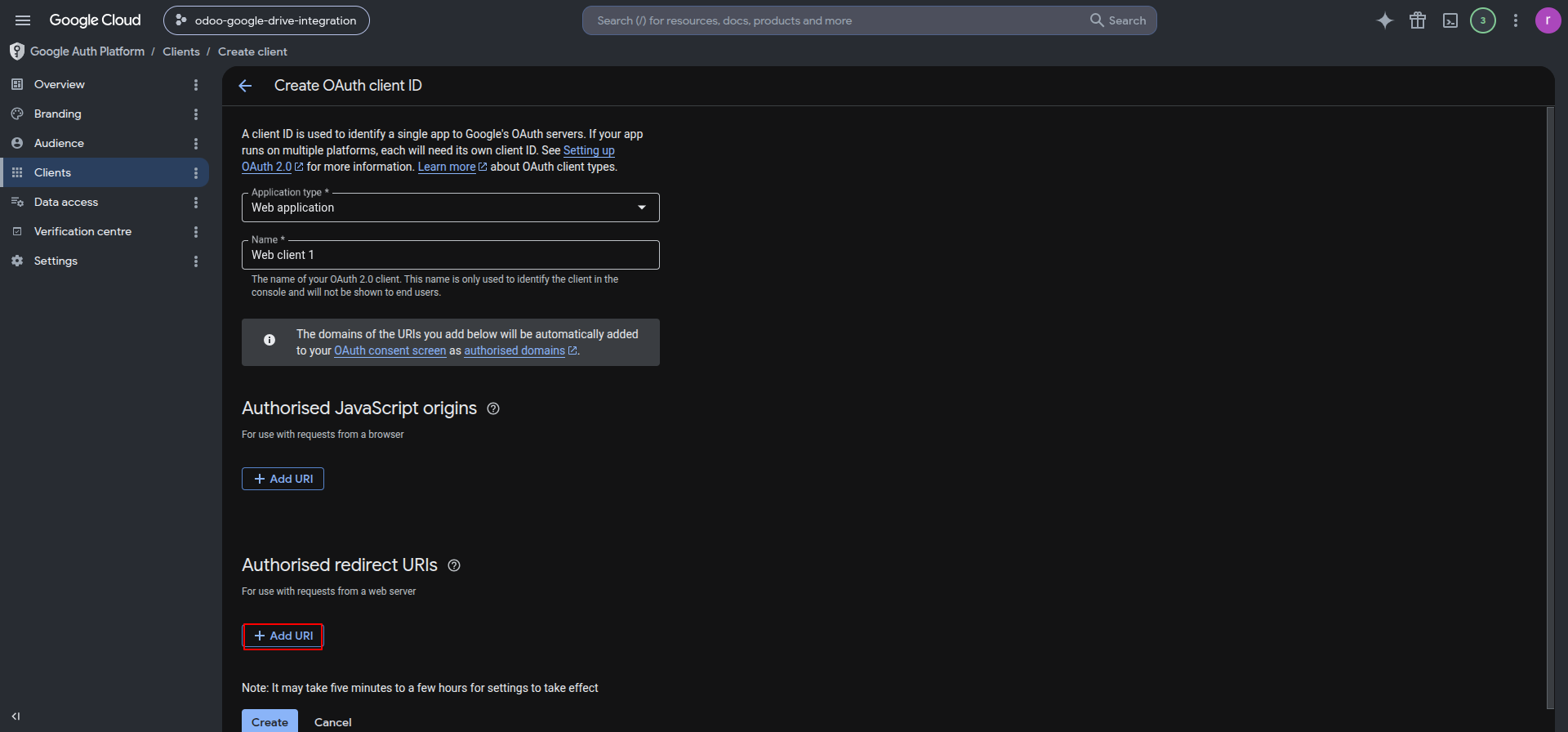

Configure the Authorized redirect URIs matching your Odoo database URL.

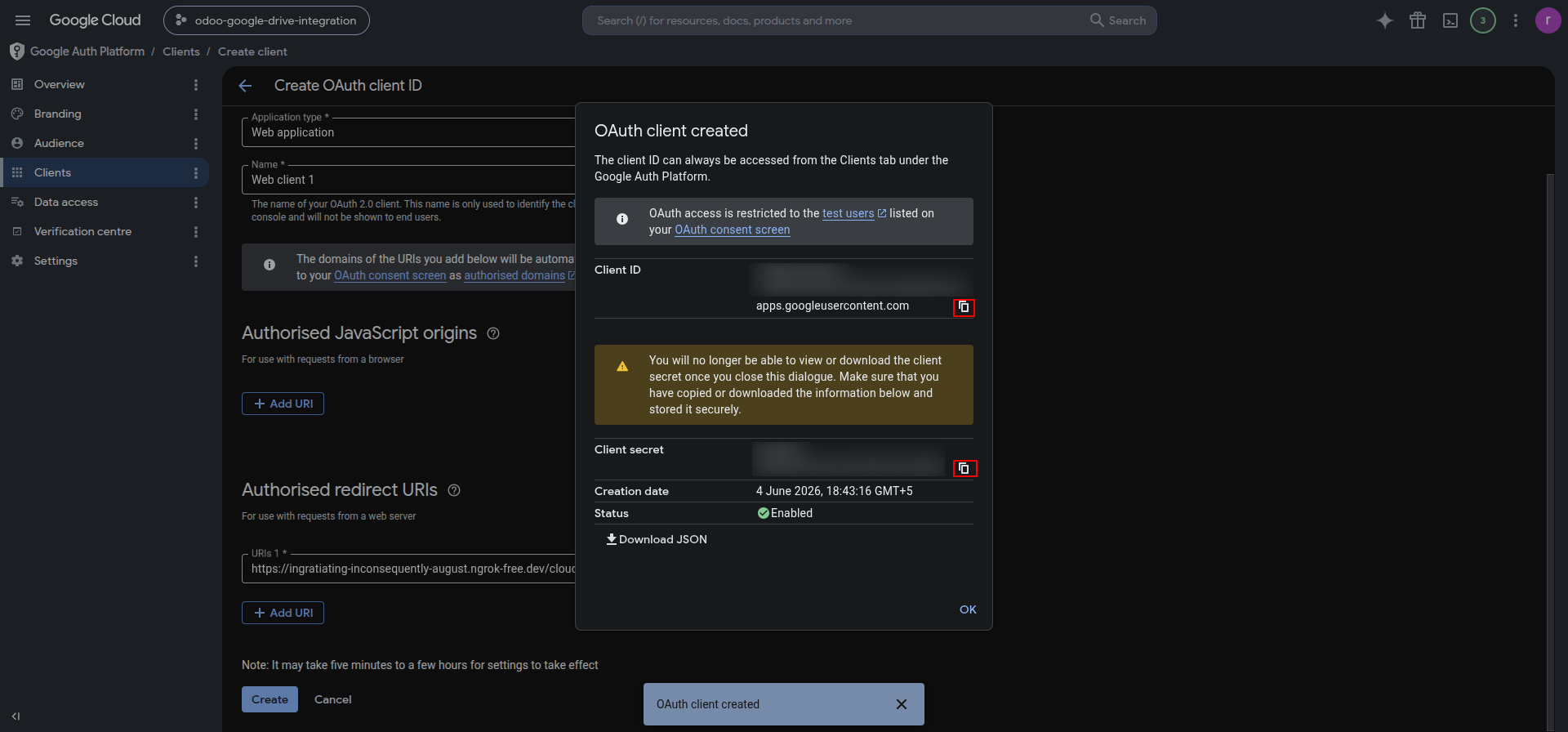

Retrieve and save the generated client ID and client secret safely.

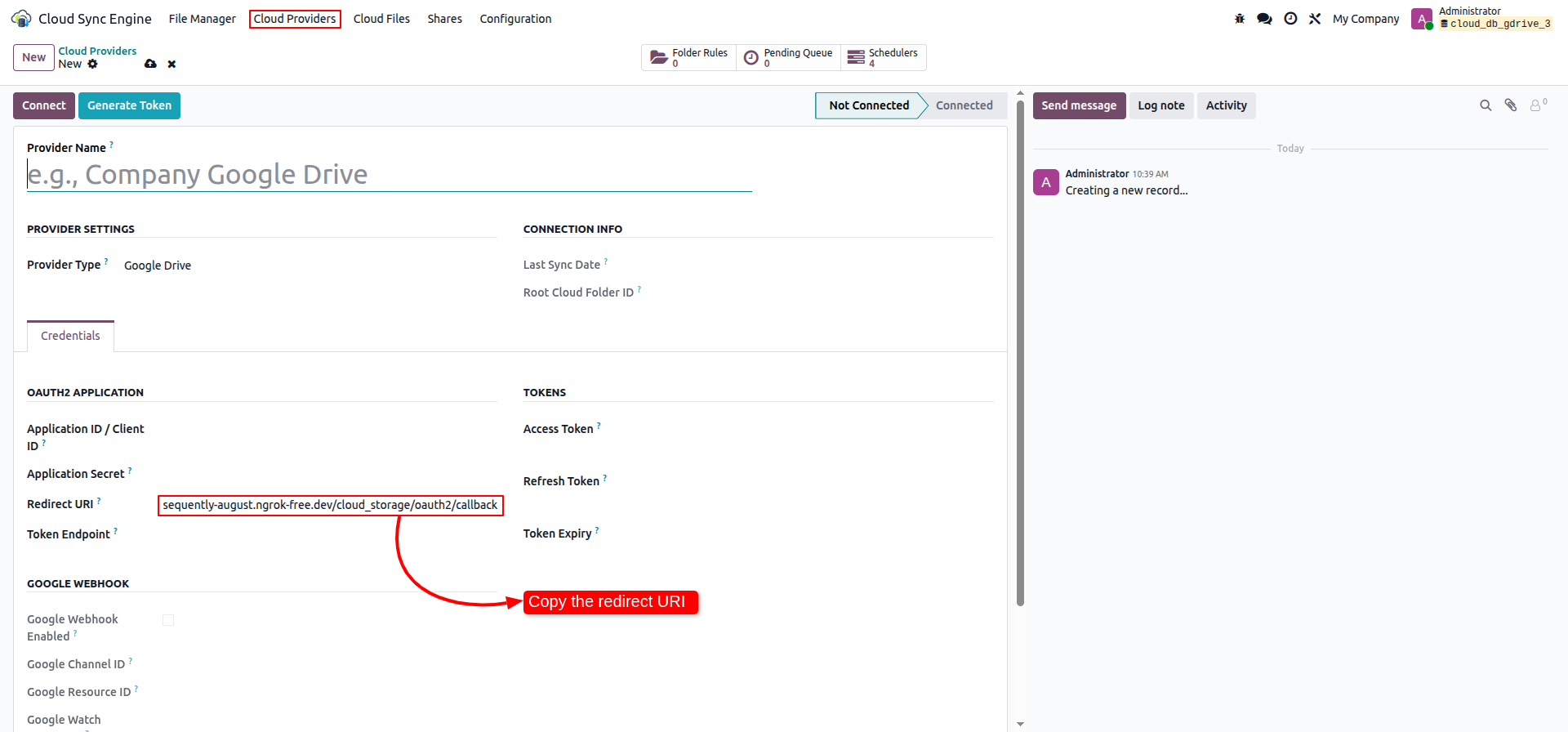

In Odoo, create a new Cloud Provider record and set type to Google Drive.

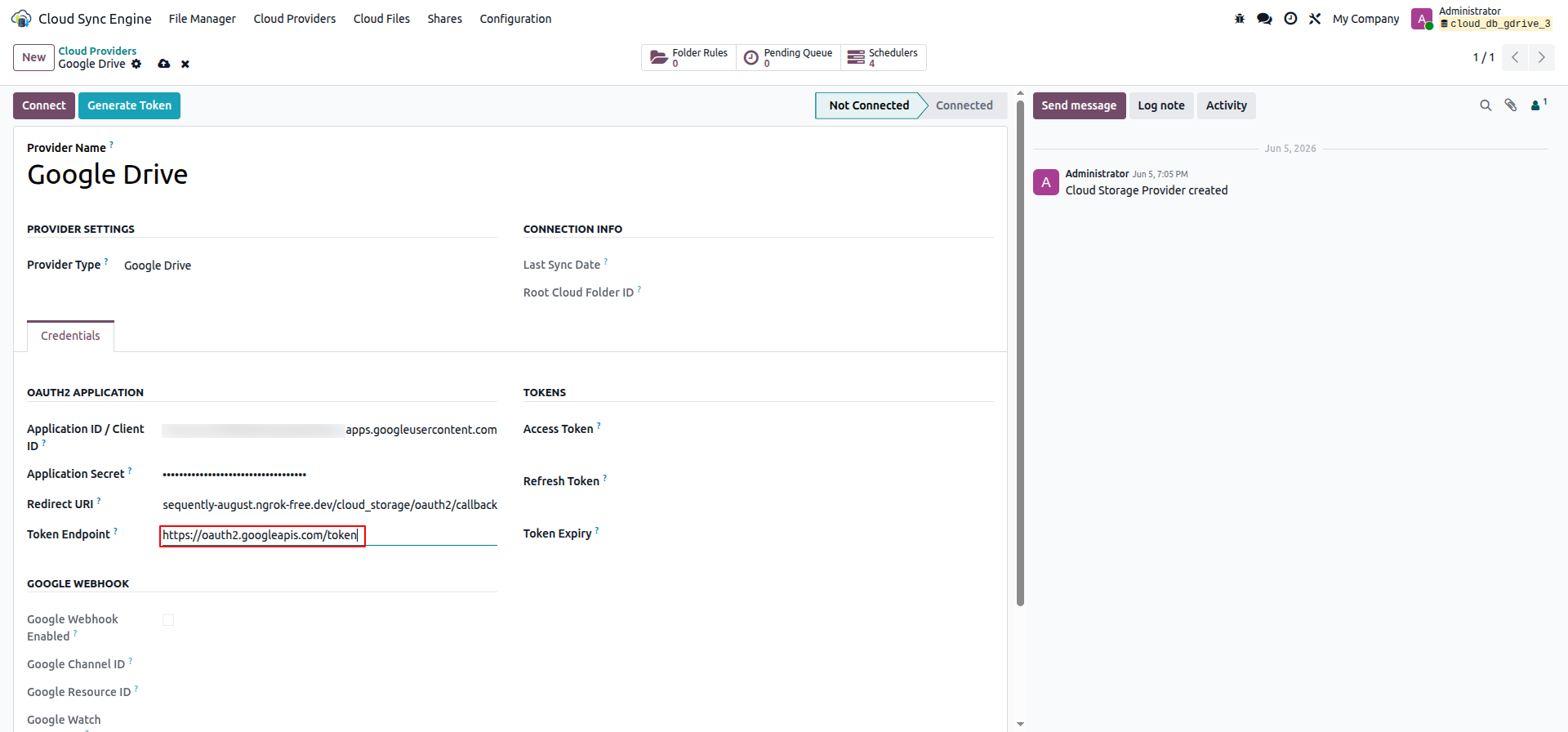

Fill in the Google Drive app details and credentials under the configuration tab.

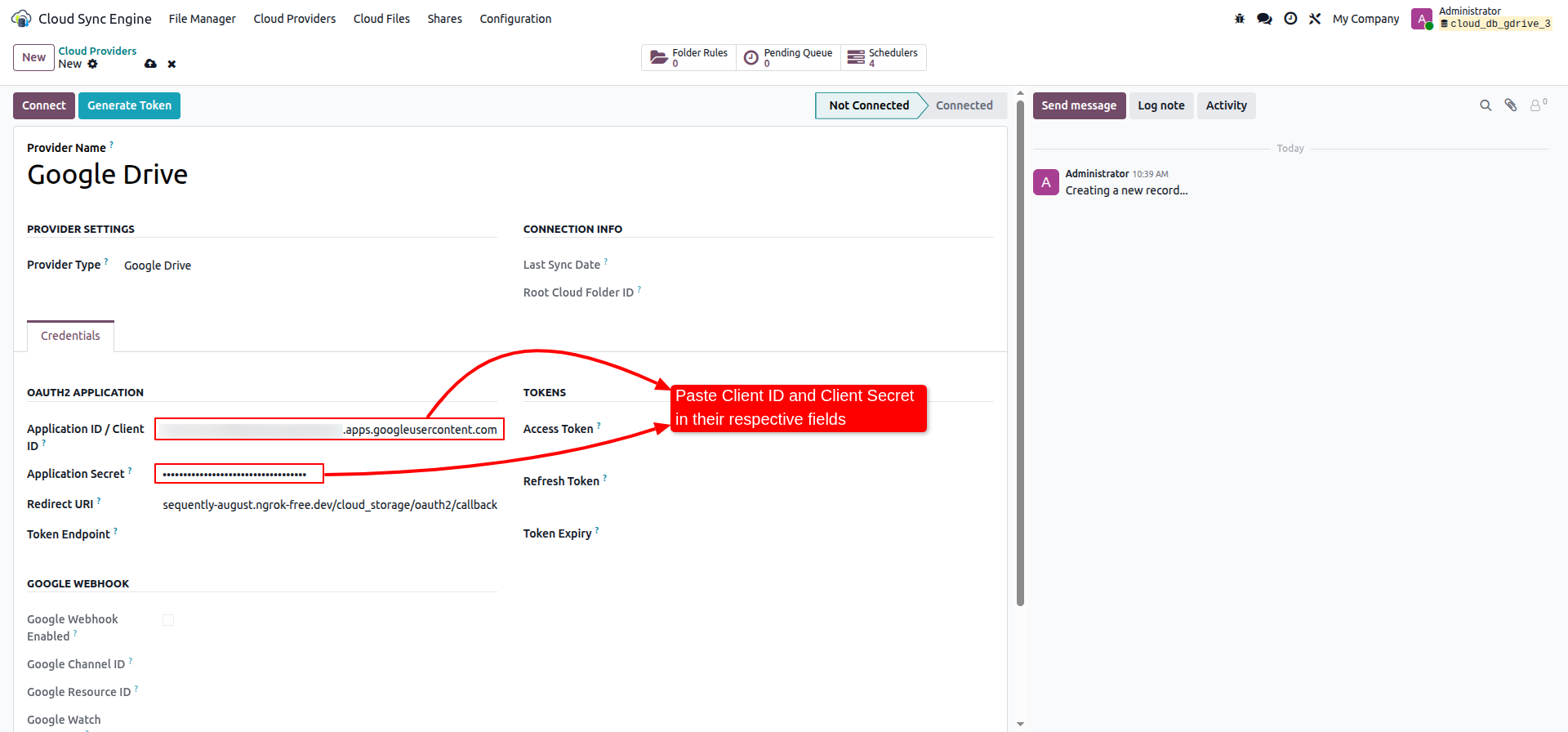

Enter the OAuth2 Client ID and Client Secret in Odoo credentials tab.

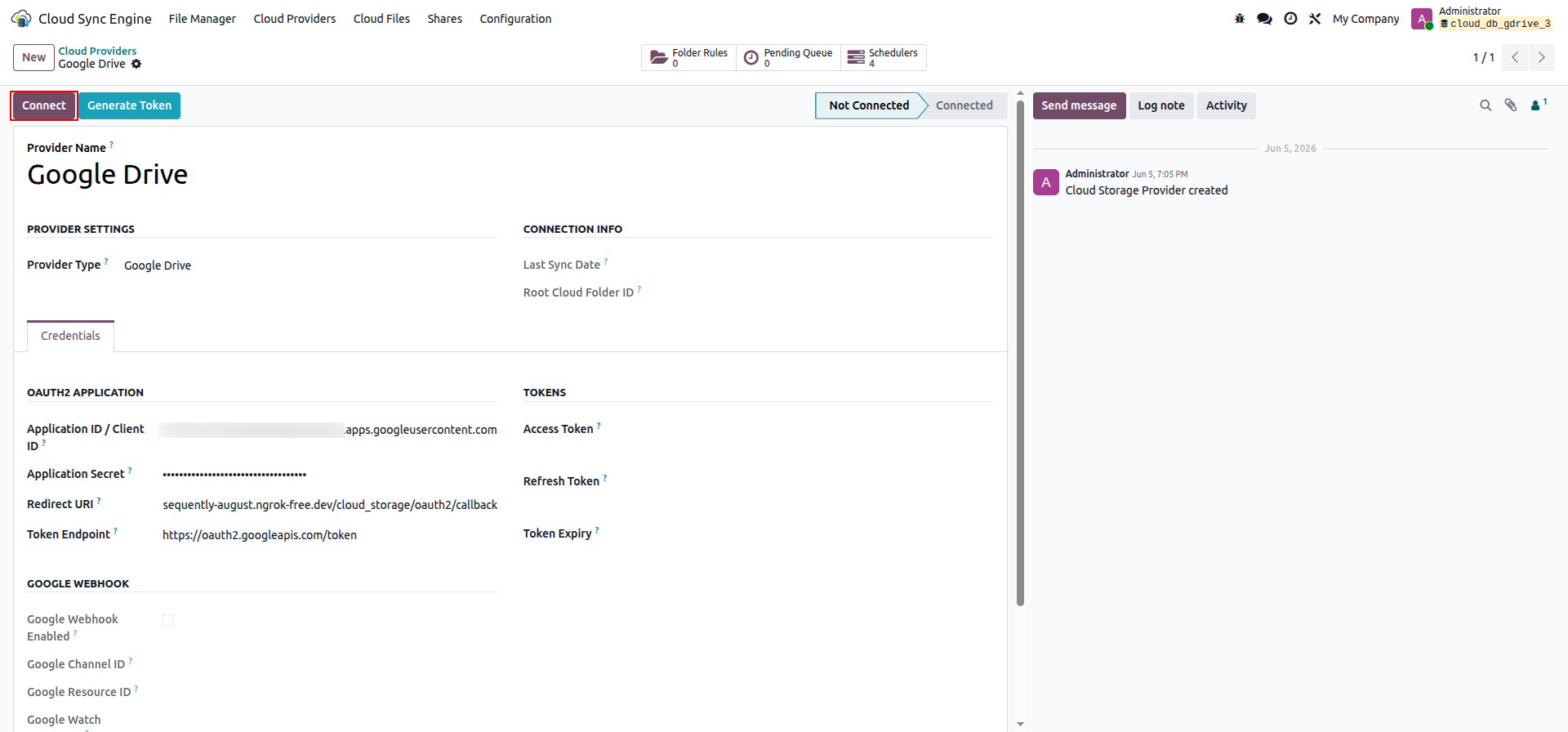

Click the 'Connect' button in Odoo header to initialize authorization flow.

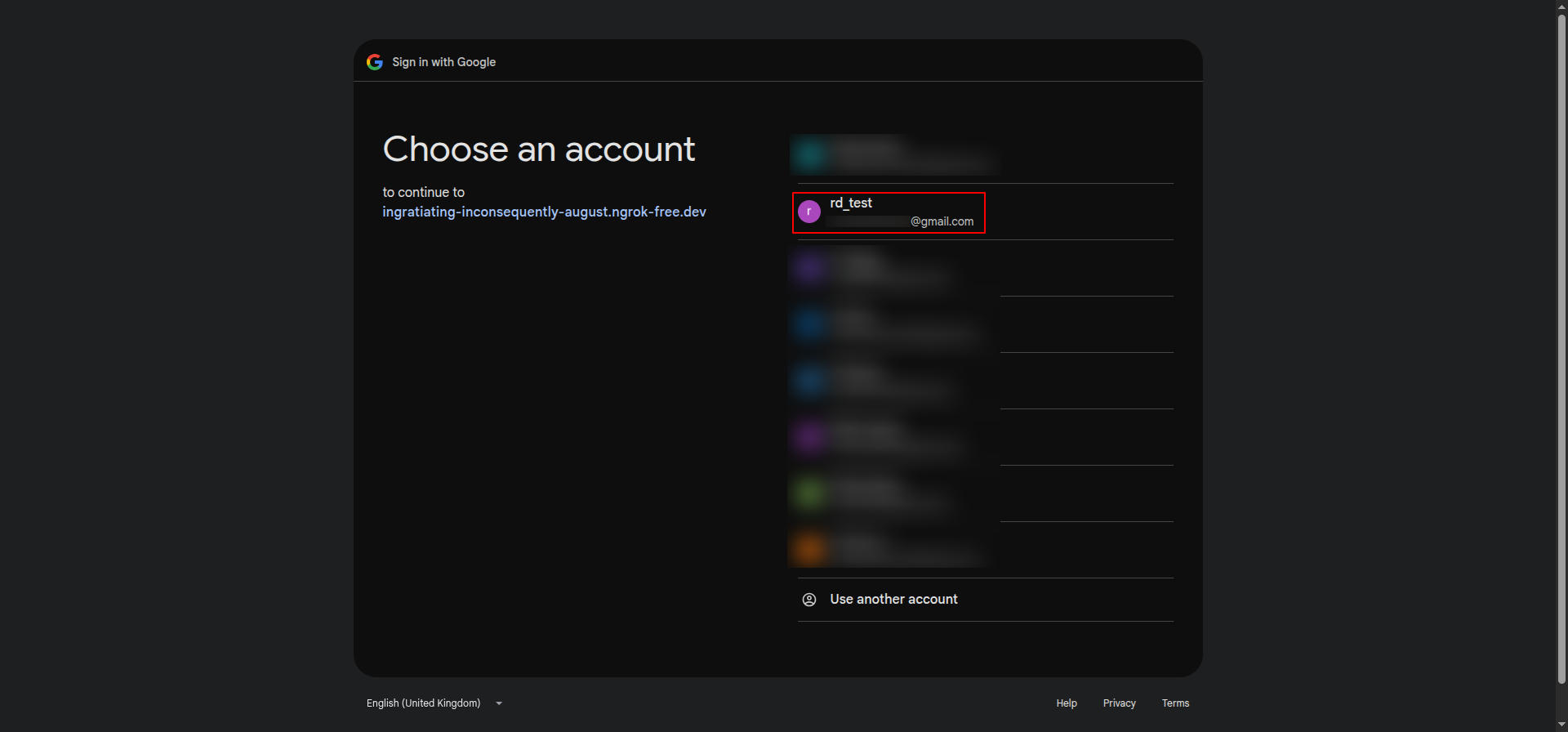

Choose the target Google Account to link with your Odoo instance.

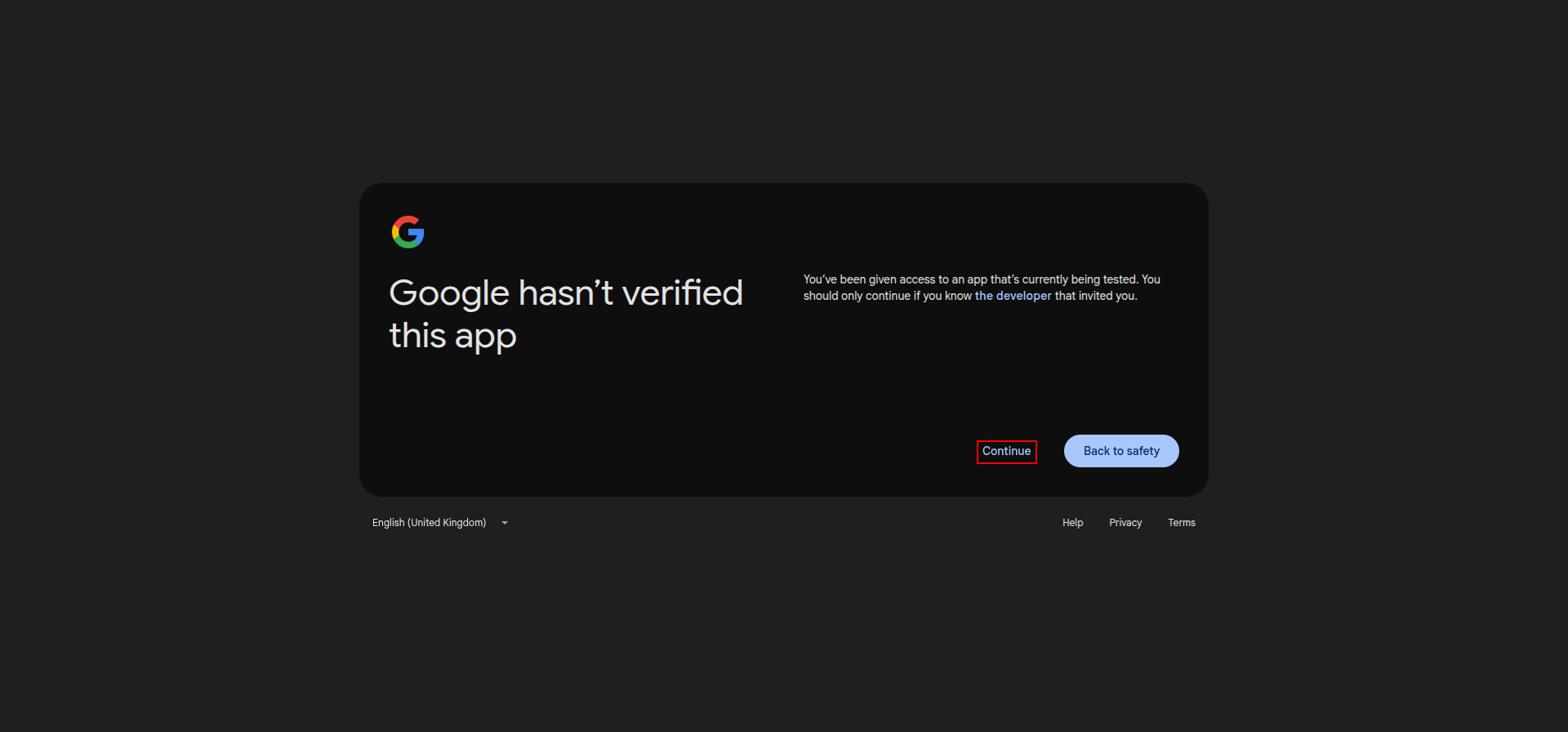

Click 'Advanced' and proceed if Google shows an unverified application warning.

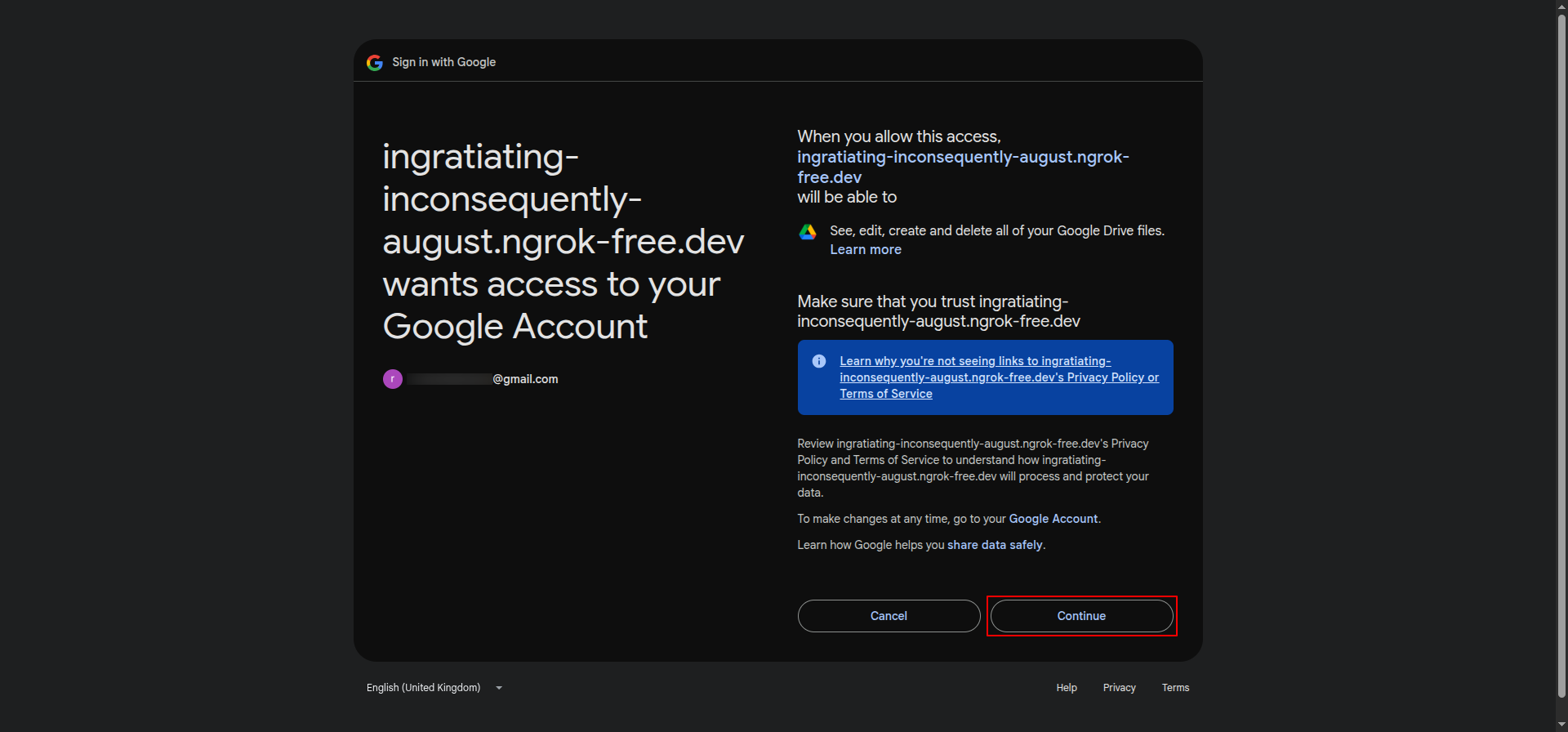

Review the requested drive scopes and click 'Allow' to grant authorization.
Review final permission confirmations before completing the OAuth2 flow.

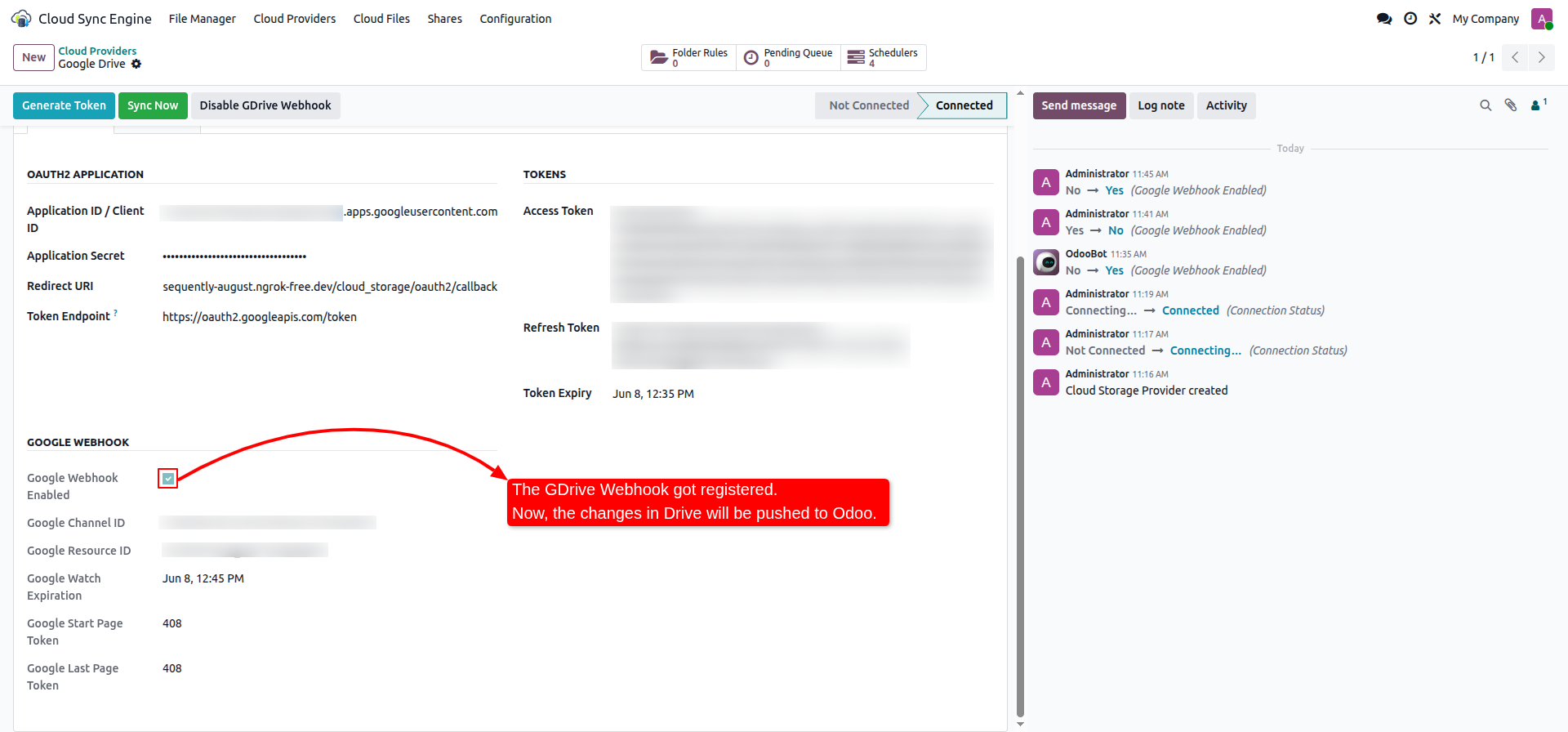

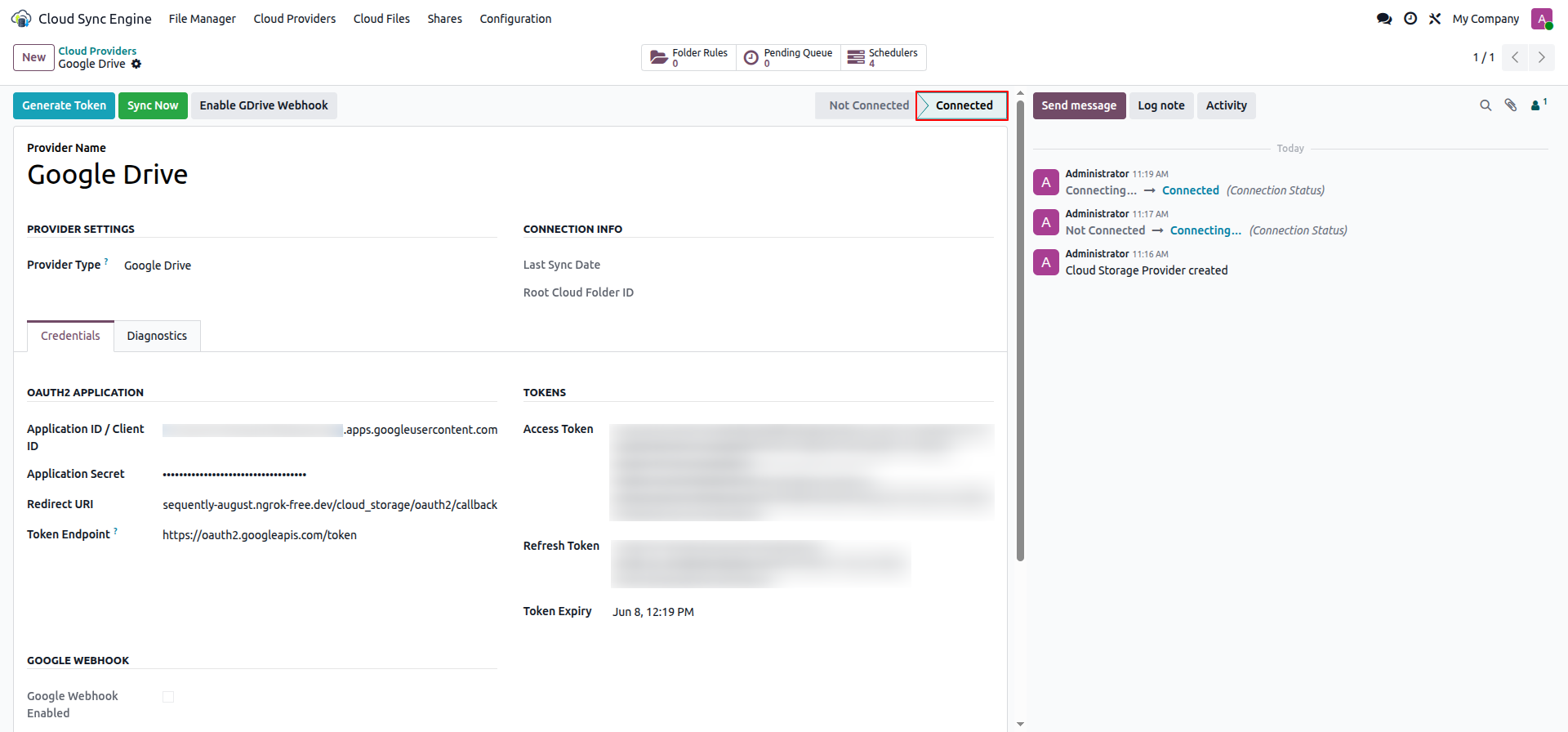

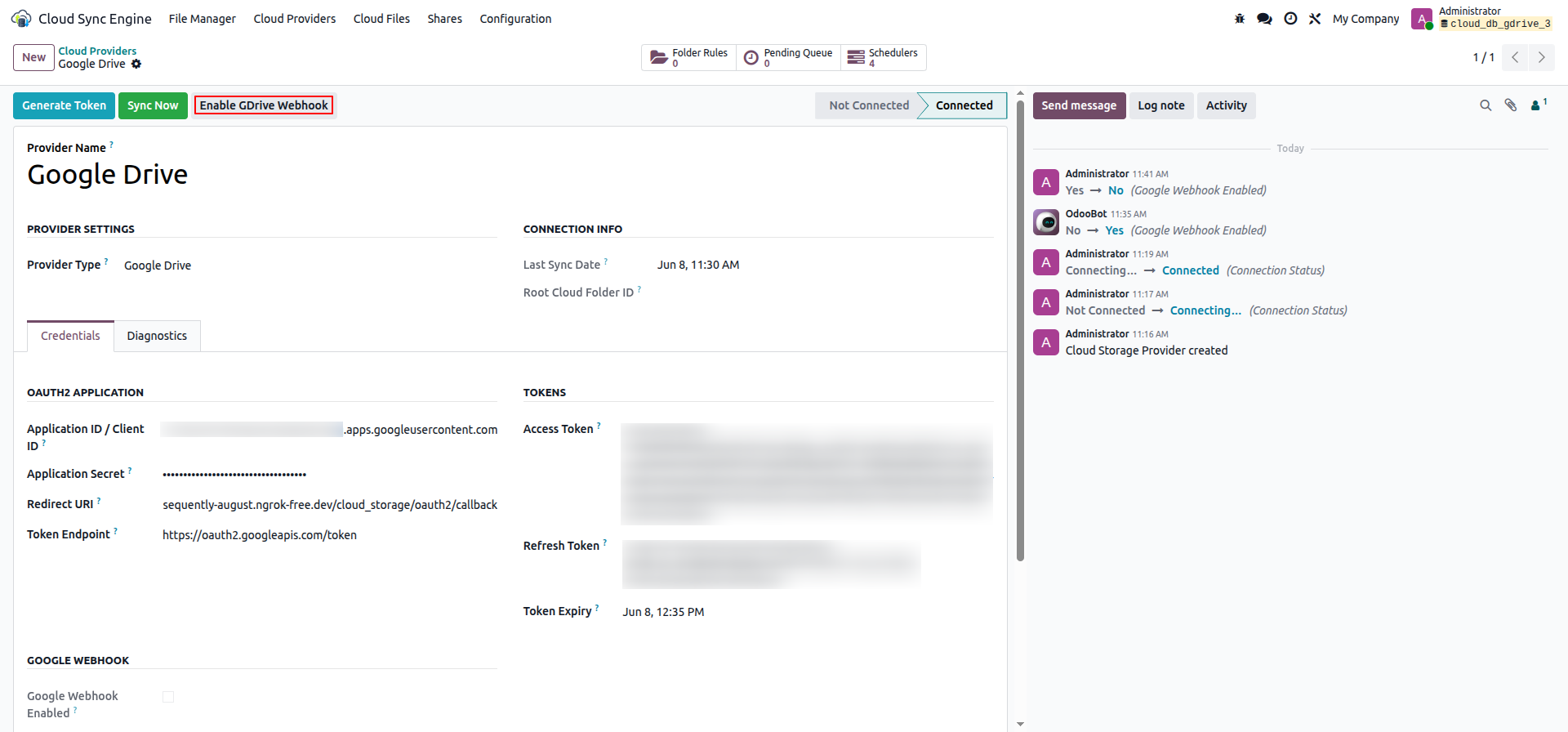

Verify that the provider status transitions to 'Connected' in Odoo.
Create a new Smart Folder Rule to automate folder mapping for Odoo models.
Define the folder name template (e.g. Sales/${name}) for model records.
Open any Odoo record matching your rule and view the chatter widget.
Upload a file in Odoo chatter to trigger the automatic background upload.
Check the sync queue logs to verify successful synchronization to Google Drive.
Verify the uploaded file is successfully synchronized under your Drive folder.
Dropbox Integration Configuration
Follow the steps below to register an app in Dropbox App Console and connect it with Odoo.

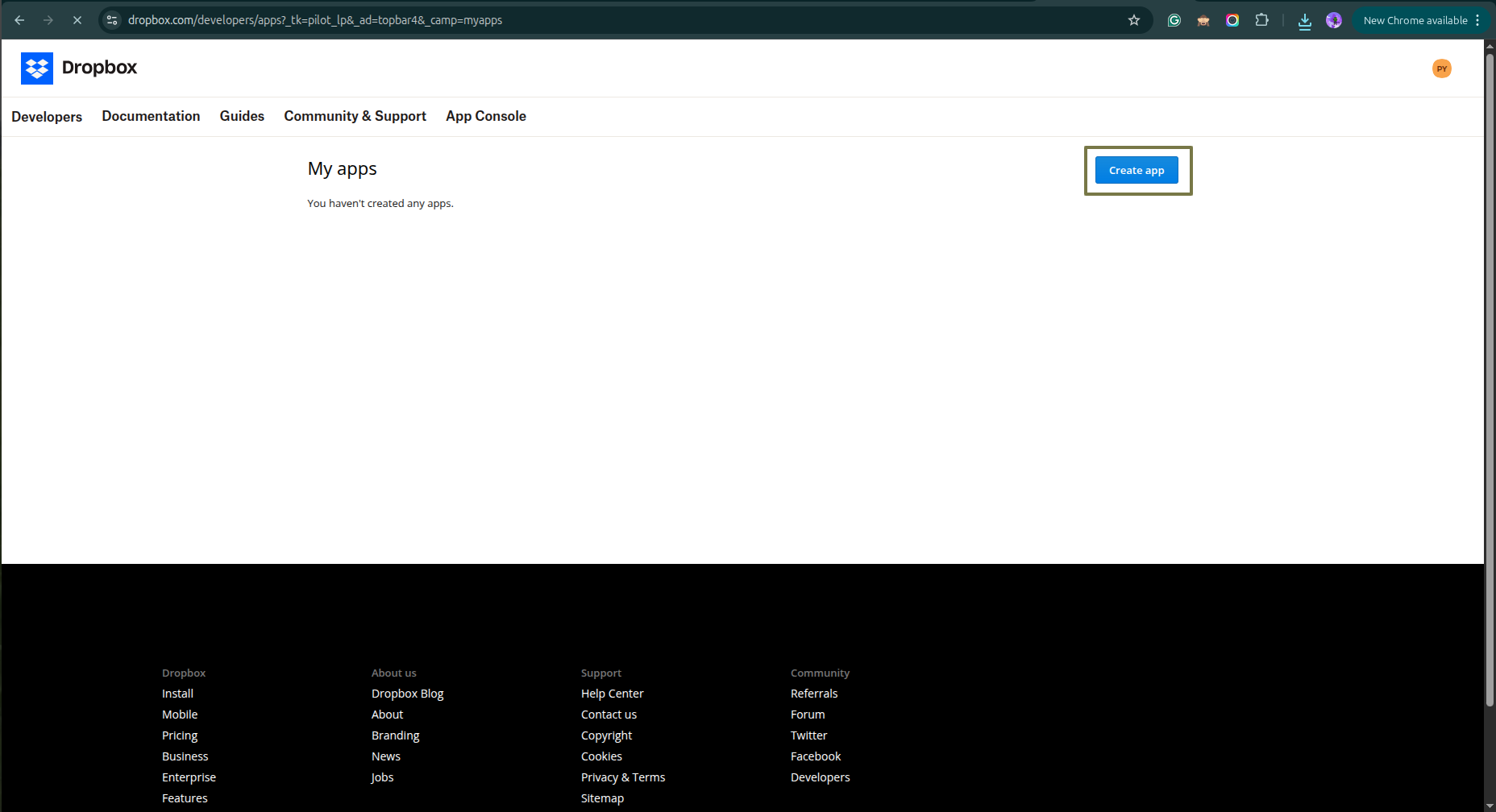

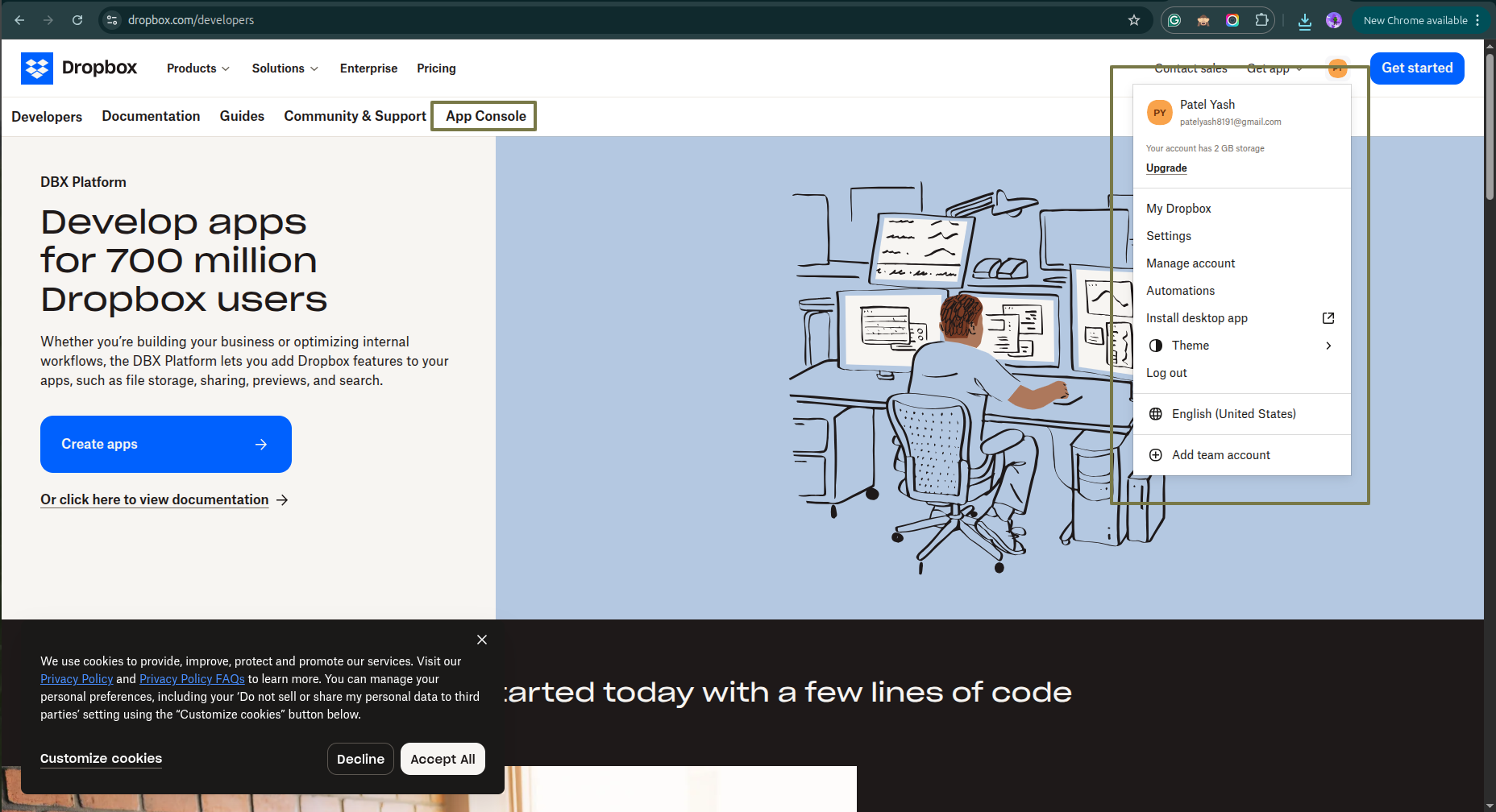

Go to Dropbox App Console and click 'Create app' to register Odoo.

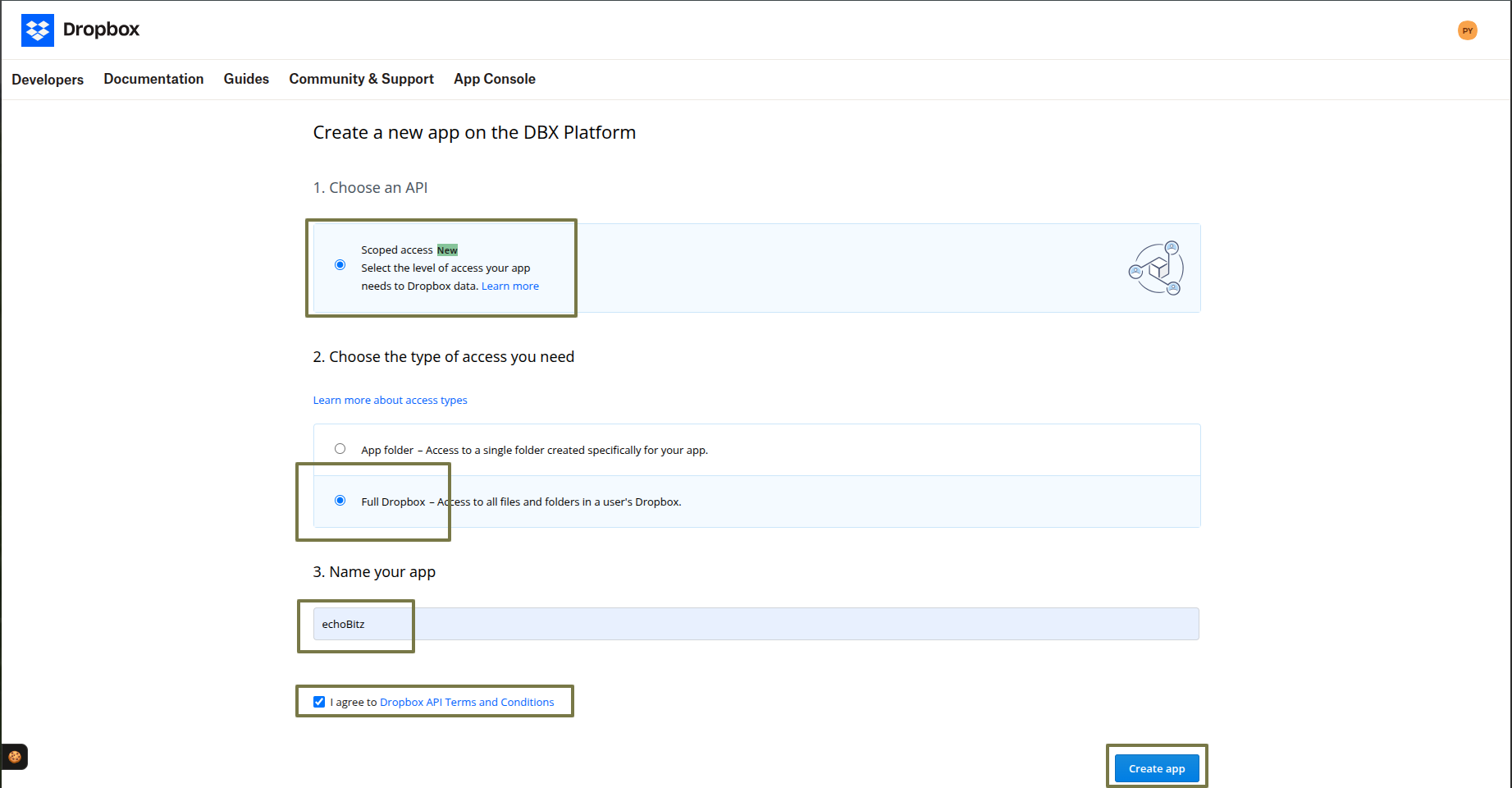

Select 'Scoped access', choose App folder or Full Dropbox, and name your app.
Access the App settings page for your newly created Dropbox app.

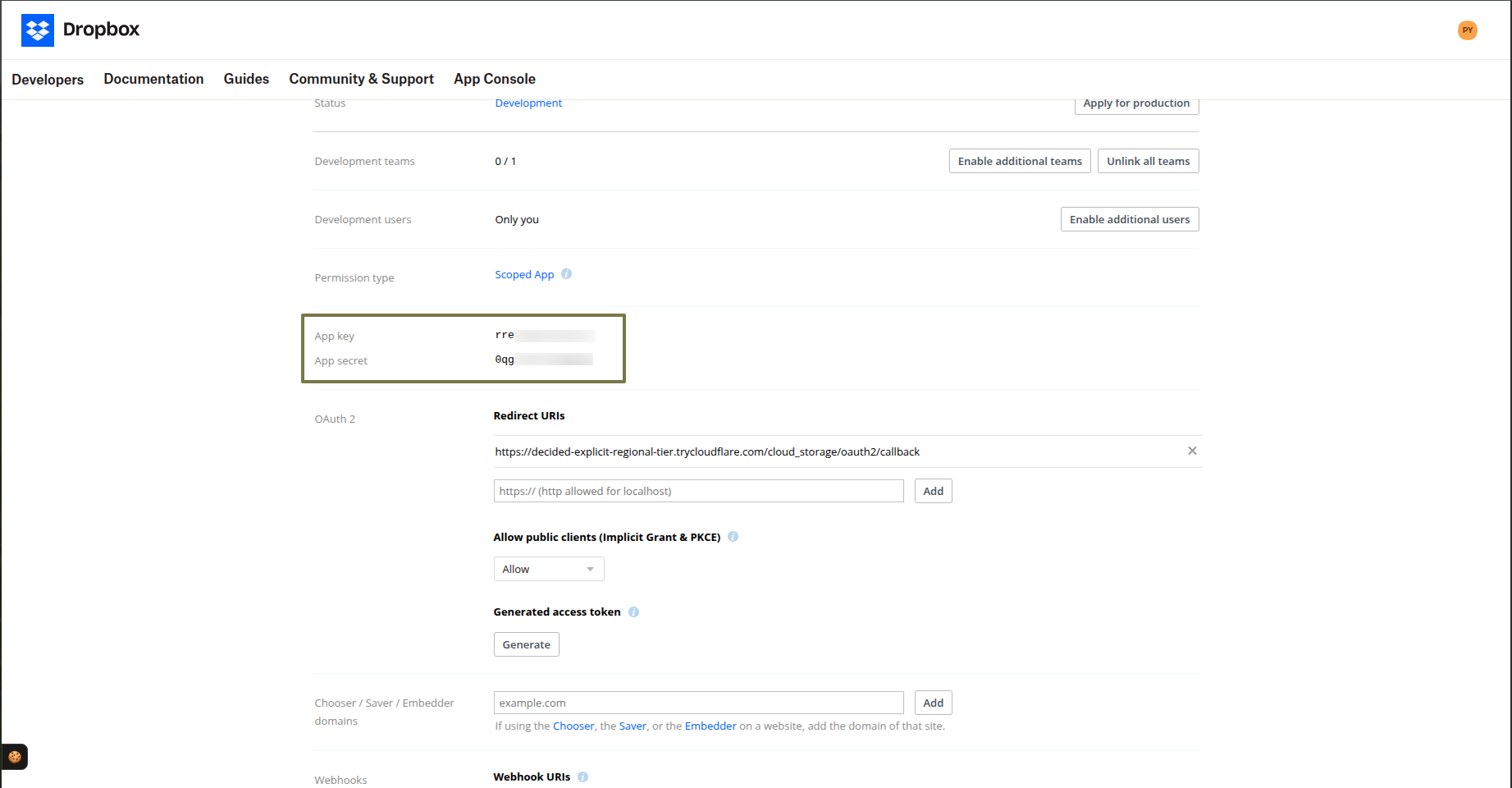

Copy the App Key and App Secret keys from settings to Odoo.

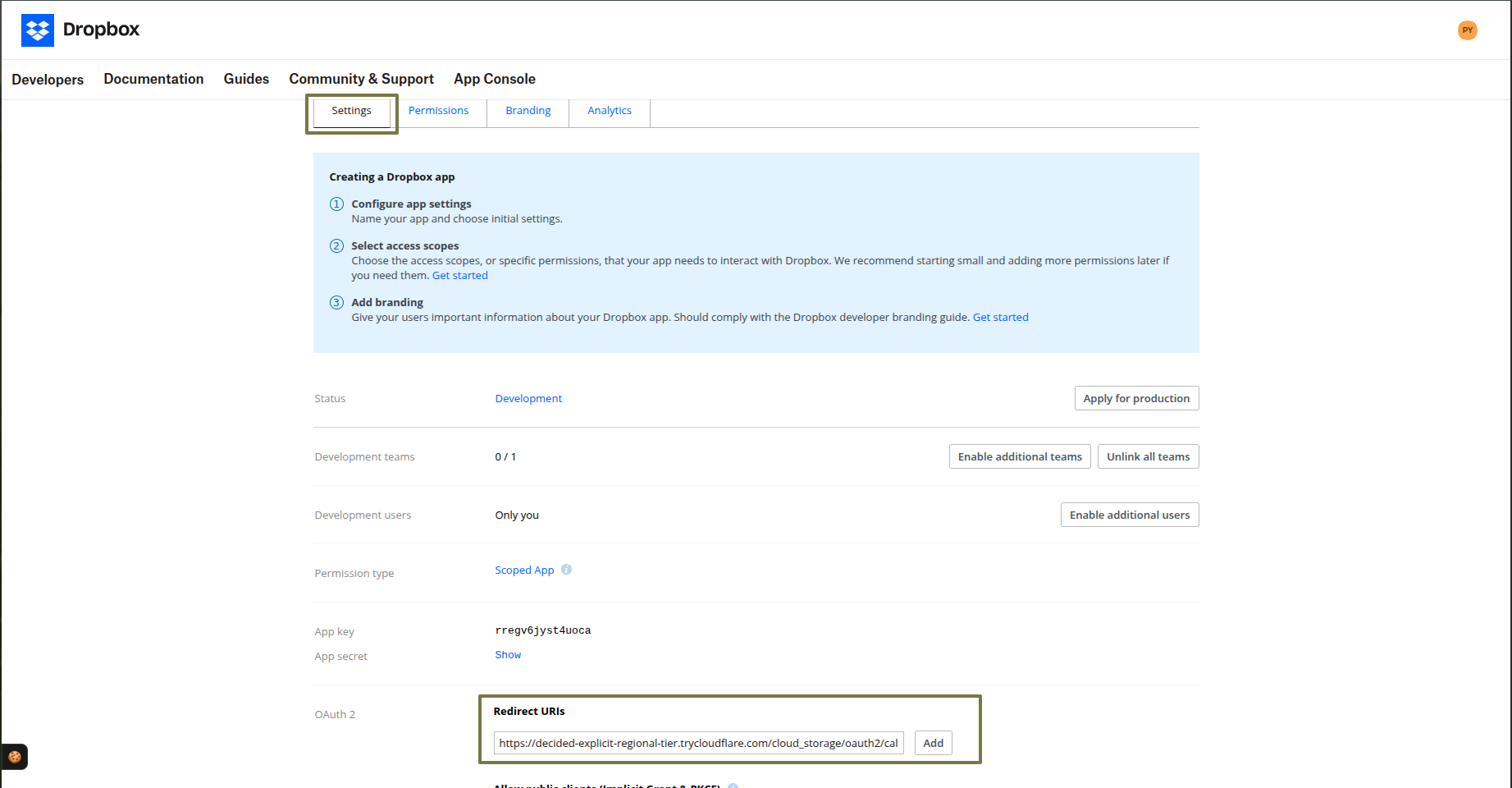

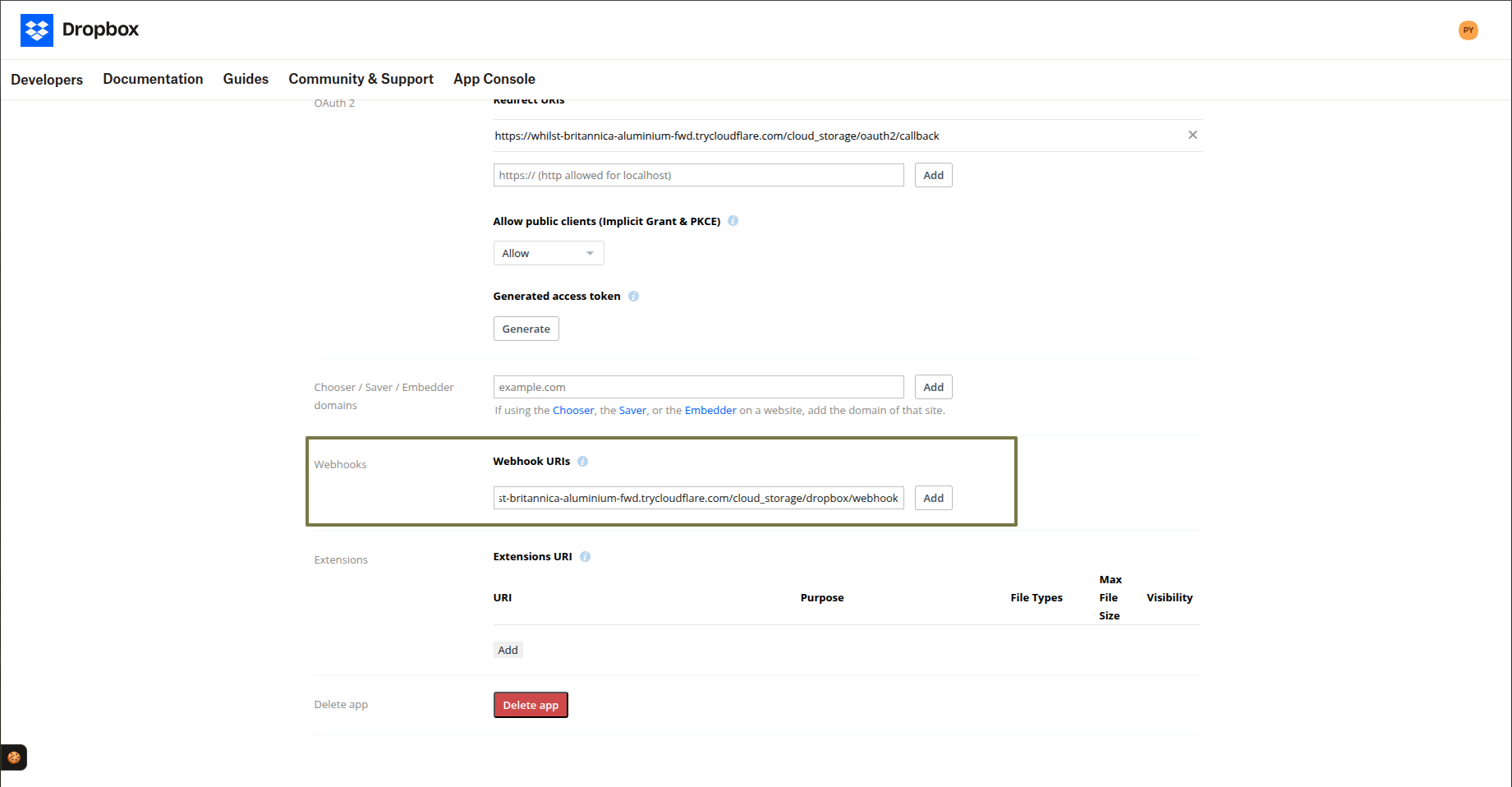

Set the OAuth2 Redirect URI matching your Odoo Dropbox handler.

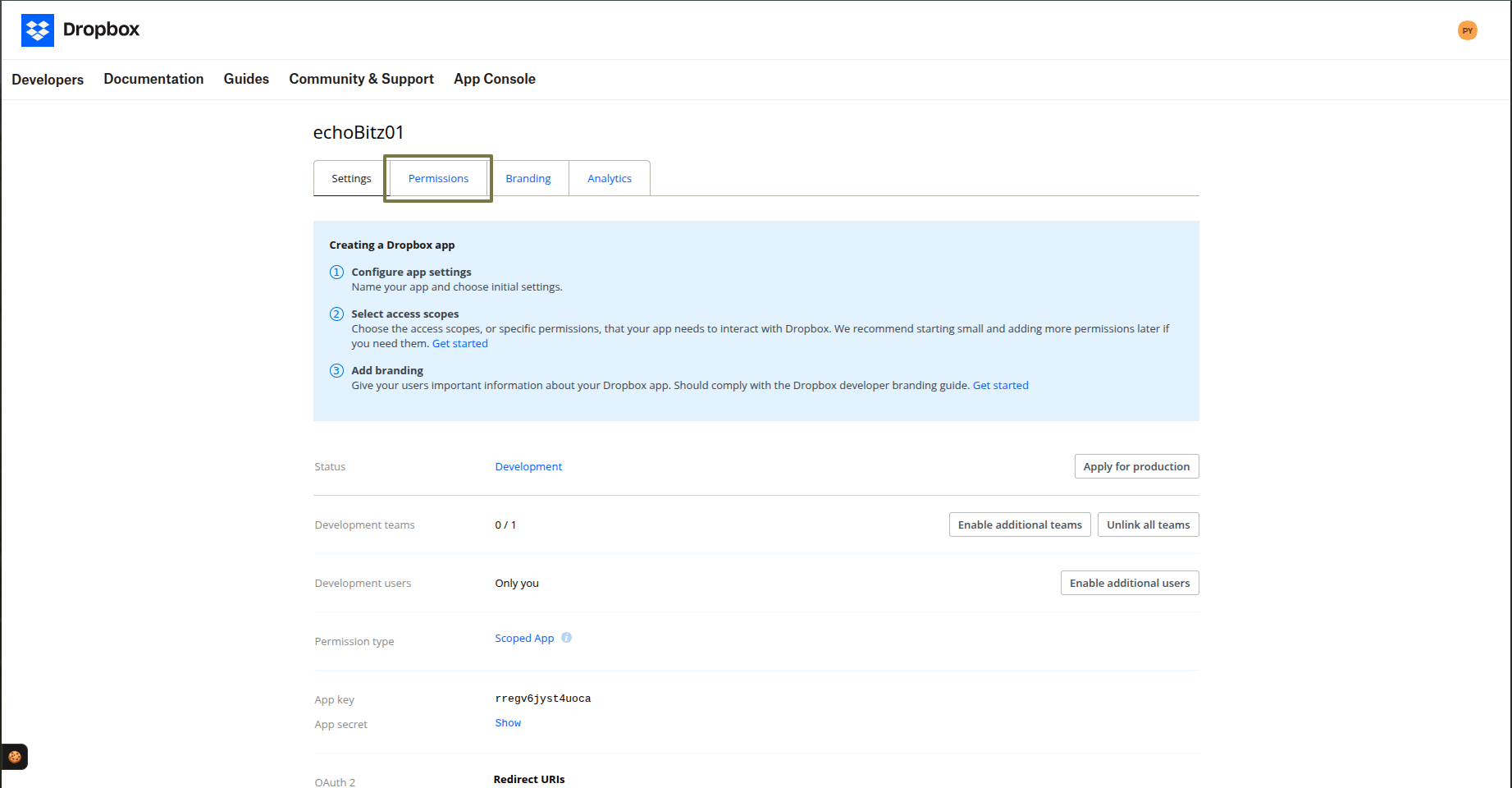

Navigate to the 'Permissions' tab to configure the required access scopes.

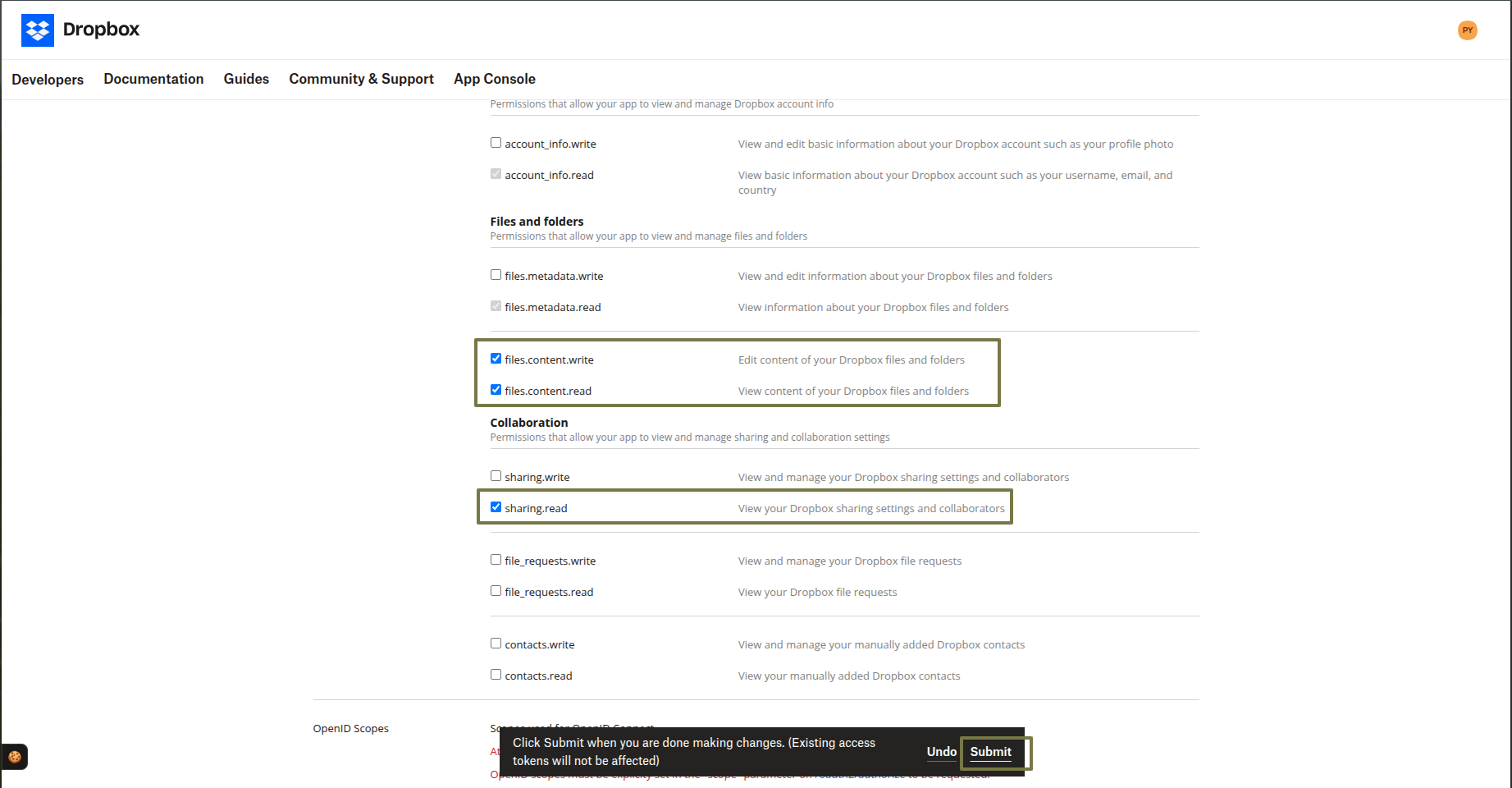

Select the required scopes like files.metadata.write, files.content.write/read.
Apply and save your permission scope changes in the Dropbox console.

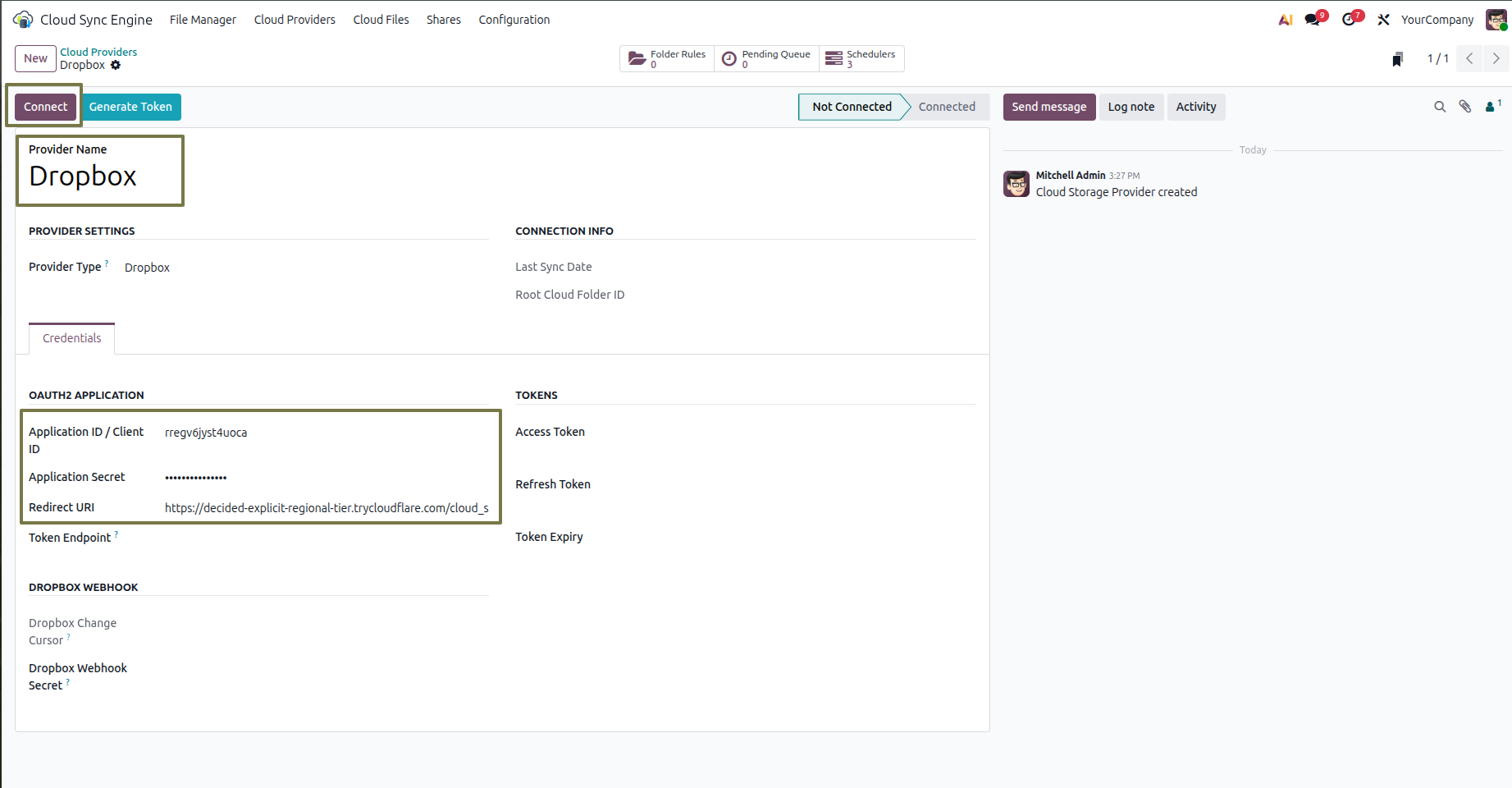

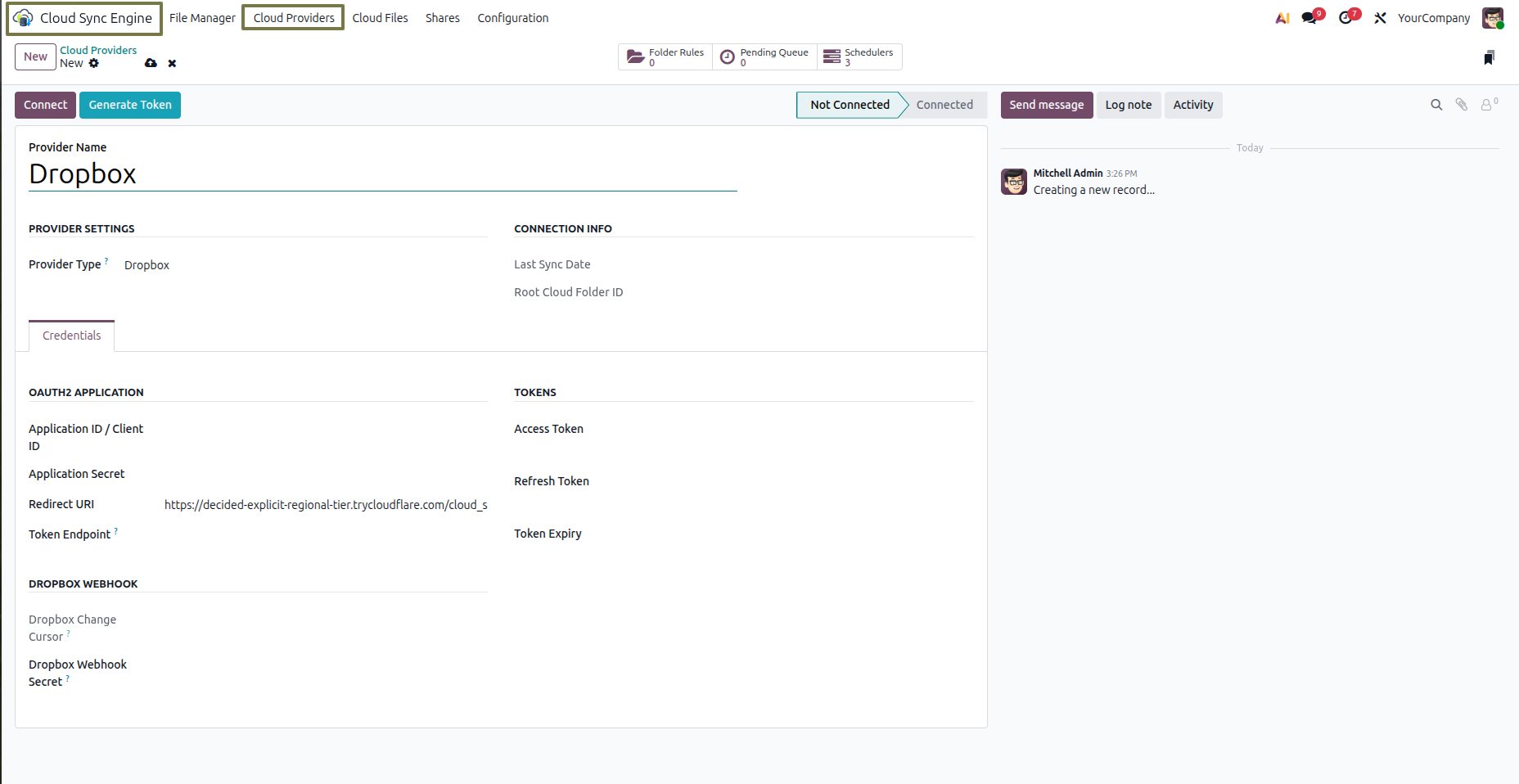

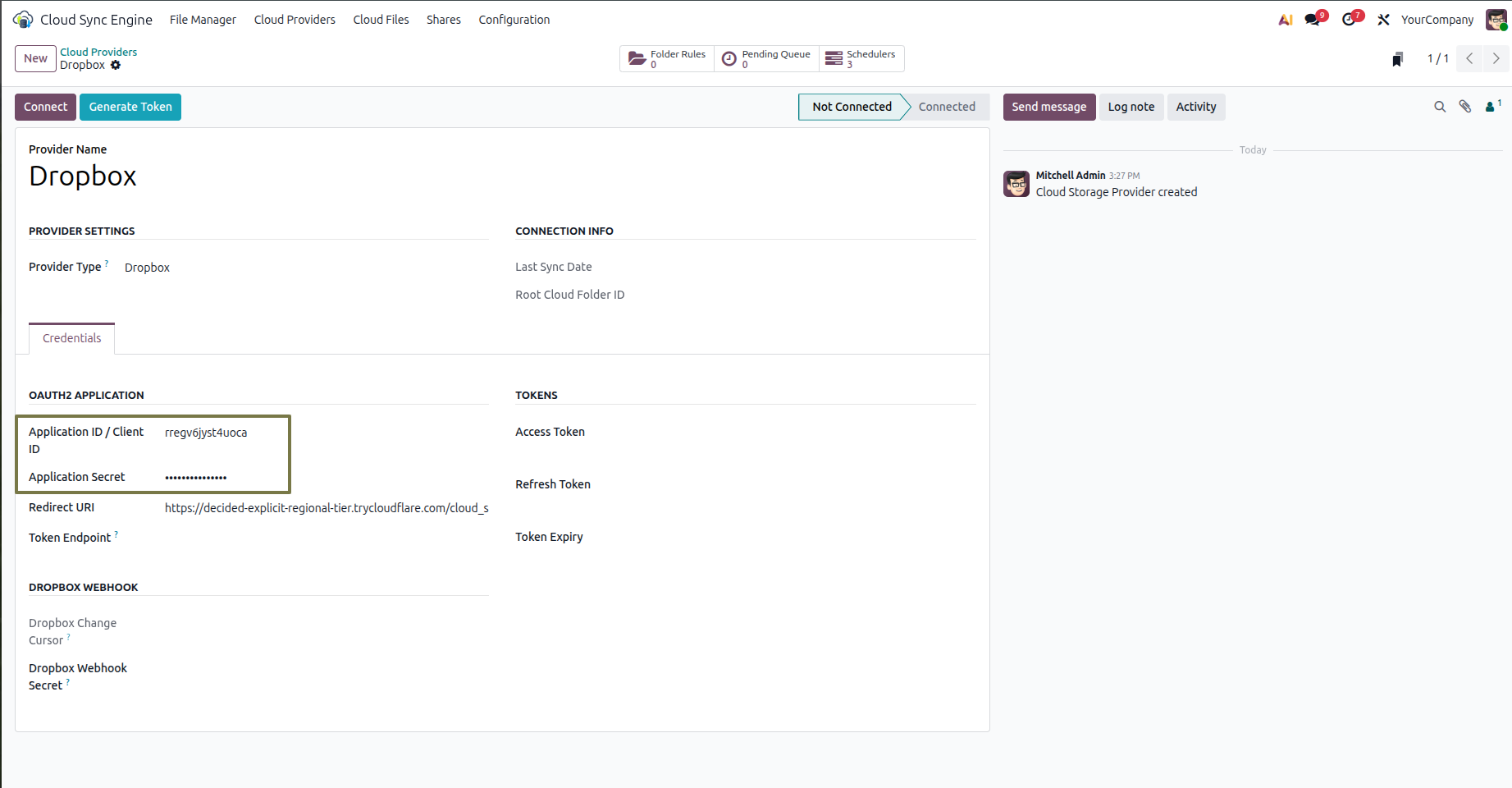

In Odoo, configure a new Cloud Provider record for Dropbox.
Click 'Connect' to initiate the Dropbox authentication process.

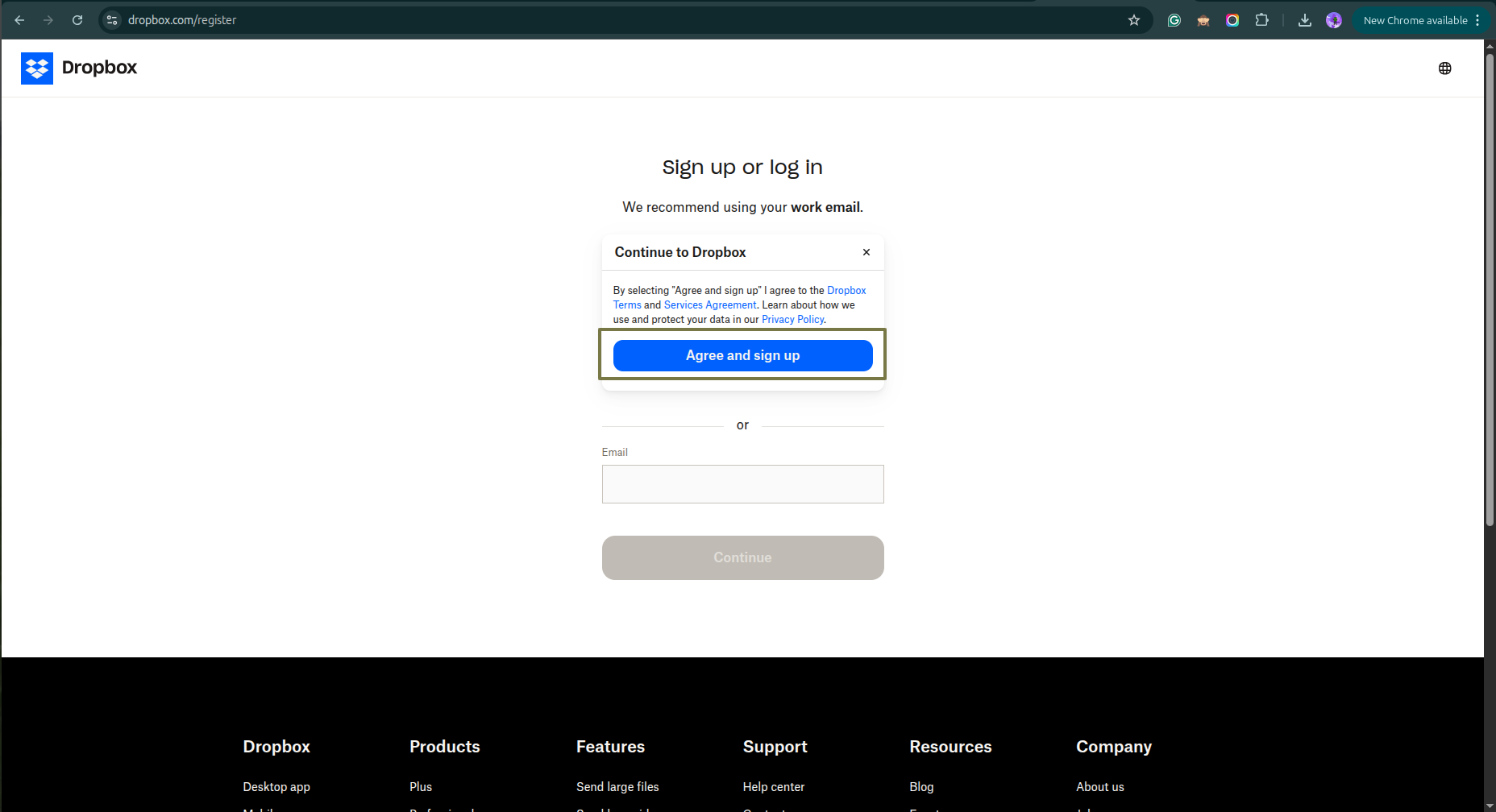

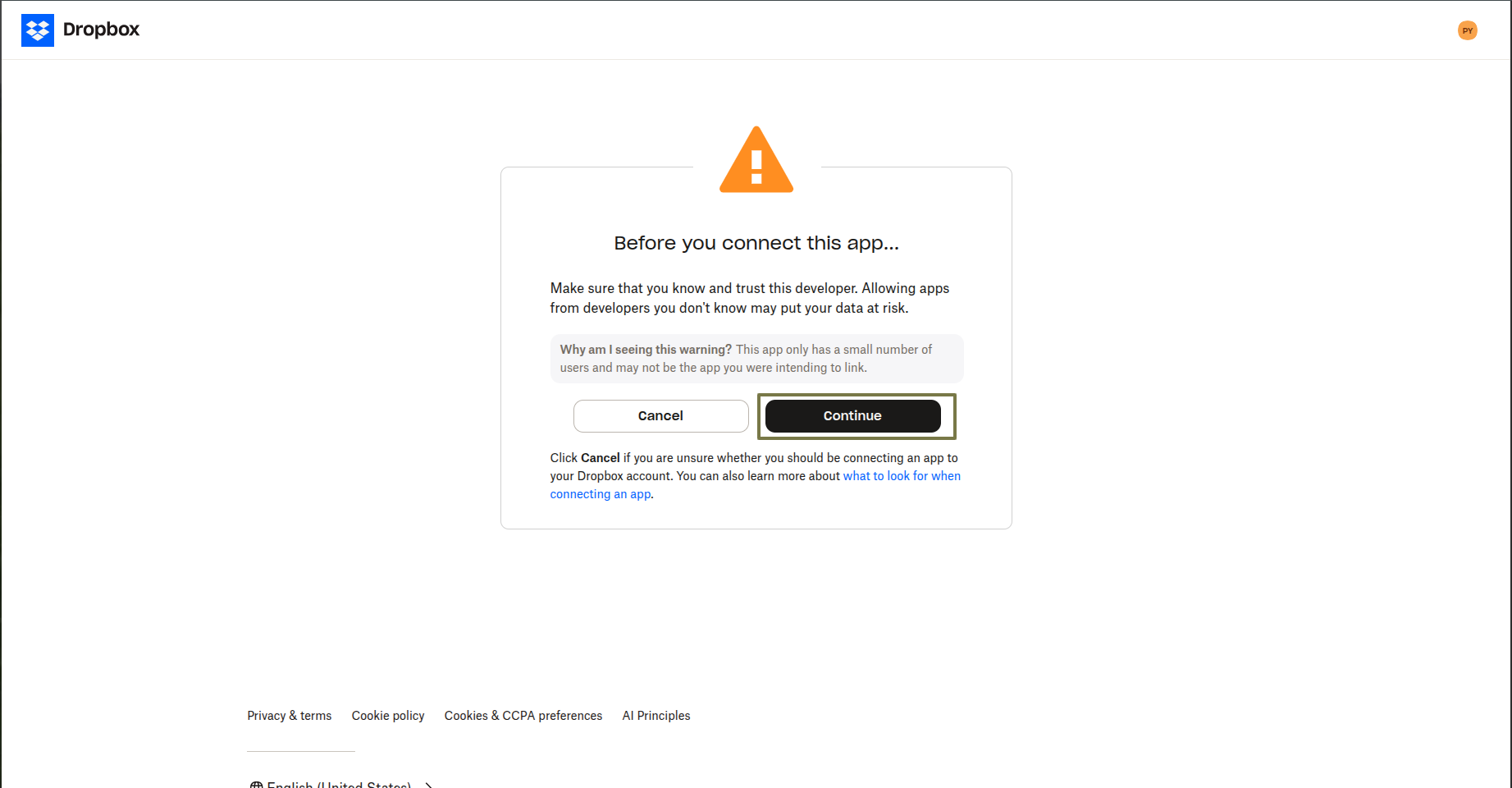

Sign in to Dropbox to authorize your Odoo integration app.

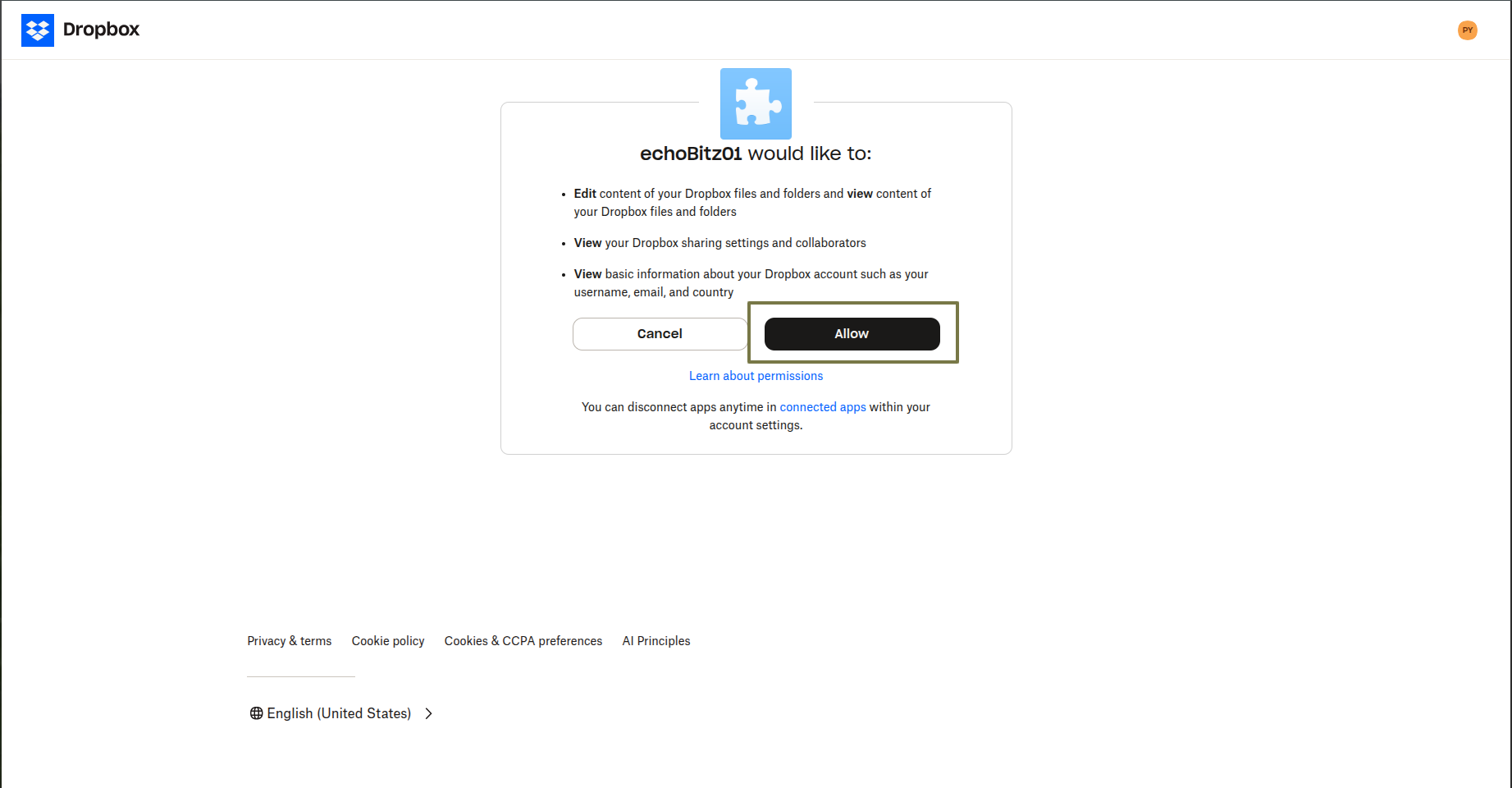

Click 'Allow' to grant folder permission request.

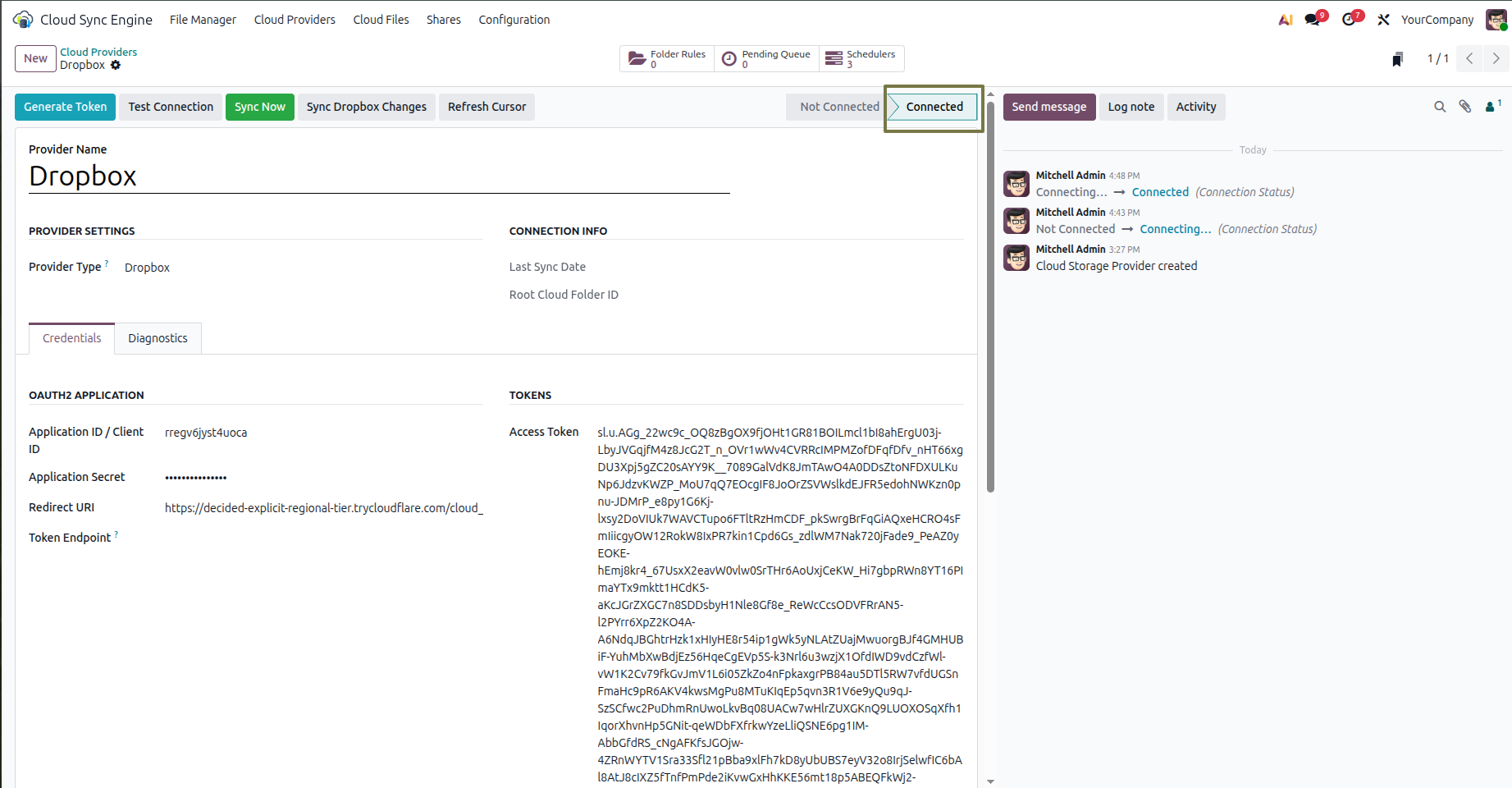

Verify the provider state transitions to 'Connected' with tokens successfully retrieved.
Create a Folder Rule for Dropbox to automatically sync model attachments.
Upload a file to Odoo chatter and check that it syncs to Dropbox.
Nextcloud Integration Configuration
Configure Nextcloud connection settings to establish WebDAV folder mapping.

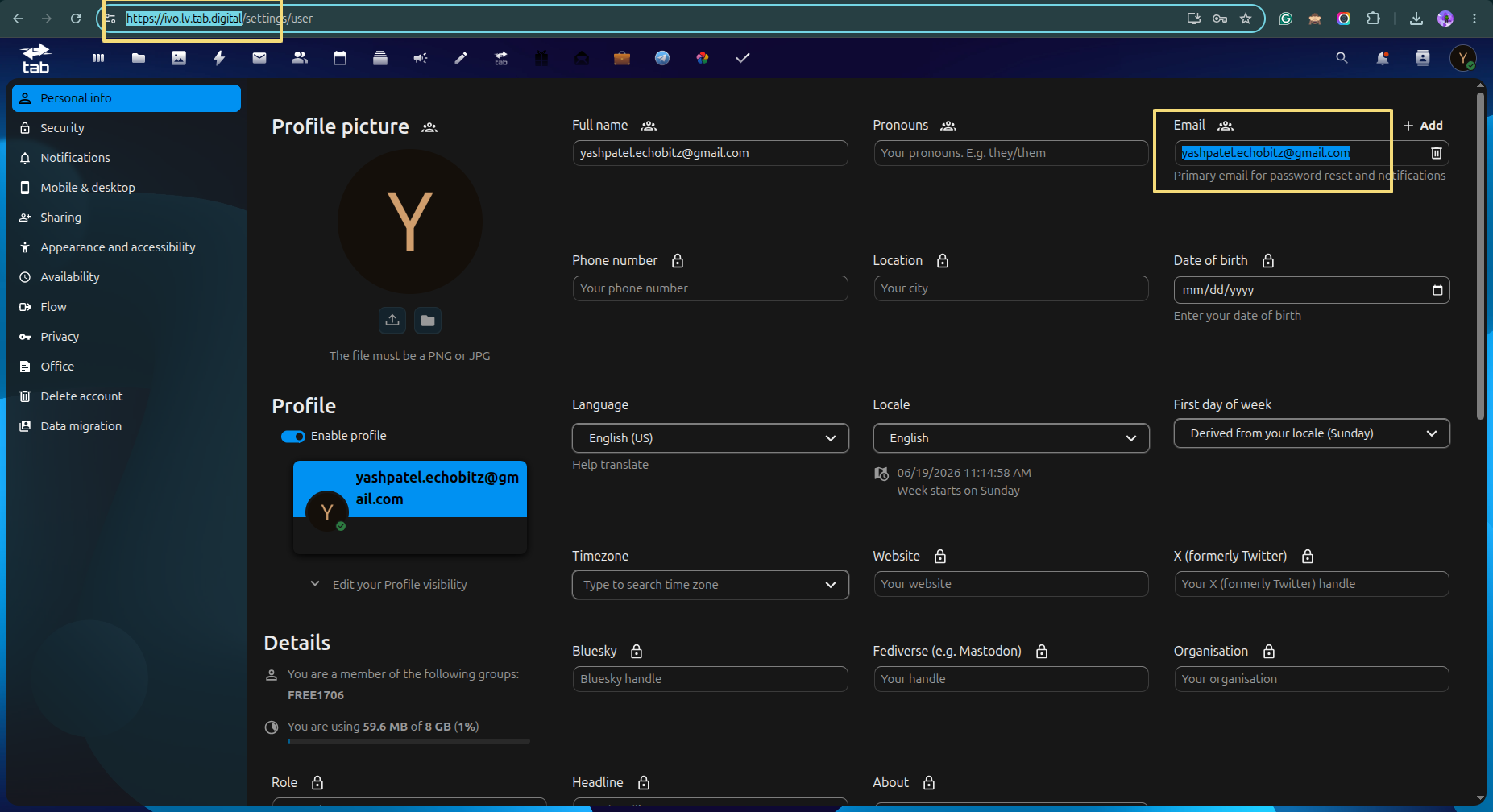

Generate a new App Password in Nextcloud Personal Security Settings.

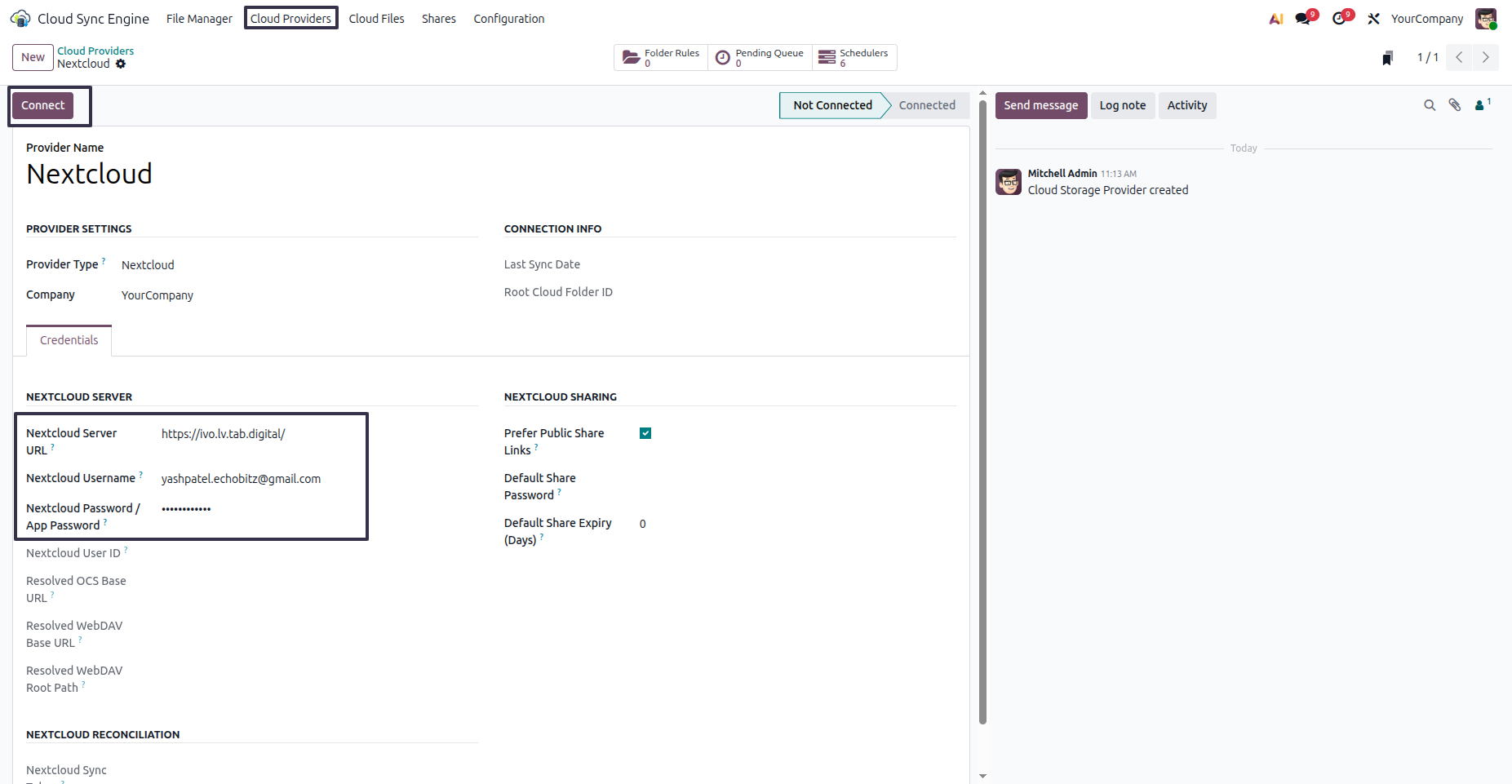

In Odoo, create a new Nextcloud provider and enter URL, username, and password.

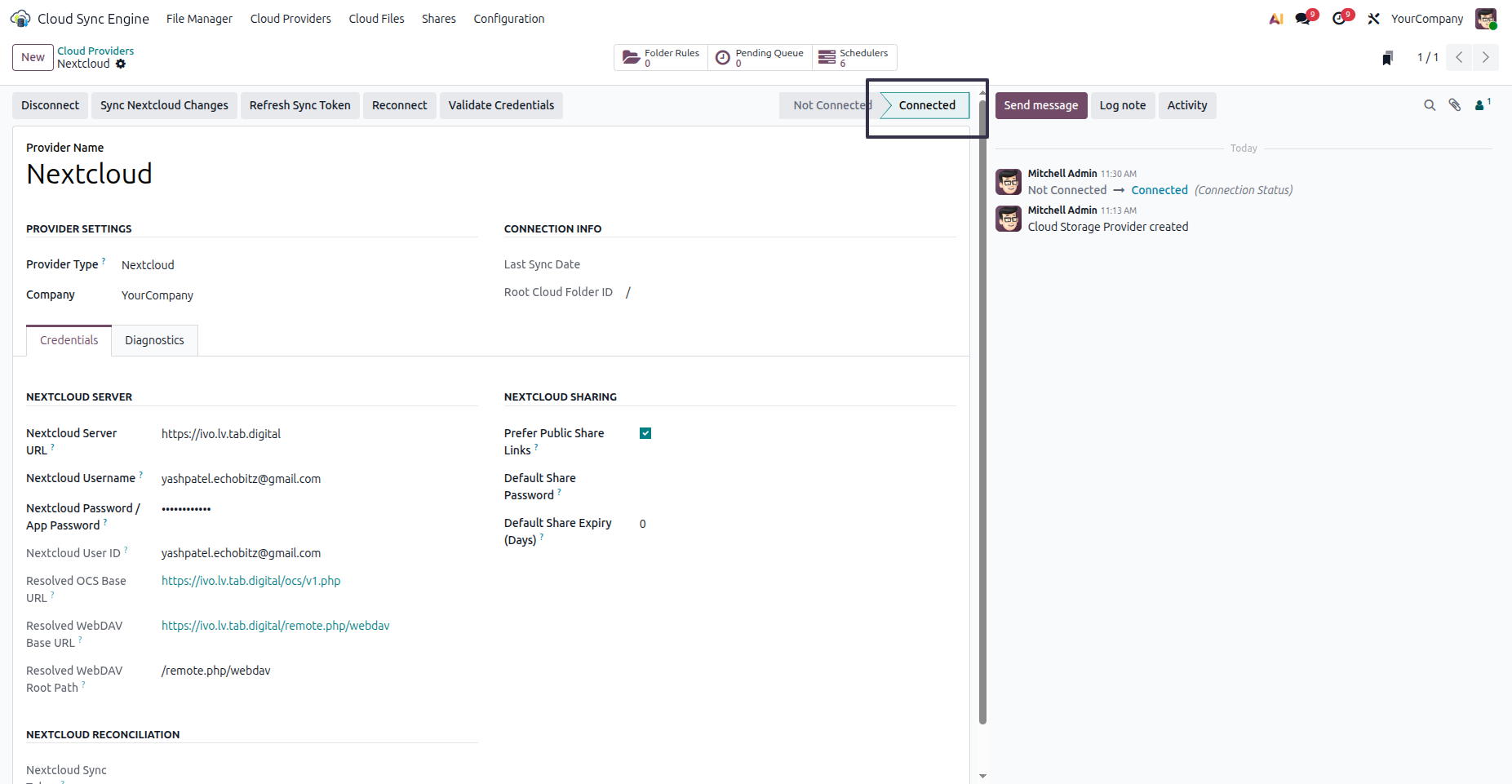

Click 'Test Connection' in Odoo to verify WebDAV API authentication.
Amazon S3 Integration Configuration
Configure AWS IAM permissions, Create S3 Buckets, and connect Odoo to S3 Storage step-by-step.

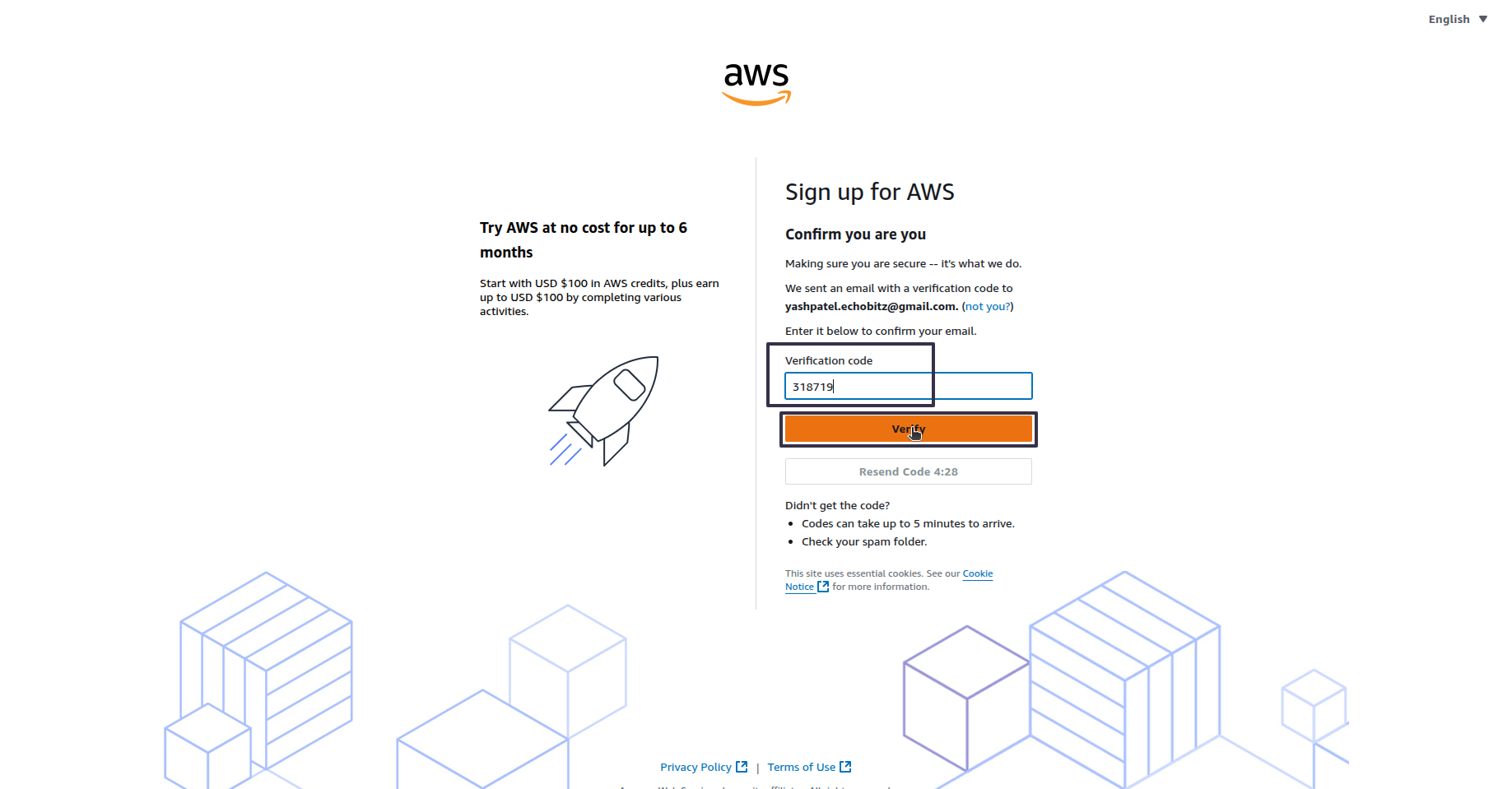

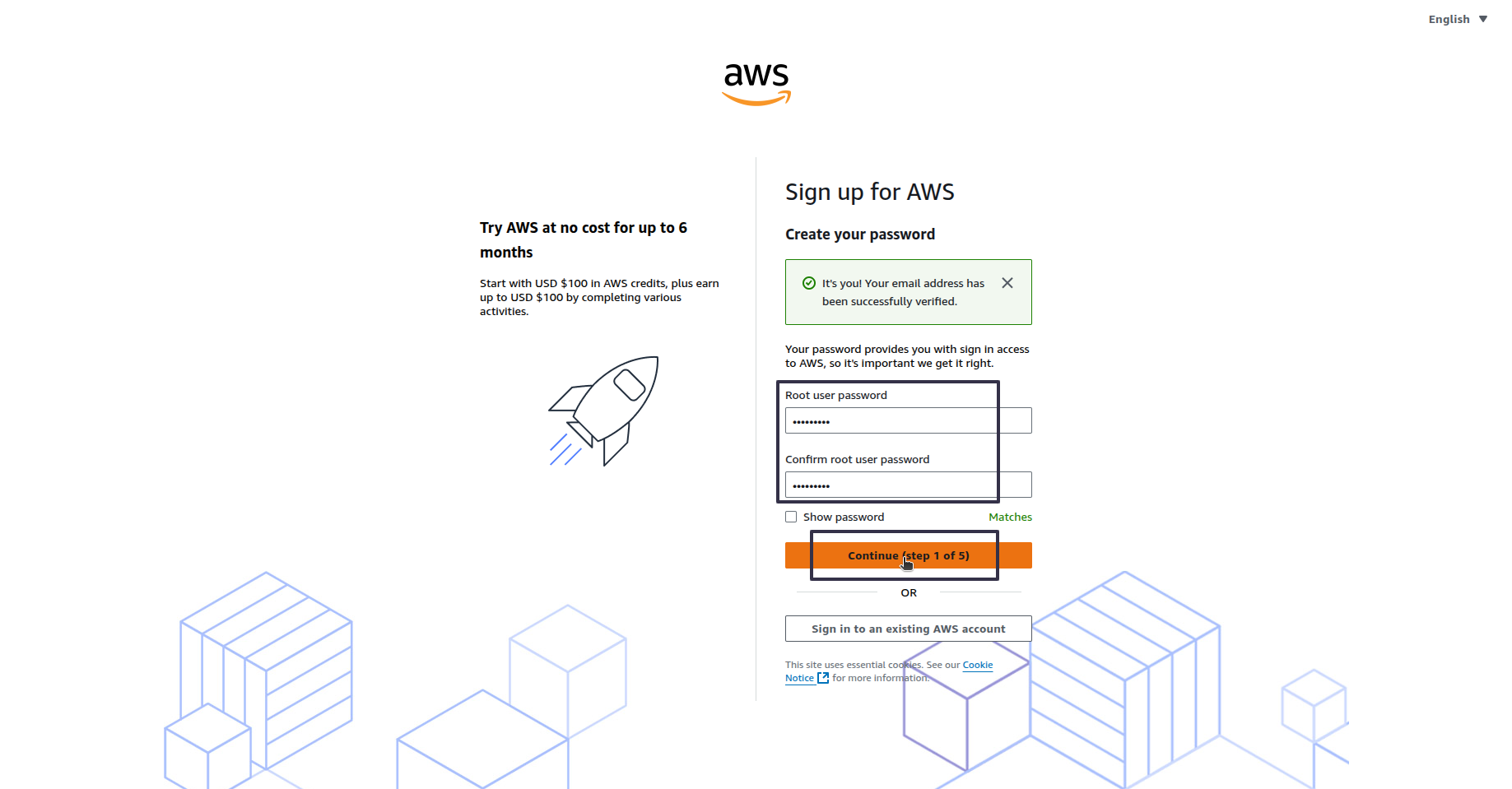

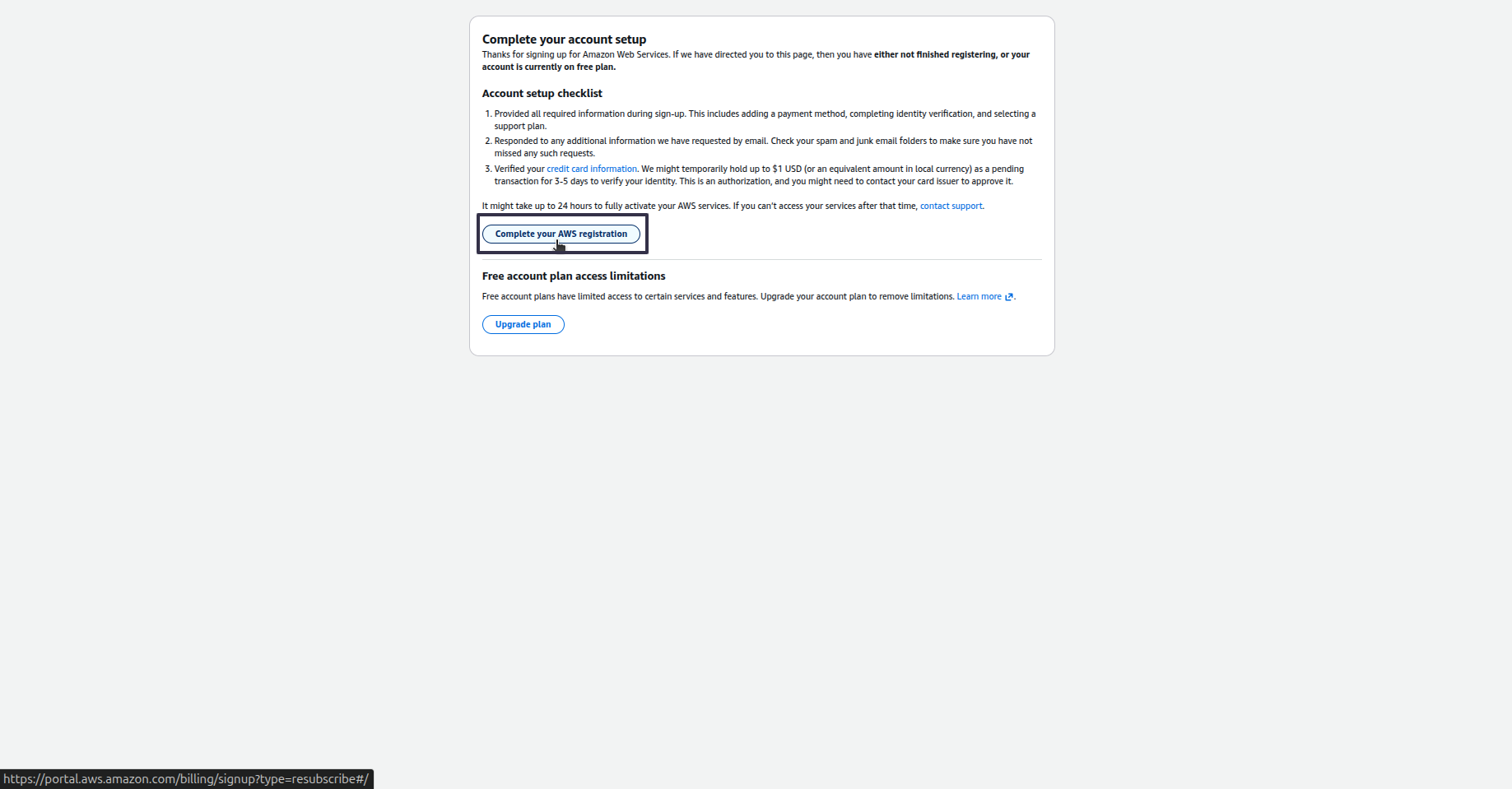

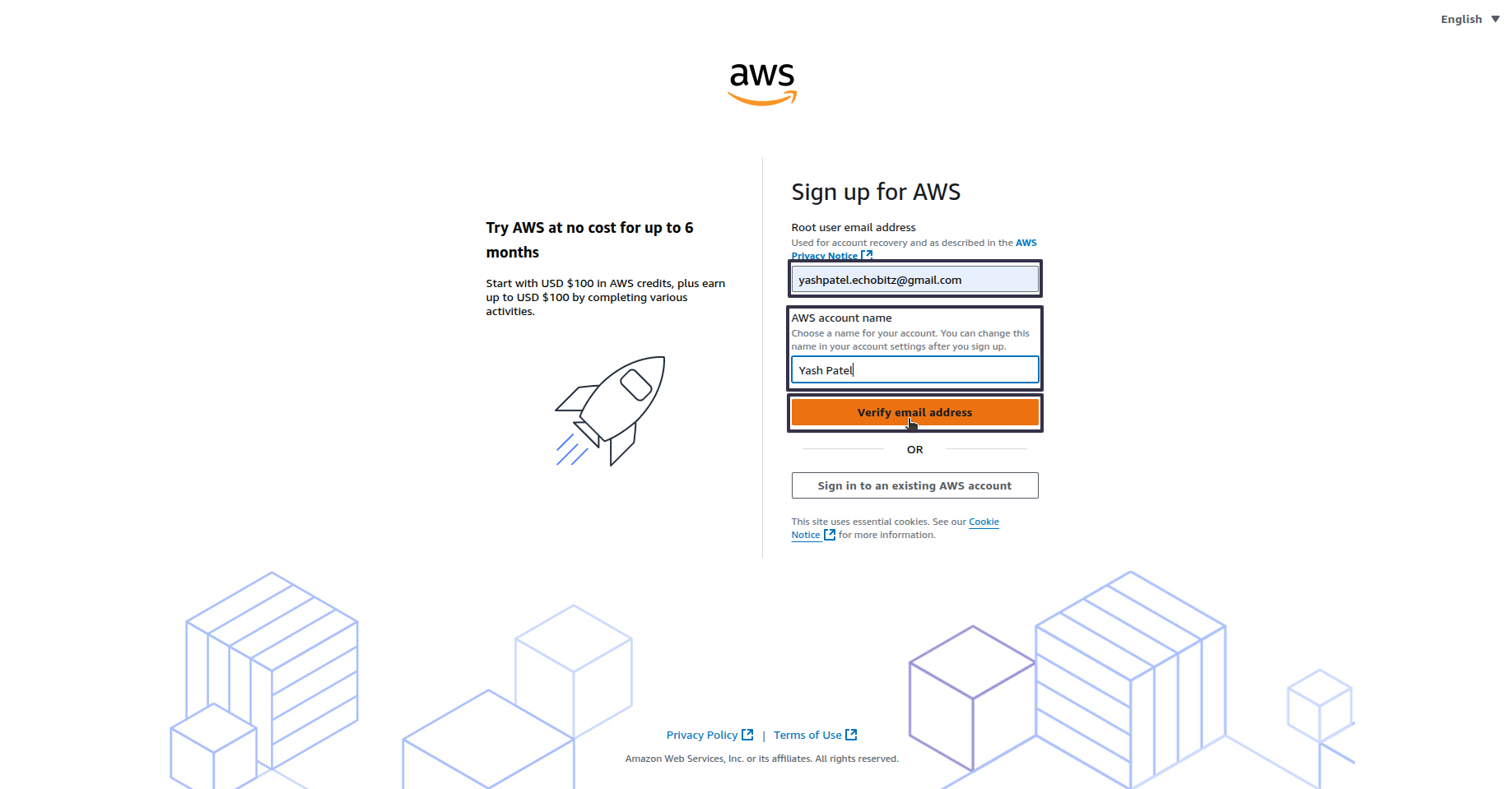

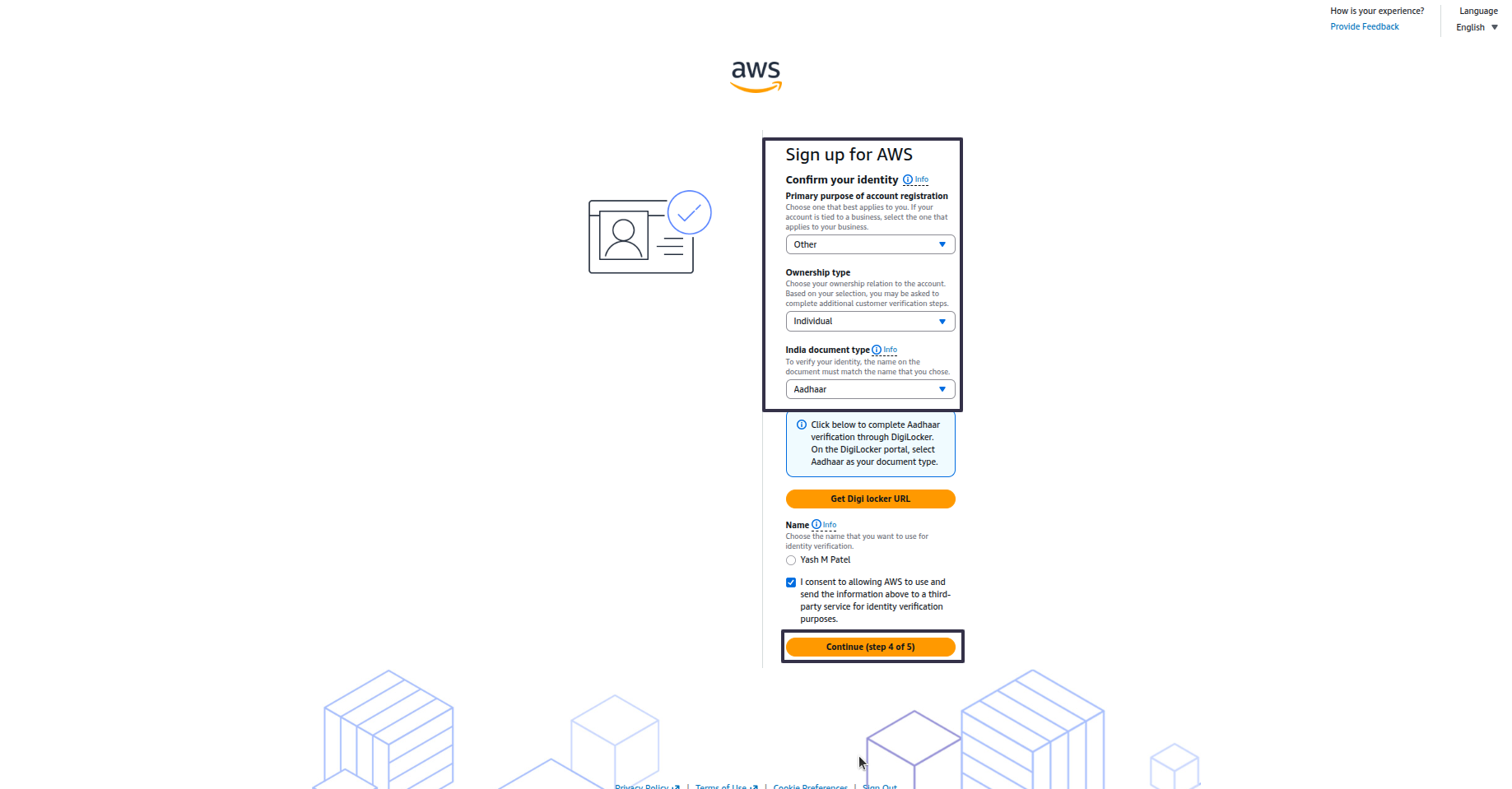

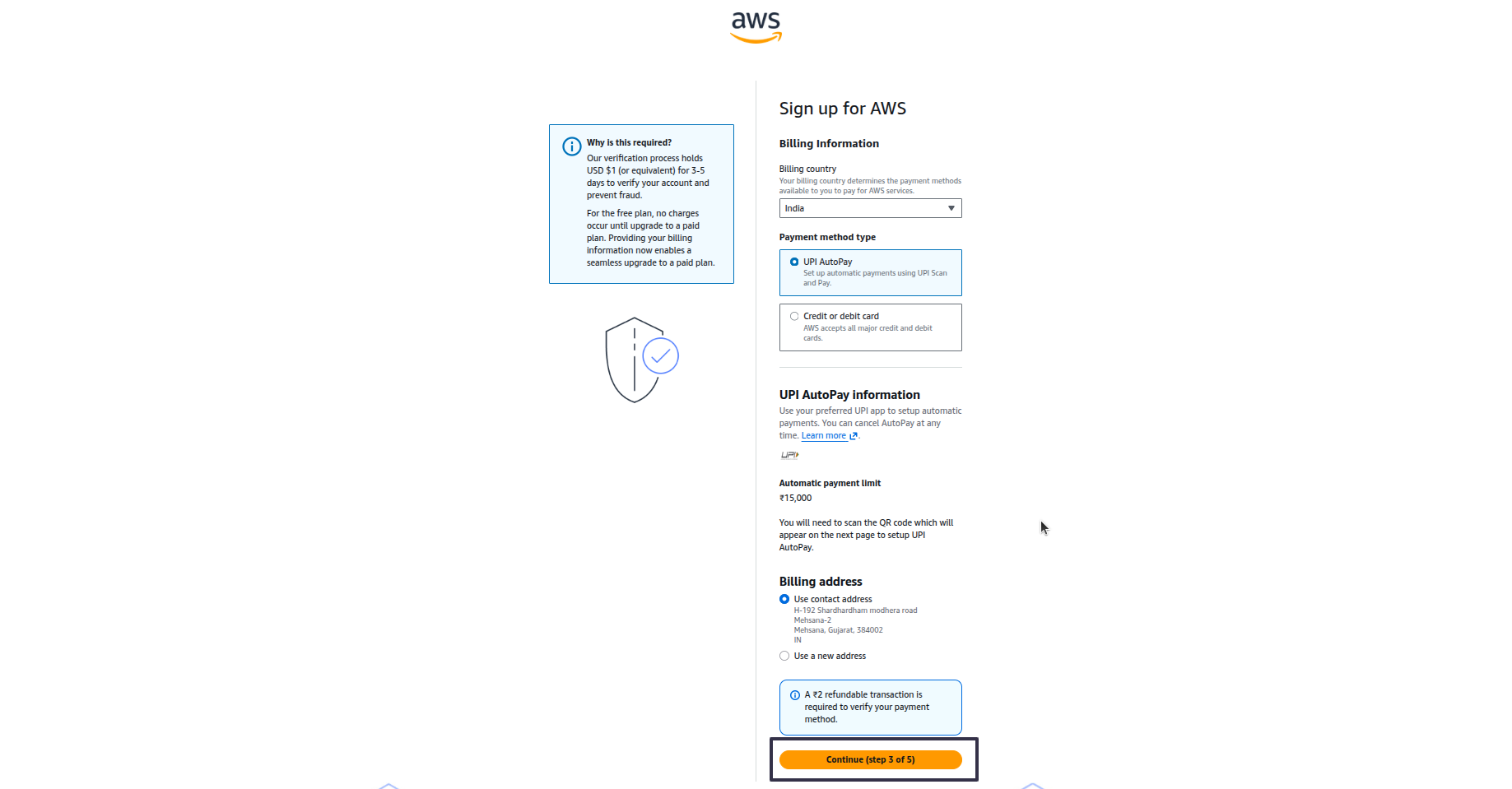

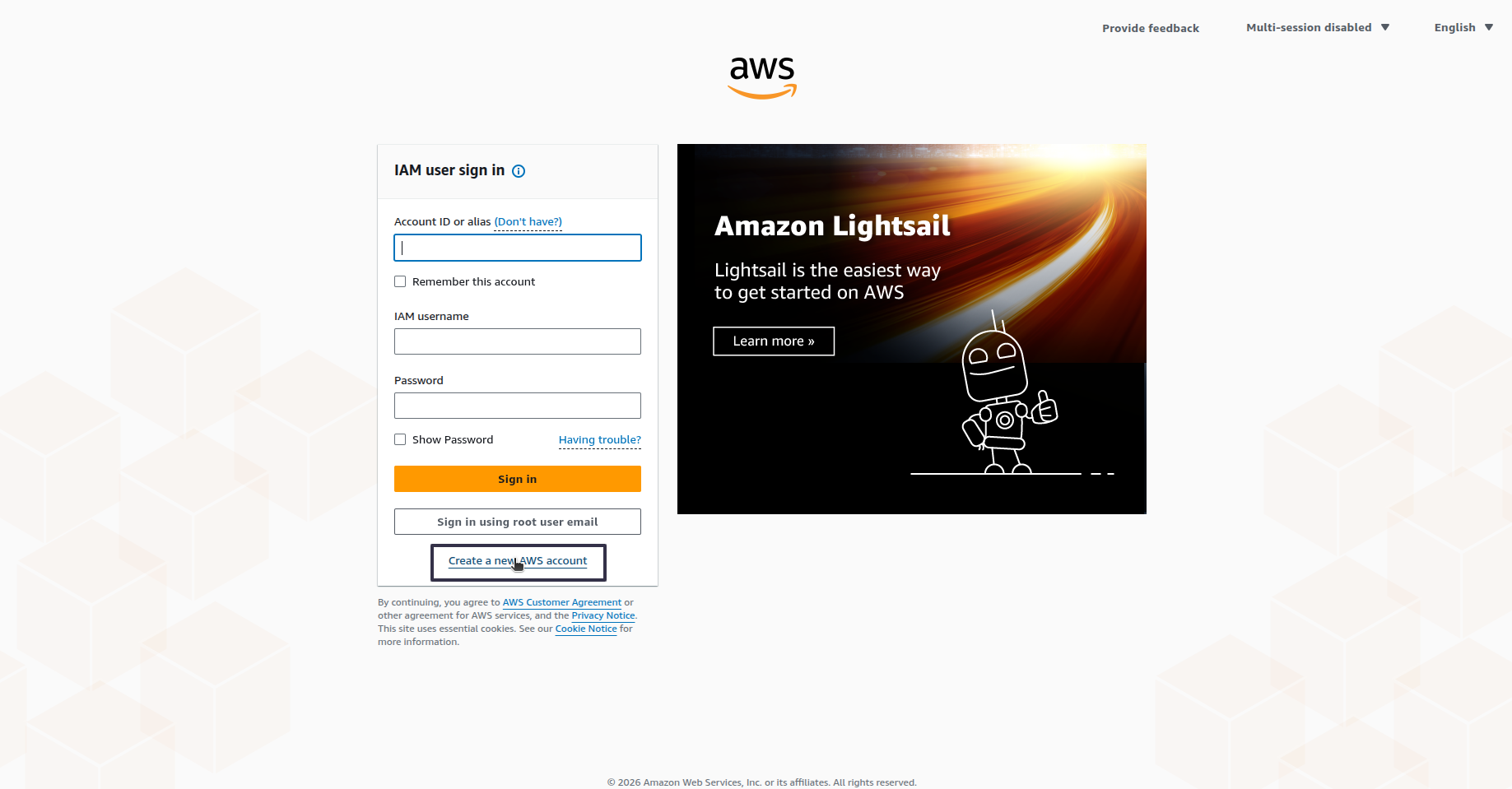

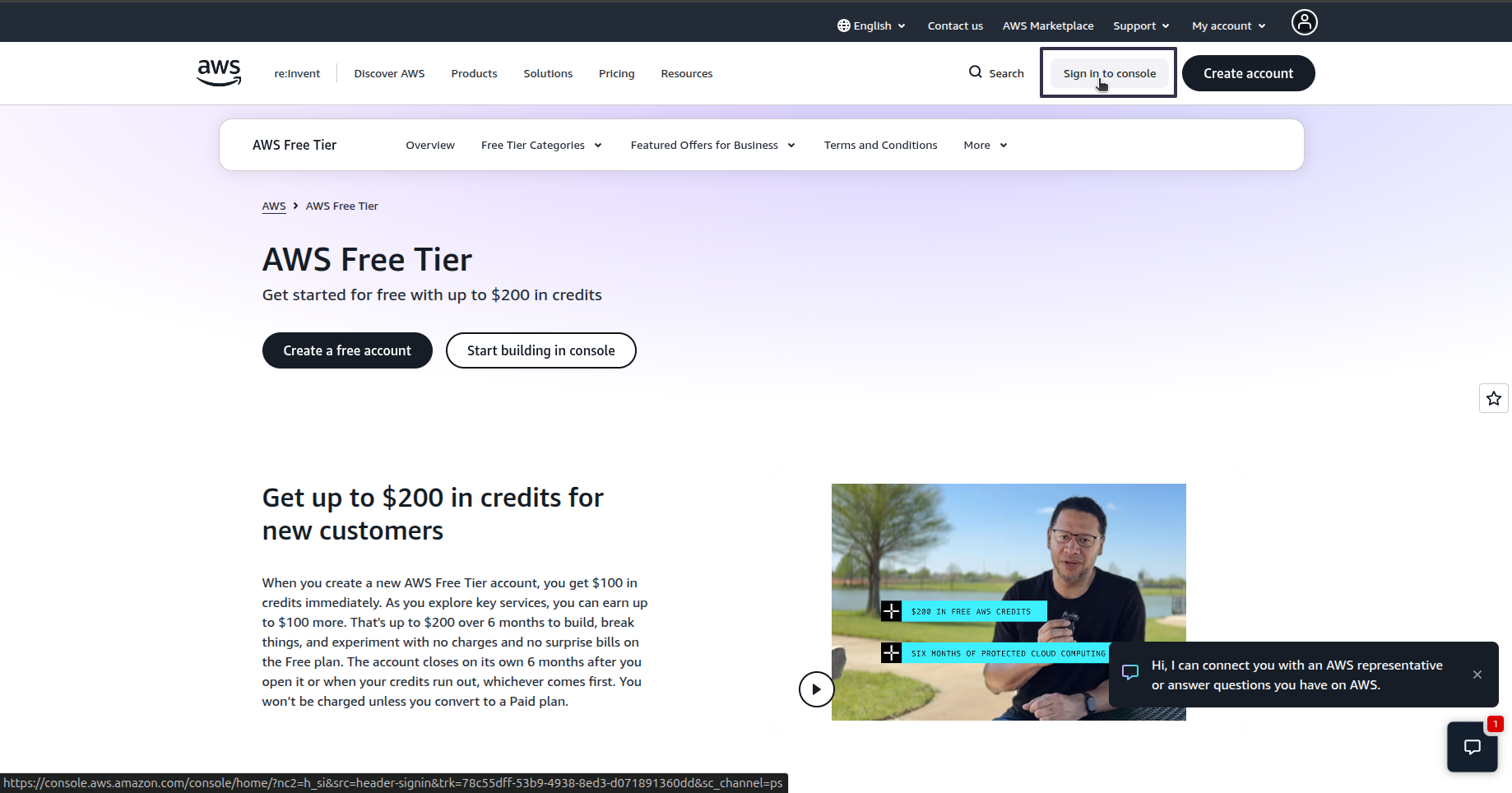

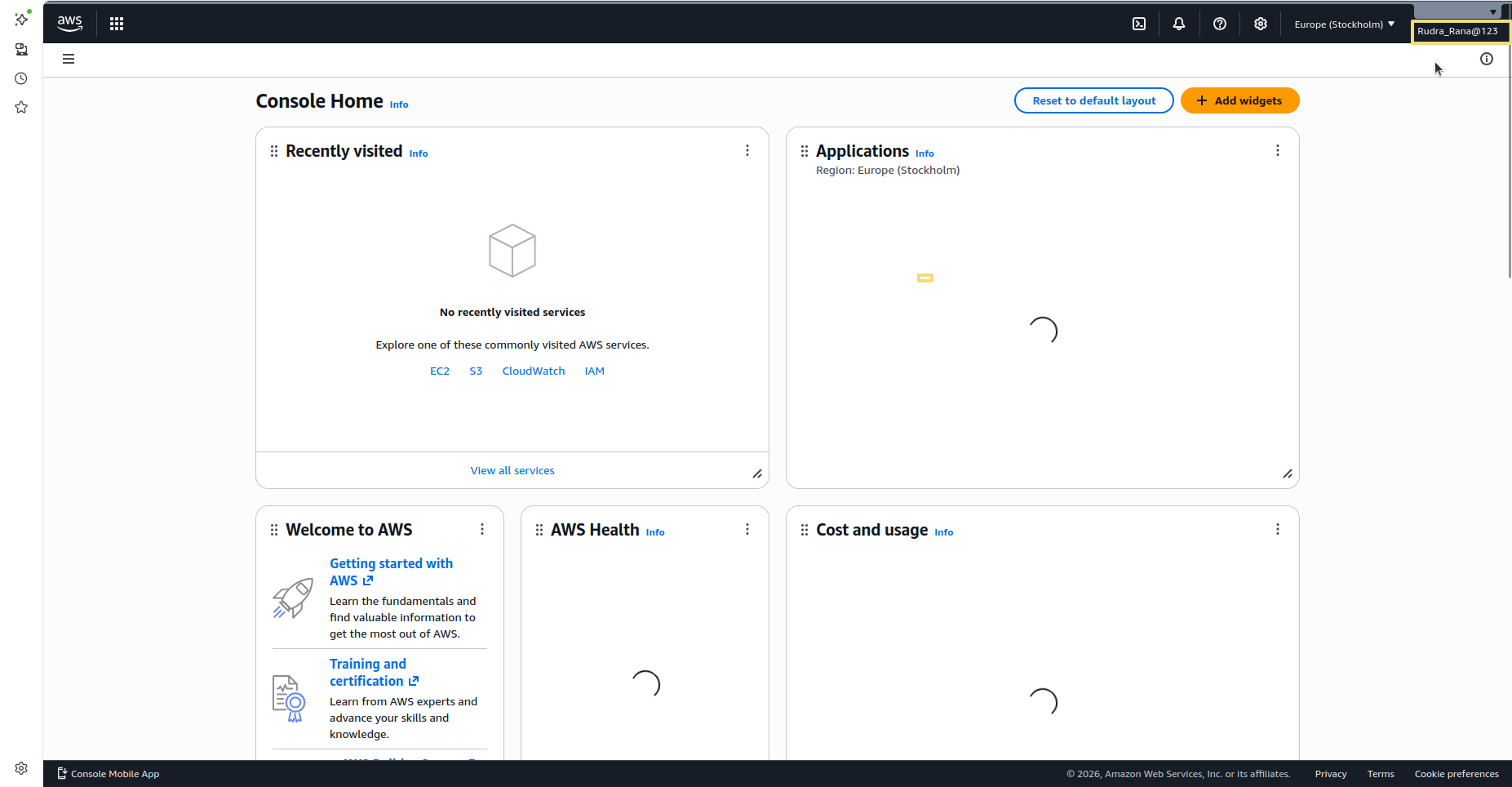

Sign in to your AWS Management Console dashboard.

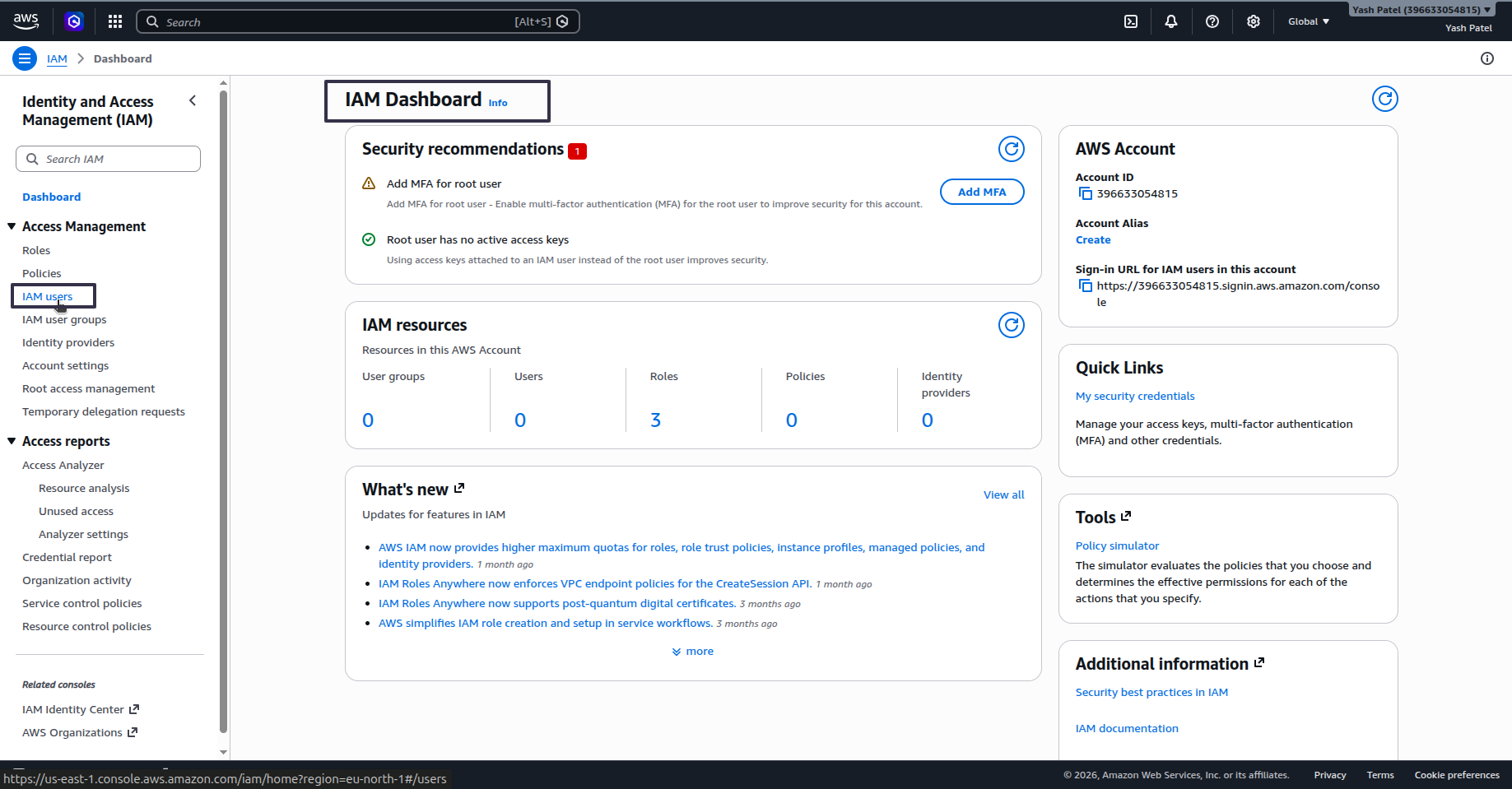

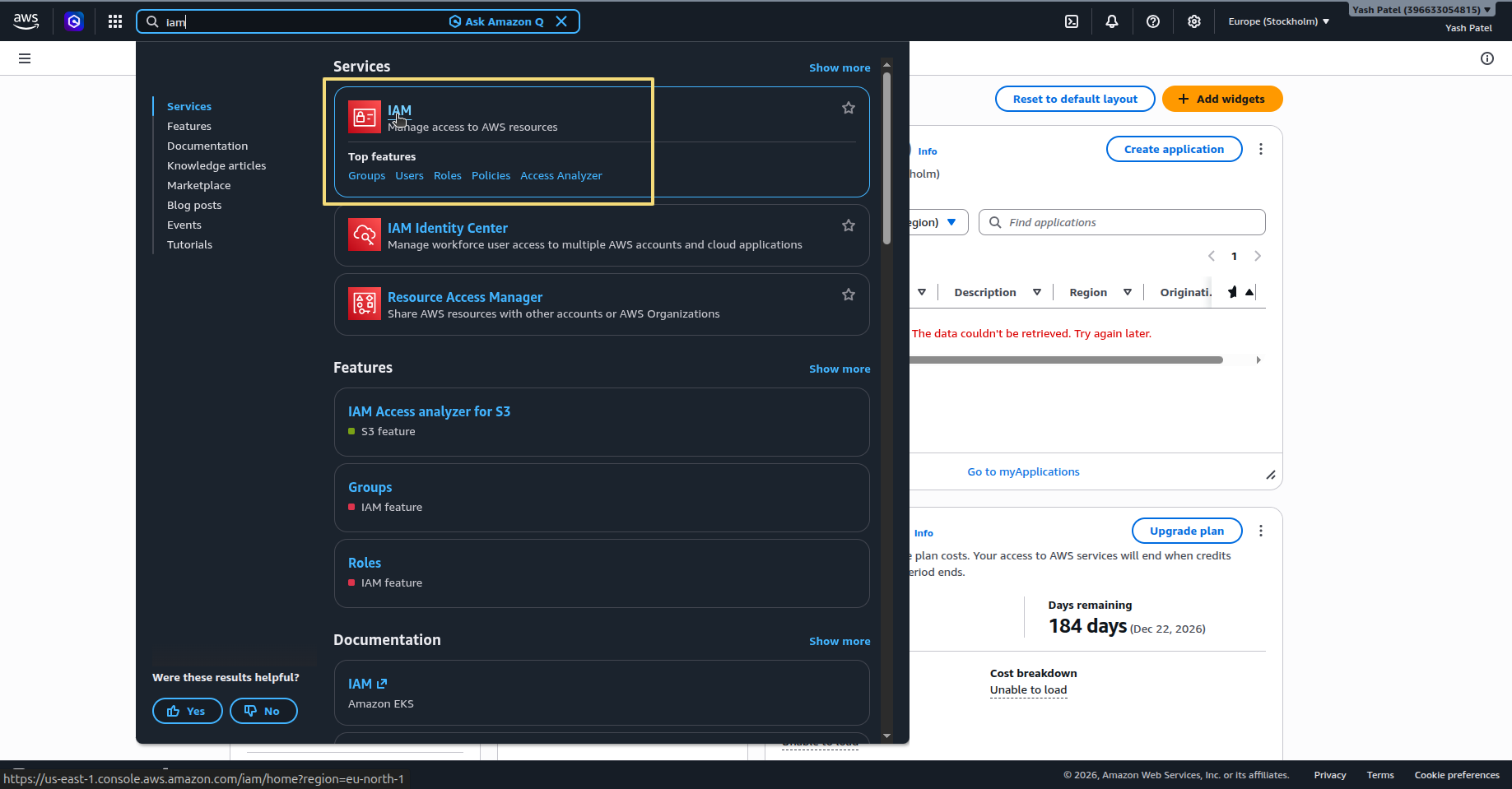

Locate and open the IAM (Identity and Access Management) console.
Navigate to Policies and click 'Create policy' for S3 access.
Select S3 service and choose PutObject, GetObject, DeleteObject, ListBucket permissions.
Define the bucket resources and click Next to add metadata tags.
Provide a descriptive policy name and review the JSON structure.
Click 'Create policy' to finalize the S3 access policy configuration.

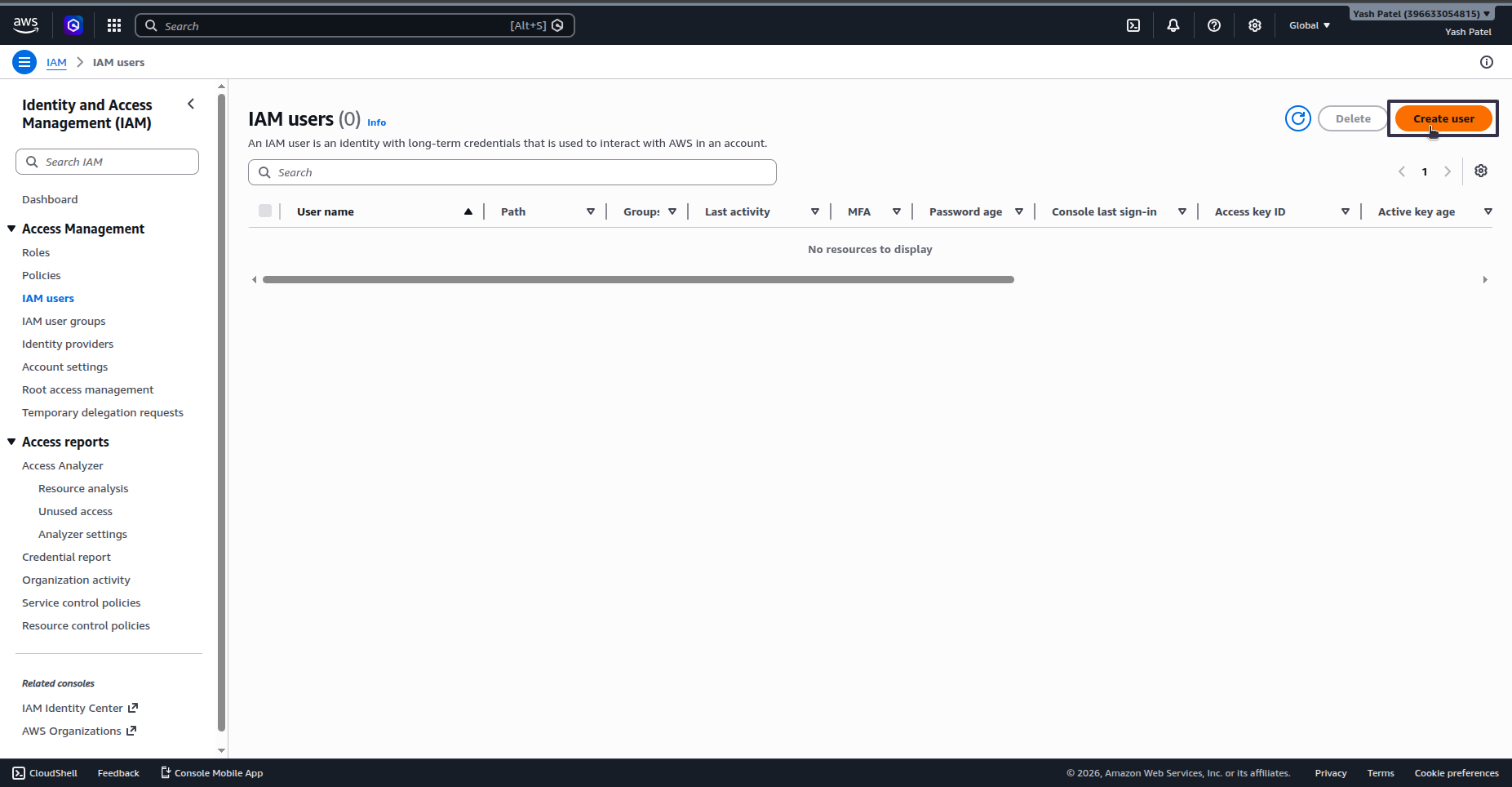

Go to Users and click 'Create user' to add an application credentials user.

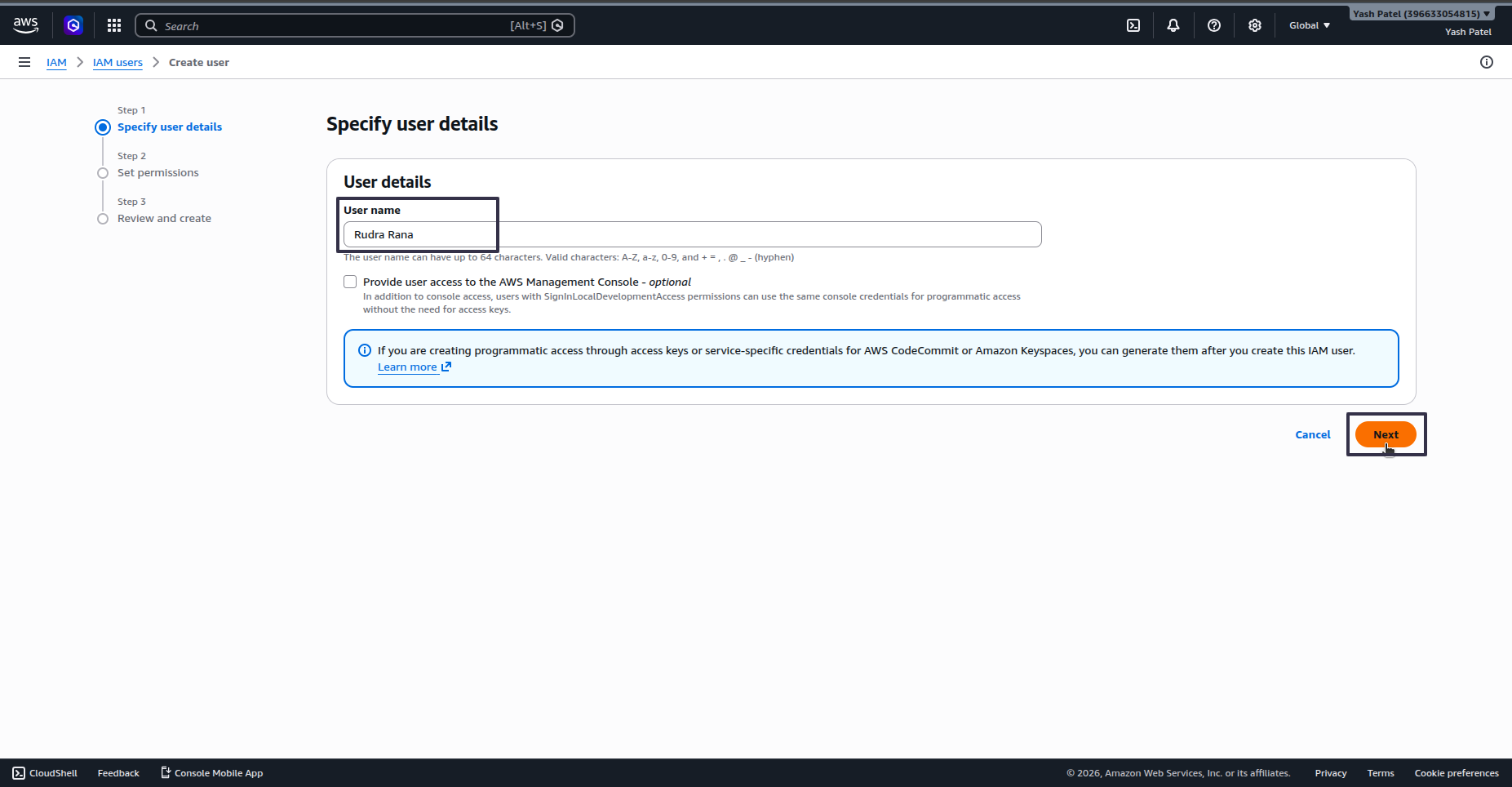

Enter a username and proceed to specify permissions configurations.

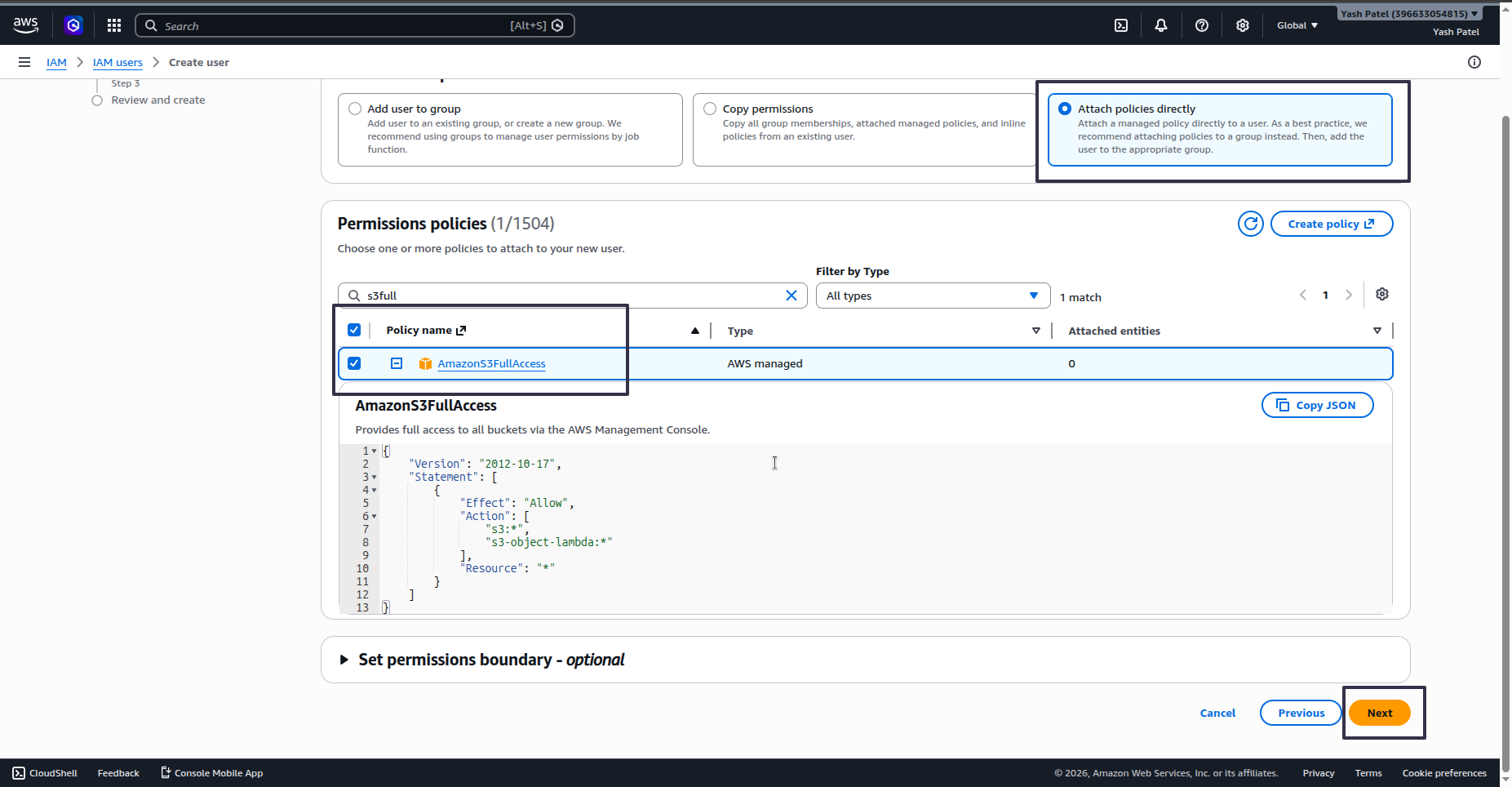

Choose 'Attach policies directly' and select the policy you created.

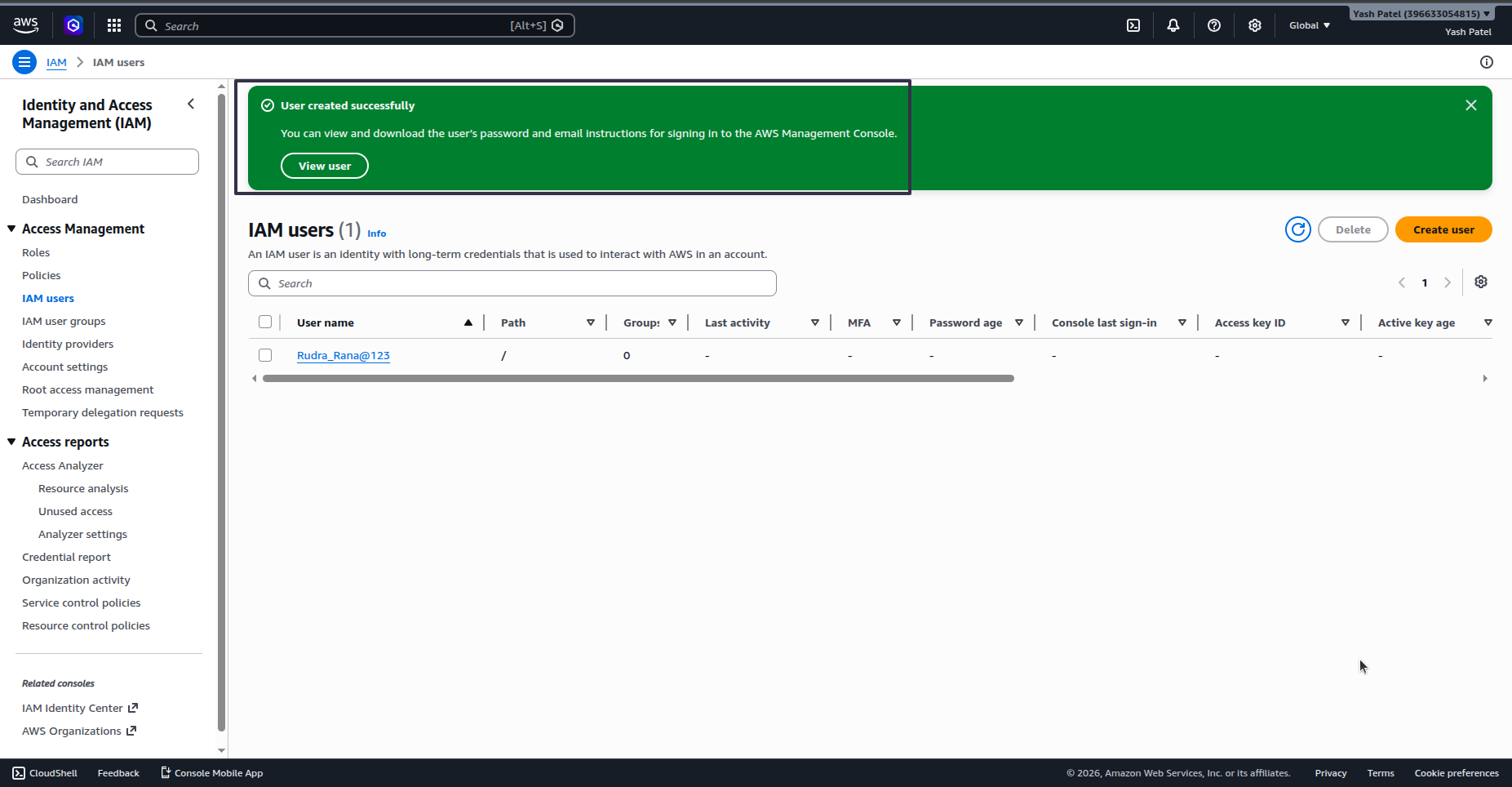

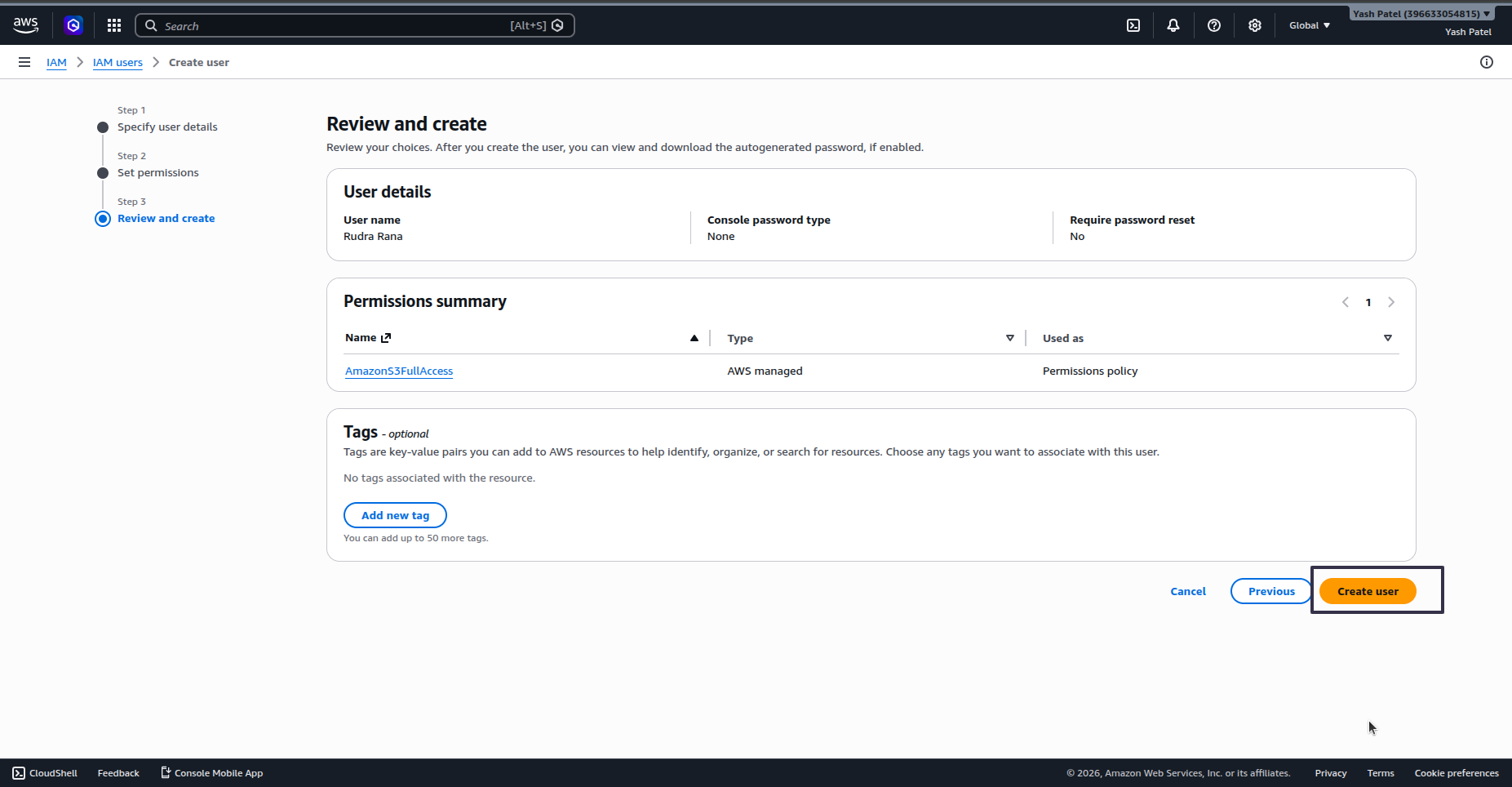

Verify user details and click 'Create user' at the bottom.
Open the newly created IAM user profile page from the user list.

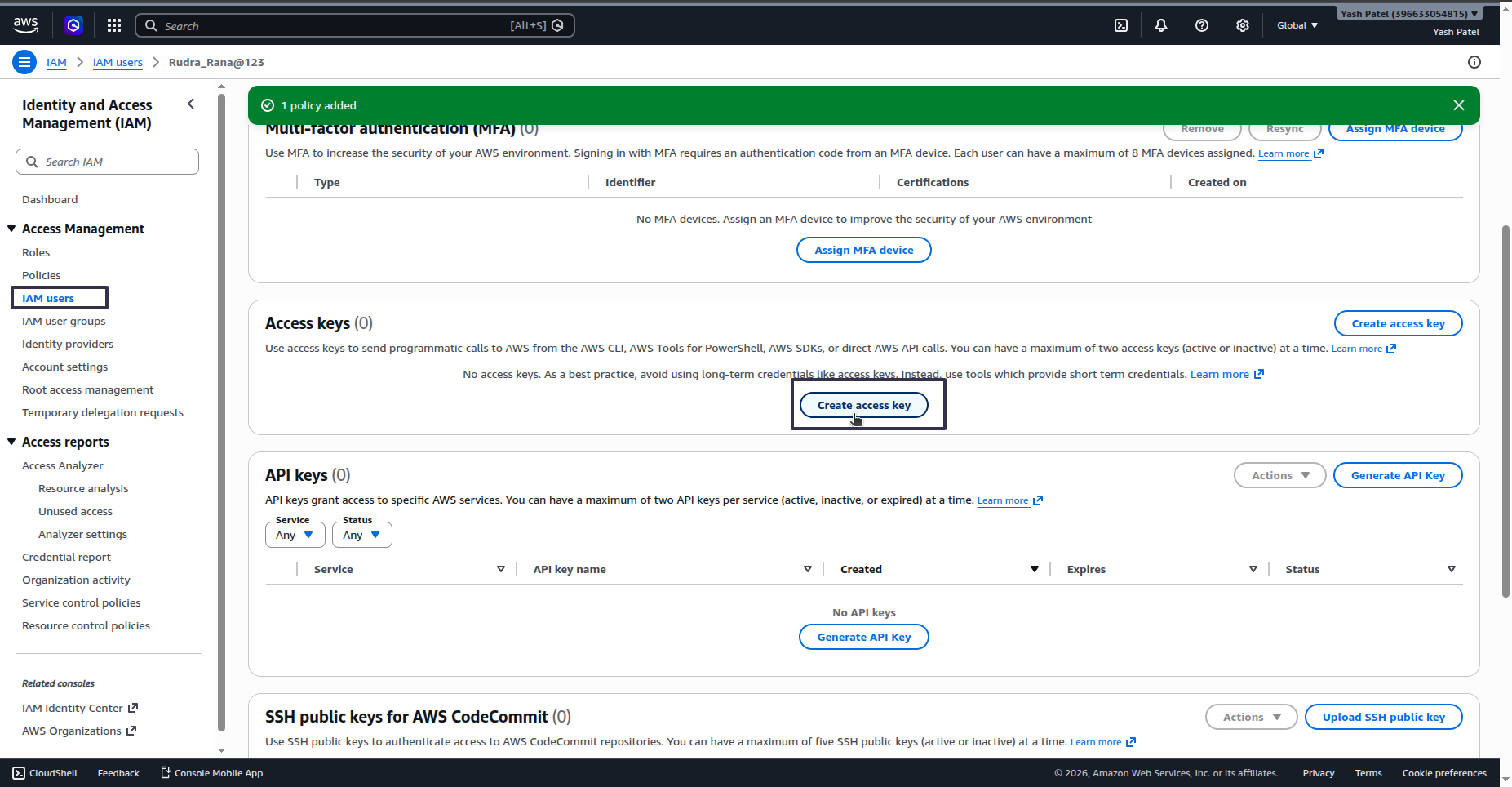

Navigate to 'Security credentials' and click 'Create access key'.

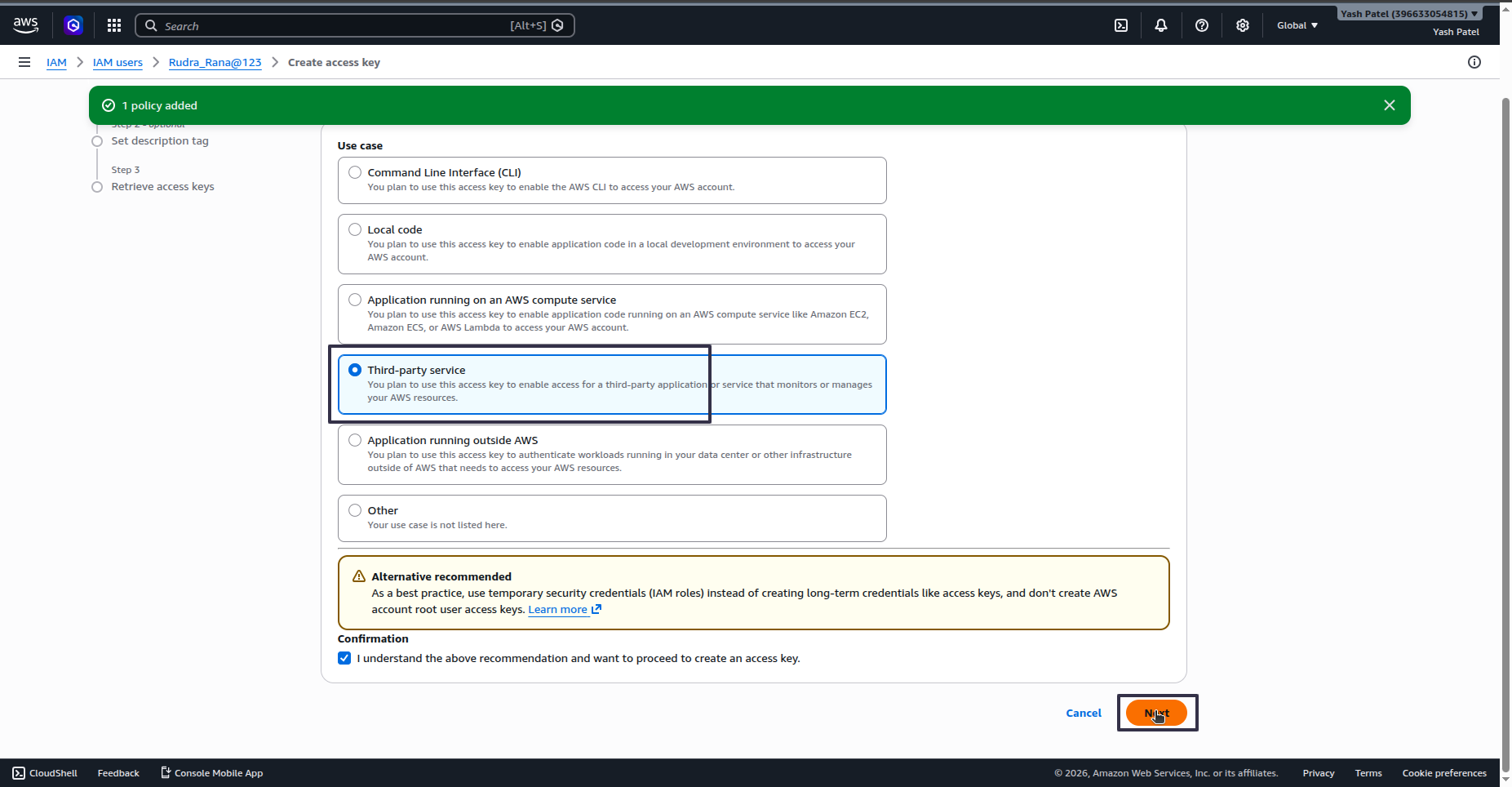

Select 'Application running outside AWS' as the access key use case.

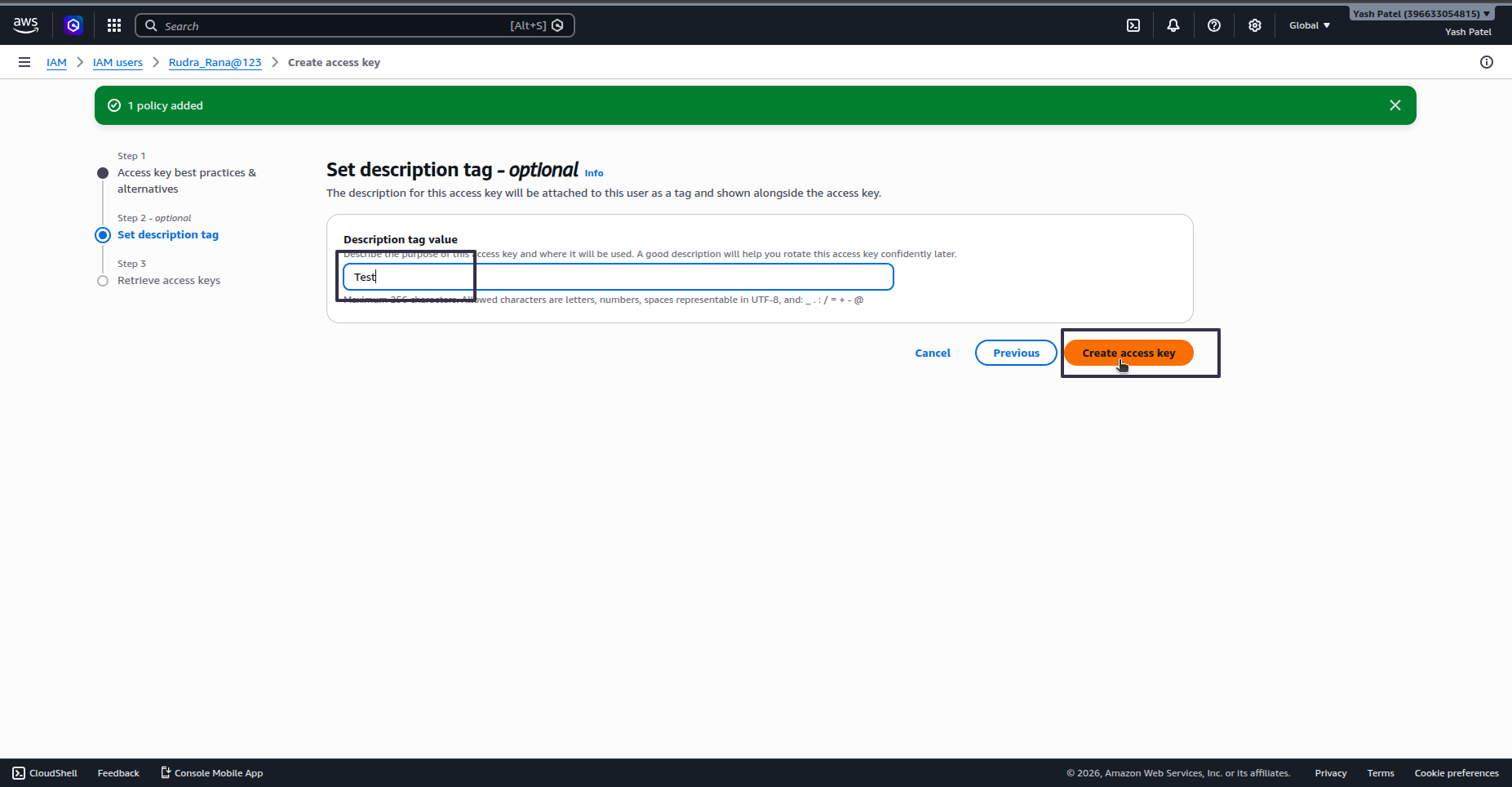

Set an optional tag name to document the key's usage.

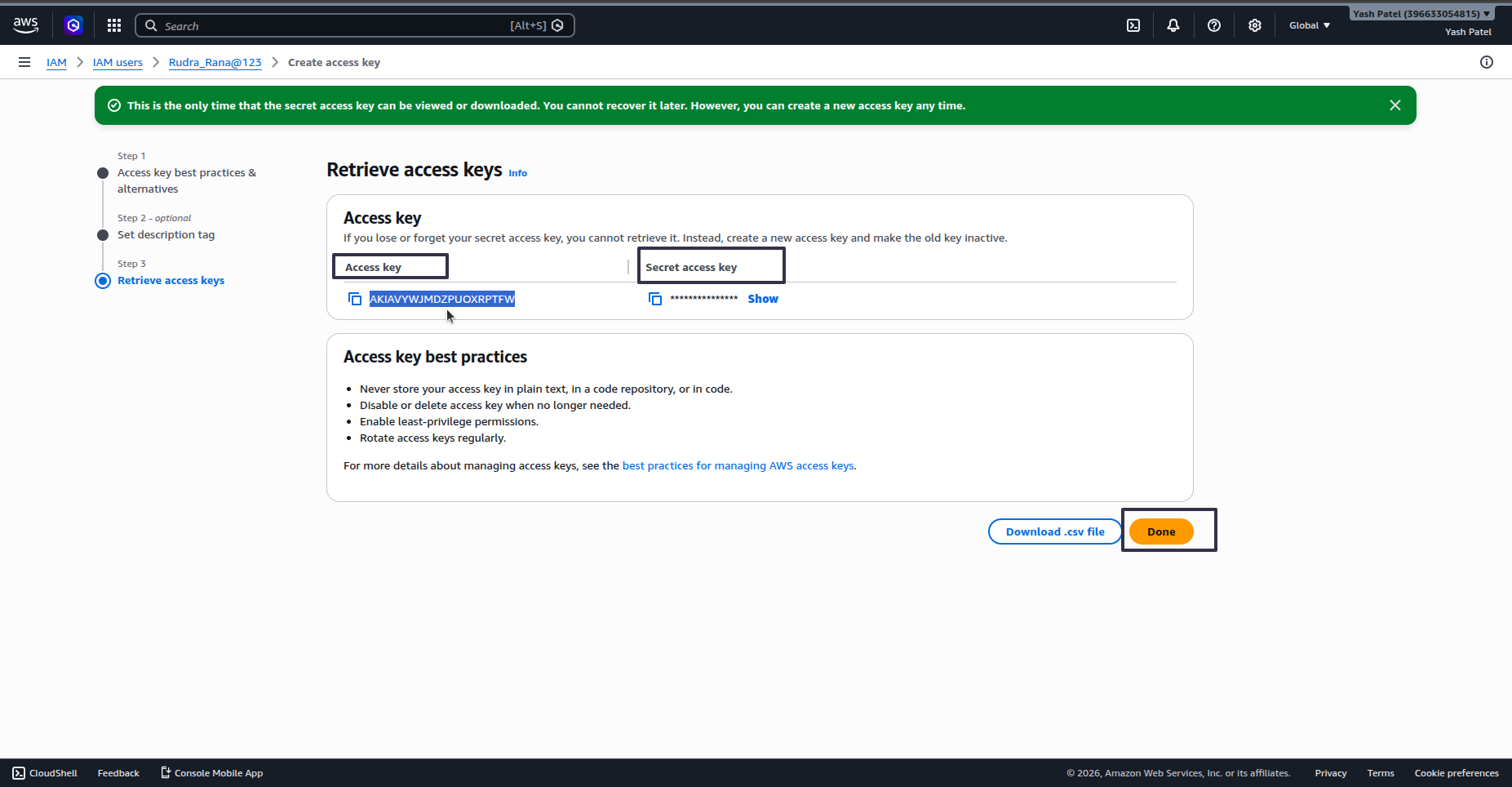

Copy and save the Access Key ID and Secret Access Key credentials.

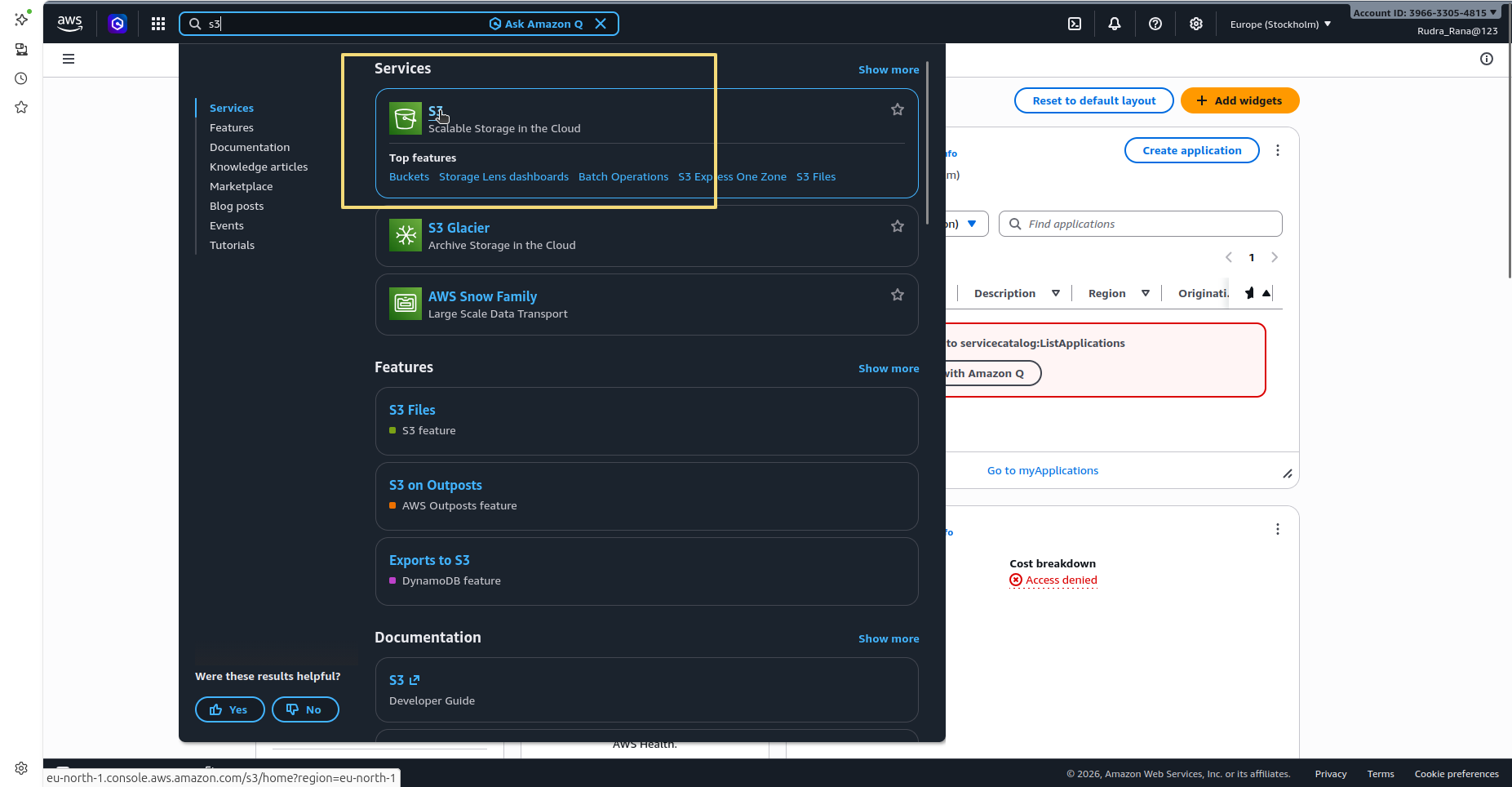

Locate and open the S3 service in AWS Management Console.

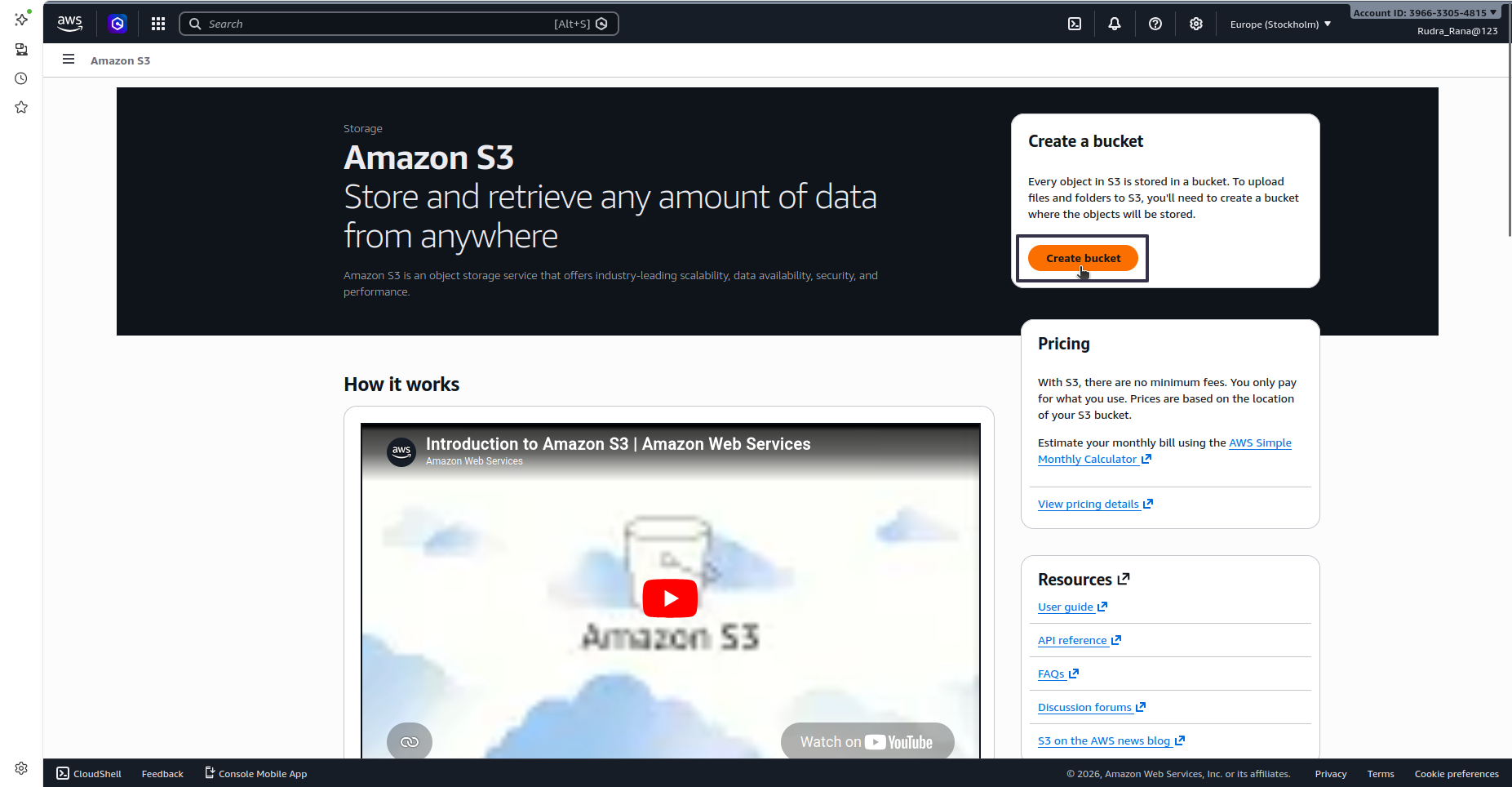

Click 'Create bucket' to set up a new storage location.
Choose a globally unique bucket name and select your target AWS region.
Set bucket ownership controls (ACLs disabled is standard).
Configure Block Public Access settings to secure bucket files.

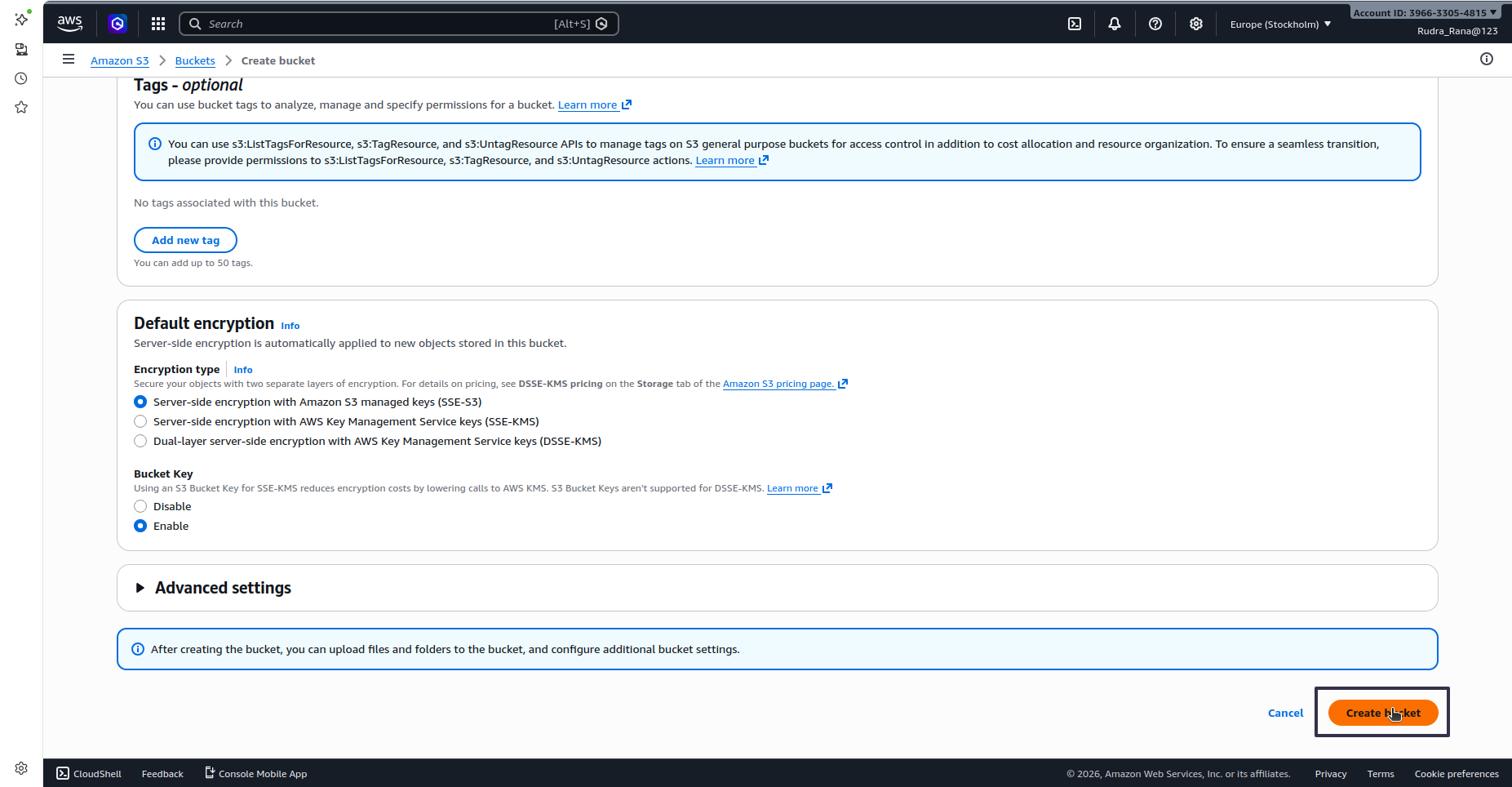

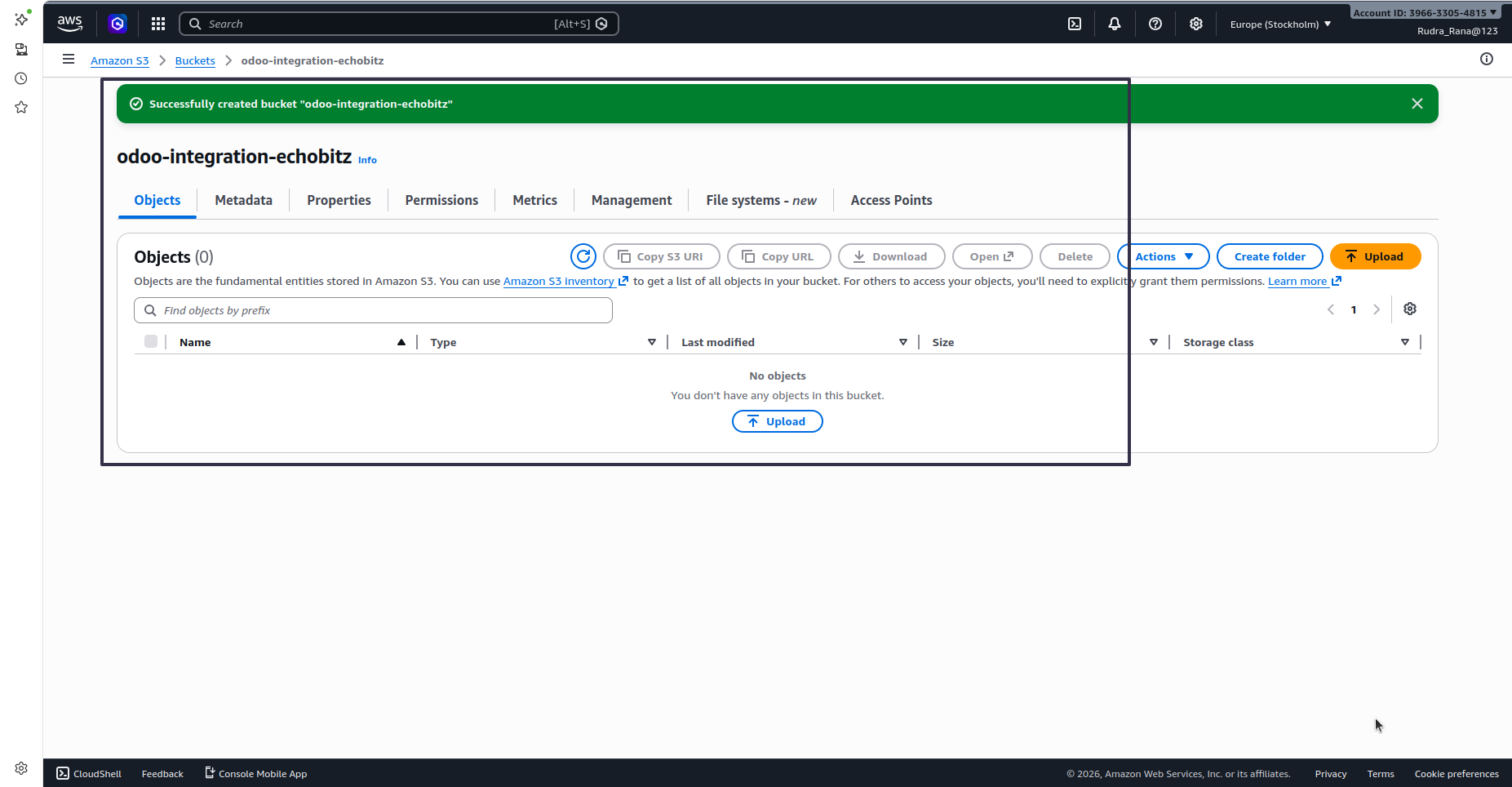

Verify bucket configurations and click 'Create bucket'.

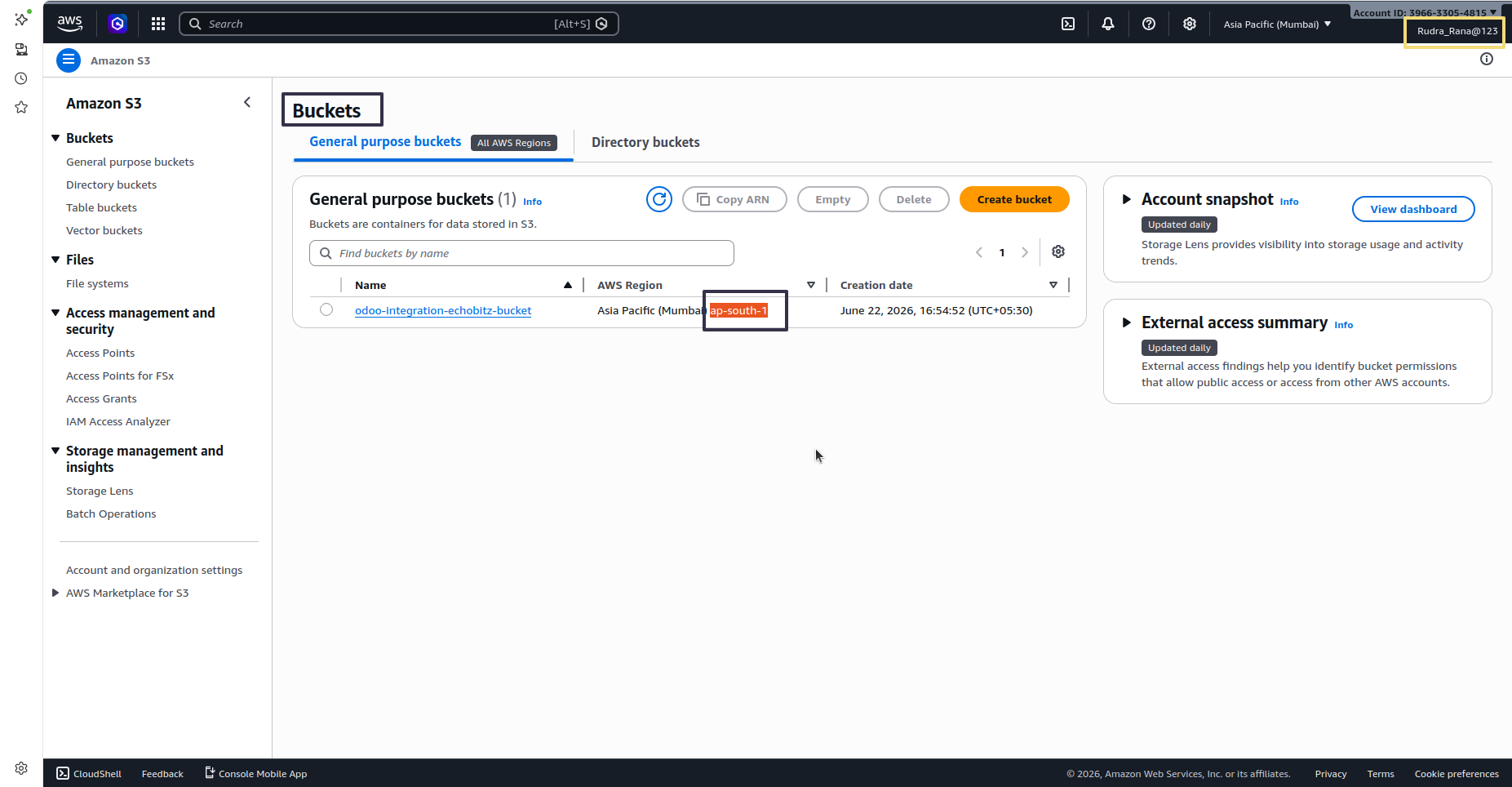

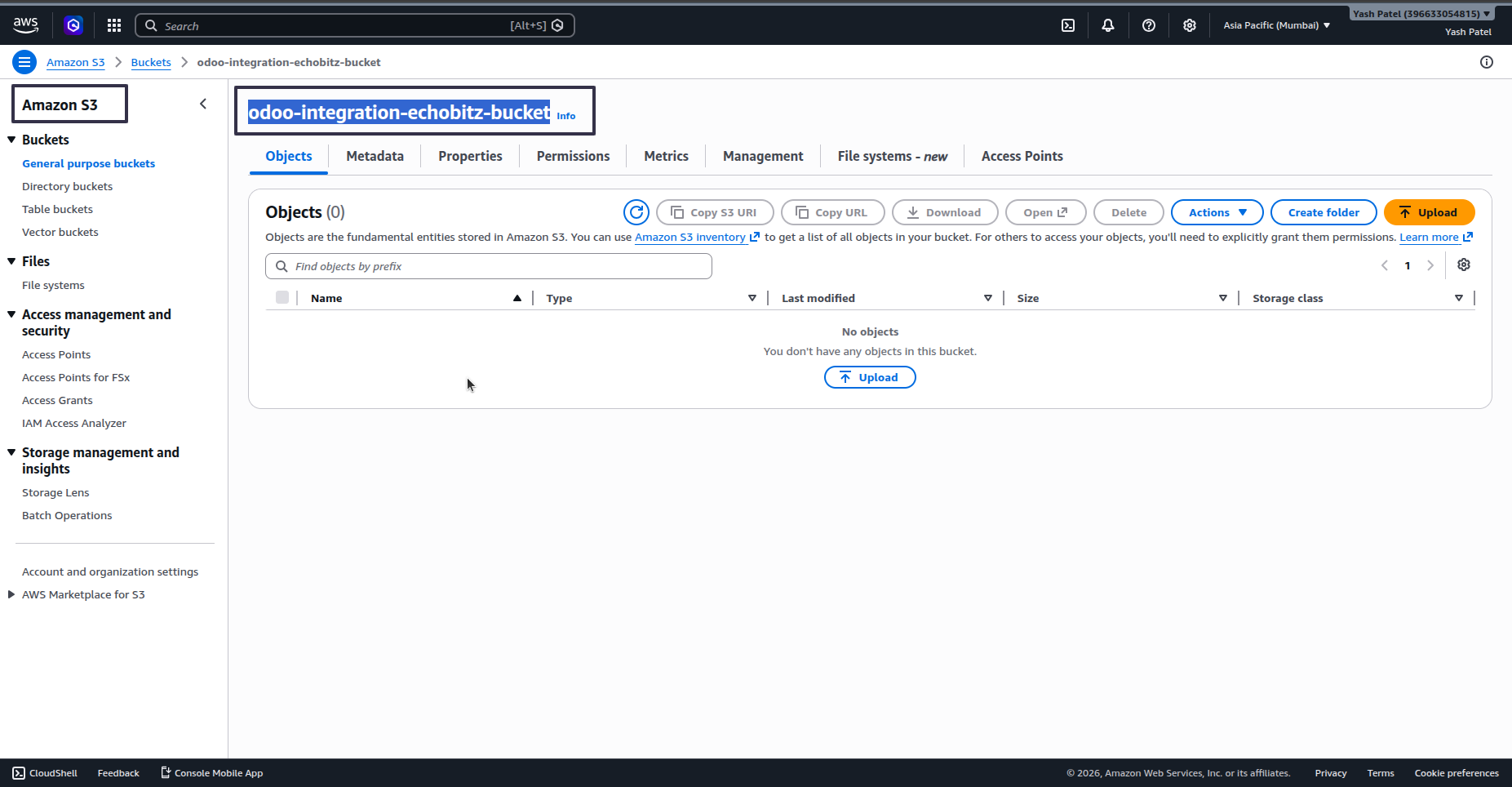

Note down the bucket name and region for Odoo configuration.
In Odoo, create a new Cloud Provider record for Amazon S3.
Select Provider Type as 'Amazon S3' and configure options.
Select Credential Mode as 'IAM Access Keys' under settings.

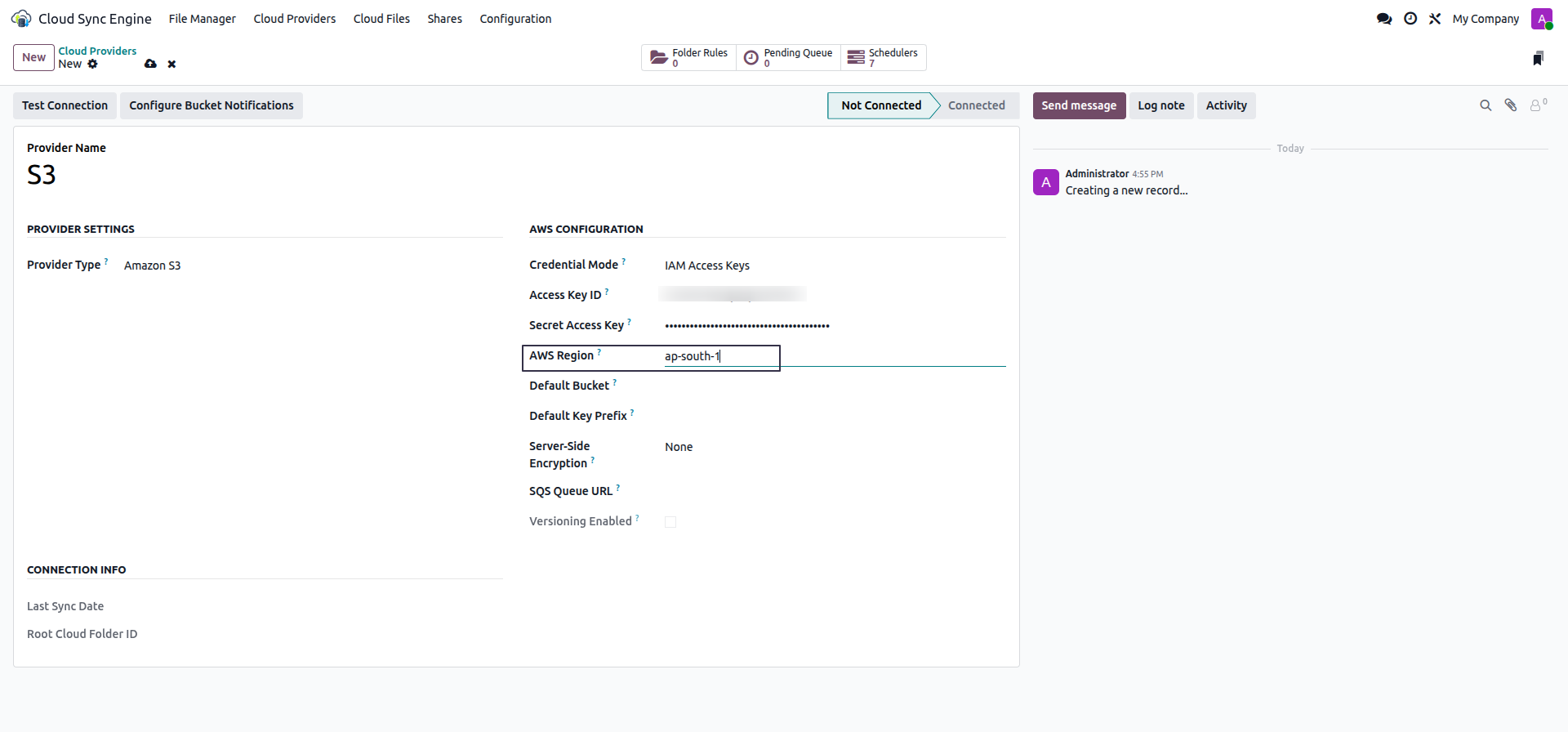

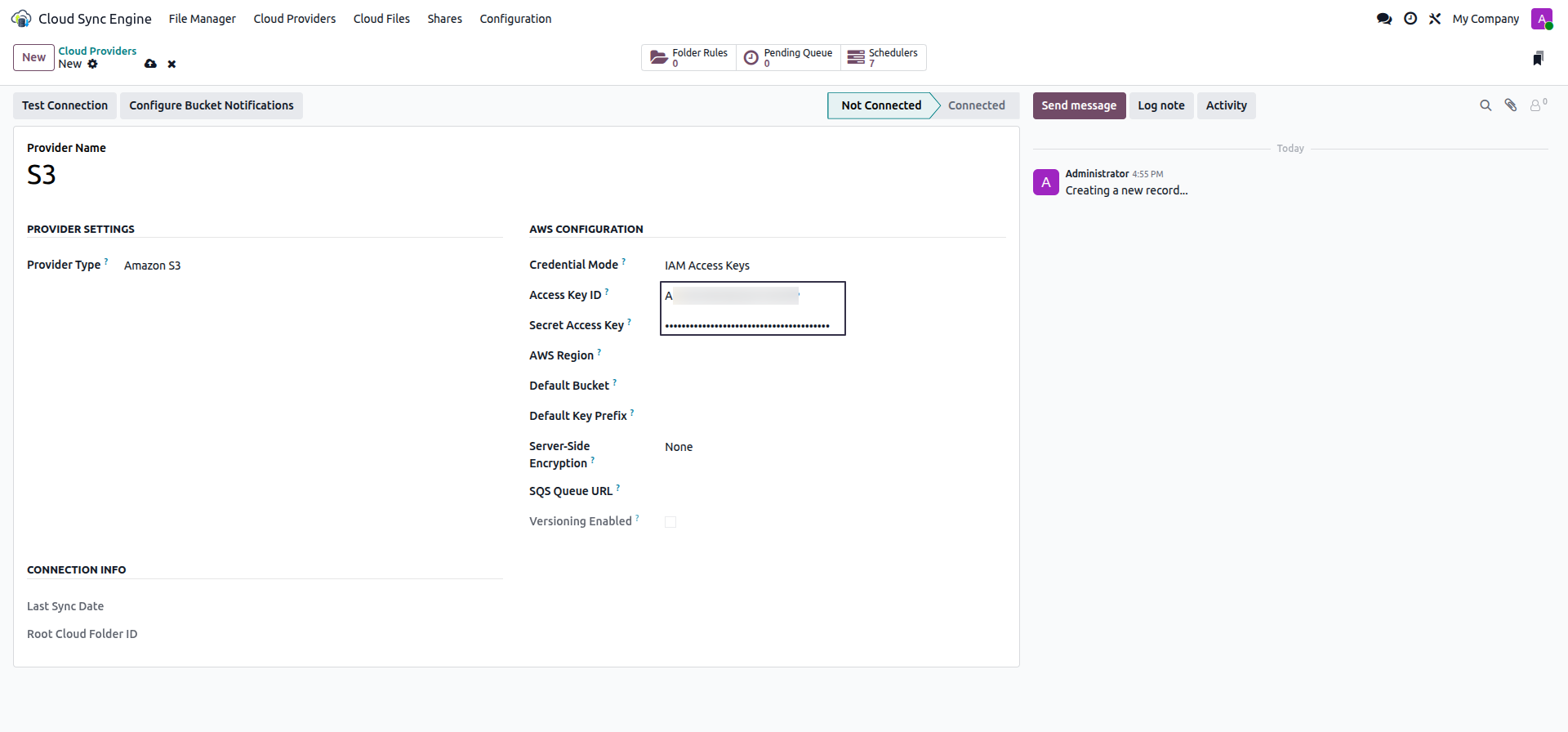

Enter S3 region, Access Key ID, and Secret Access Key.

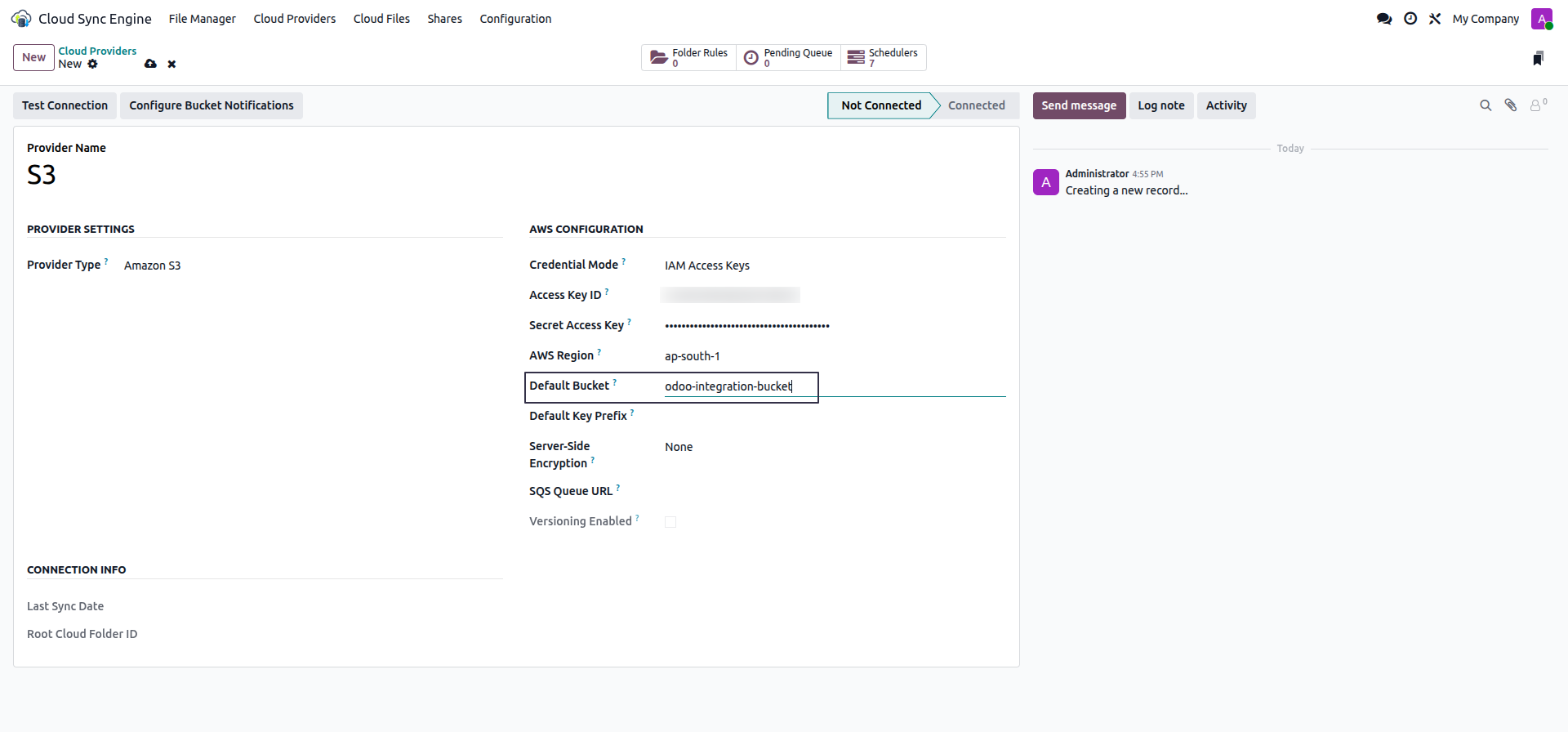

Provide the S3 default bucket name and optional folder prefix.
Click 'Test Connection' to run s3:PutObject / s3:GetObject API probes.

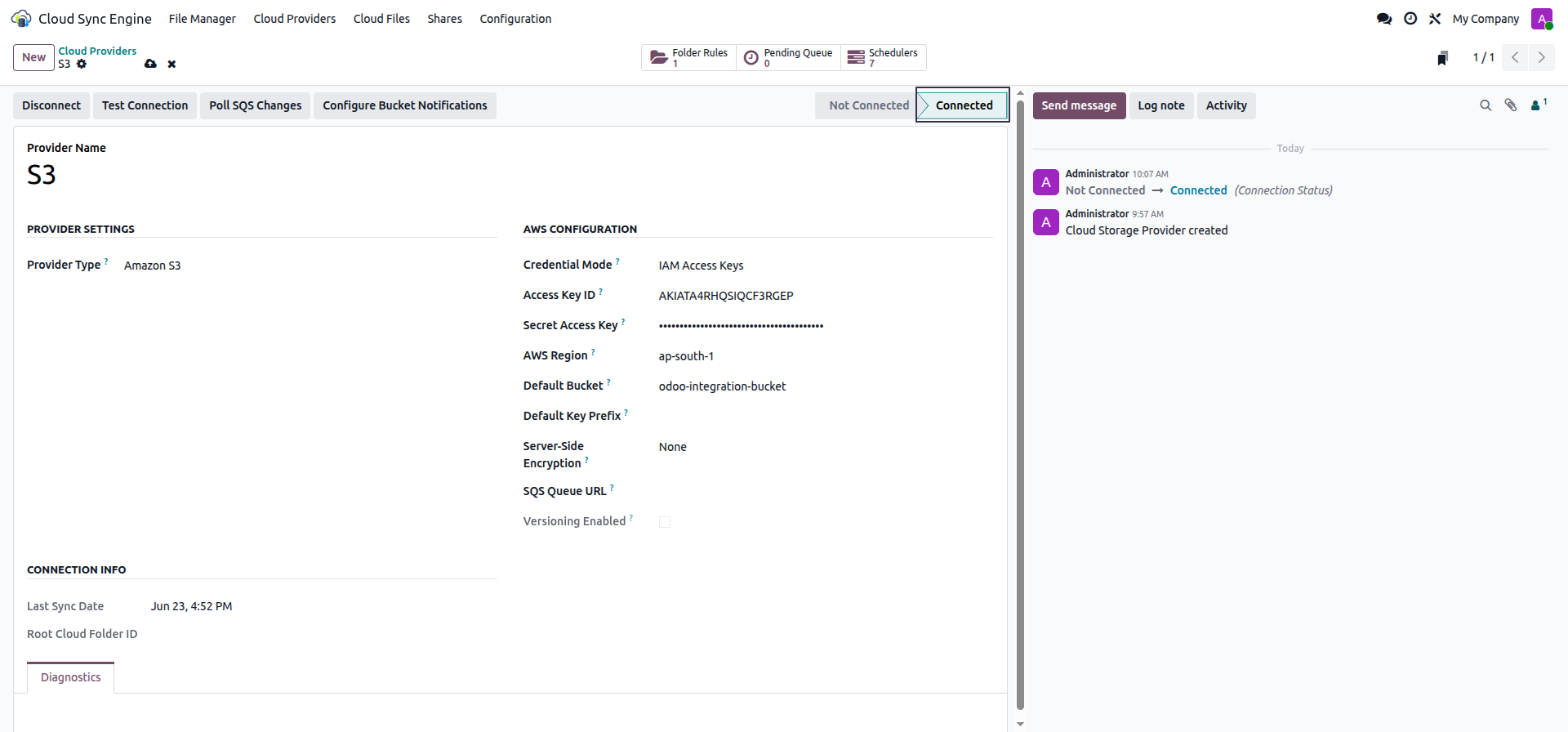

Verify connection success message and 'Connected' status update.
Create a Folder Rule for S3 to specify bucket / prefix mapping.
Define the Rule name, Model, and S3 folder path structure.
Open a record (e.g. Sales Order) and upload a new attachment.
Observe the file successfully syncs to Amazon S3 bucket path.
Verify the uploaded file appears under the bucket prefix in AWS S3.
Access Odoo's File Manager dashboard to browse S3 folder structure.
Inspect sync queue and log files to track execution success.
Frequently Asked Questions
Which cloud providers are included in this bundle?
This module includes full integration for Google Drive, Dropbox, Nextcloud, and Amazon S3. Each is loaded as a sub-module dependency.
Can I configure multiple accounts for the same provider?
Yes, you can configure multiple providers of the same type (e.g. multiple distinct S3 buckets or different Google Drive accounts) side by side.
Is file synchronization bidirectional?
Yes. Operations such as uploads, deletions, renames, and moves sync both ways according to the smart rules set up in the engine.
How are background sync failures handled?
The queue is transactional; any failed sync operations are logged with detailed diagnostic errors and retried up to three times automatically by the Odoo cron scheduler.
Releases
Version 19.0.1.0.0
- Initial release of Cloud Sync Engine for Odoo 19.
- Integrated Google Drive, Dropbox, Nextcloud, and Amazon S3 providers together with the sync engine base.
- All provider modules automatically bundle into a single, unified installable app.
Quick Connect
Scan and Connect with echoBitz
Book a meeting, start a WhatsApp conversation, or reach us by email from one simple visual card. It is the fastest way to move from curiosity to a real cloud sync discussion.
Meeting
WhatsApp
Email
Our Services
Odoo Integration
Seamlessly integrate Odoo with cloud platforms, connectors, and tools for better workflow.
Odoo Implementation
We plan, configure, and deploy Odoo tailored to your business processes.
Customization
Get modules and workflows customized to meet your exact needs in Odoo.
Community Apps
Access or develop robust community apps to enhance your Odoo functionality.
Development Outsourcing
Hire dedicated Odoo developers to build solutions efficiently and cost-effectively.
Support & Maintenance
Enjoy peace of mind with our reliable support, updates, and bug fixing services.
Built for multi-cloud Odoo operations
Multi-Cloud Integration bundles Google Drive, Dropbox, Nextcloud, and S3 to provide comprehensive storage optimization, file manager control, and secure sharing options.
Unified Multi-Cloud Sync
Discover More Solutions by echoBitz IT
Explore our other Odoo apps
Odoo Cloud Sync Engine Base
The core sync engine orchestrator with attachment queue processing, folder rules, and the OWL File Manager.
Odoo Google Drive Integration
Fully integrates Google Drive storage to synchronize Odoo documents, chatter attachments, and binary files.
Odoo Dropbox Integration
Synchronize Odoo attachments directly with Dropbox App folders using official API keys and OAuth2 authentication.
Odoo Nextcloud Integration
Integrate local or cloud Nextcloud servers using WebDAV connection protocols for private secure sync.
Odoo S3 Integration
Synchronize Odoo binary files and chatter attachments to Amazon S3 Buckets using IAM Access keys.
Advanced PDF Studio
Manipulate PDF documents directly inside Odoo: split pages, merge files, add watermarks, and reorder sheets.
Ready to streamline multi-cloud synchronization in Odoo?
Install Odoo Multi-Cloud Integration to connect Google Drive, Dropbox, Nextcloud, and S3 with a reliable queue, smart folder rules, and dedicated file management dashboard from one unified setup.
echoBitz IT Solution Pvt. Ltd. | Odoo Certified Partner | info@echobitzit.com | www.echobitzit.com
| Technical Name | eb_odoo_cloud_multi_cloud_integration |
|---|---|
| Version | 19.0.1.0.0 |
| Last Update Date | 2026-10-14 |
| Depends | basemailwebeb_odoo_cloud_google_driveeb_odoo_dropbox_integrationeb_odoo_nextcloud_integrationeb_odoo_s3_integration |
| Required Apps |
Cloud Sync Engine Base | File Manager | Two-Way Sync | Cloud Storage
Odoo Amazon S3 Integration | SQS Sync | File Manager
Odoo Dropbox Integration | Webhook Sync | File Manager
Odoo Google Drive Integration | Webhook Sync | File Manager
Odoo Nextcloud Integration | File Manager
Required for this module to work - already included
in the price above, and added to your cart automatically.
|
| License | OPL-1 |
| Category | Document Management |
